Page 1: Installation Instructions
Britain’s No.1 Range Cooker USER GUIDE & INSTALLATION INSTRUCTIONS Excel 110 Dual Fuel... - Page 2 We offer cookware to work perfectly with all fuel types manufactured by Rangemaster, including induction hobs. You can be assured of functionality with style, as well as the quality and meticulous attention to detail you expect from the pioneers of range cooking.
-
Page 3: Table Of Contents
Circuit Diagram Cooking Table 10. Technical Data Cleaning Your Cooker Connections Essential Information Dimensions Hotplate Burners Hotplate Ratings Ceramic Hotplate Hotplate Efficiency The Griddle Oven Data Glide-out Grill Control Panel and Doors Ovens Cleaning Table Excel 110 Dual Fuel U109010-17... -
Page 5: Before You Start
1. Before You Start... If you smell gas Your cooker should give you many years of trouble-free cooking if installed and operated correctly. It is important • DO NOT turn electric switches on or off. that you read this section before you start, particularly if you •... -
Page 6: Ceramic Warming Zone
NEVER leave a chip pan unattended. Always heat fat Accessible parts will become hot during use and will slowly, and watch as it heats. Deep fry pans should retain heat even after you have stopped cooking. be only one third full of fat. Filling the pan too full Keep babies and children away from the cooker and of fat can cause spill over when food is added. -
Page 7: Cooker Care
DO NOT place anything between the base of the pan Fig. 1.1 and the warming zone surface (e.g. asbestos mats, aluminium foil, wok cradle). Take care NOT to place metallic objects such as knives, forks, spoons and lids on the hob surface since they can get hot. -
Page 8: Cooker Overview

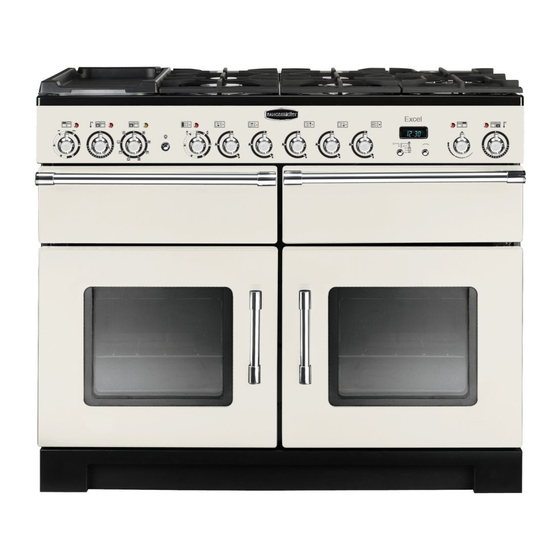

2. Cooker Overview DocNo.020-0006 - Overview - 100DF - Prof+ Fig. 2.1 The 110 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 Four hotplate burners with a wok burner and ceramic multi-zone hotplate Control panel Glide-out grill Multifunction oven Slow cook oven Fan oven... -
Page 9: Wok Burner
gas. Keep holding the knob pressed in to let the gas through Fig. 2.3 to the burner for about ten seconds. If, when you let go of the control knob, the burner goes out, then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 10: The Ceramic Hotplate
The Ceramic Hotplate Fig. 2.11 The hotplate area on the left-hand side is dual purpose. It can be used either as a ceramic hob to heat a pan in the usual way (Fig. 2.11) or it can be used to heat the supplied griddle. The rear area, marked with a ring is for cooking with a pan. -
Page 11: The Griddle
The Griddle Fig. 2.16 The griddle (Fig. 2.17) is designed to fit securely on the locating pins over the ceramic heating area (Fig. 2.18). Do not try to use it over one of the gas burners. It will not be securely held and you may damage the non-stick finish. -
Page 12: The Glide-Out Grill
The Glide-out Grill Fig. 2.21 Open the door and pull the grill pan carriage forward using the handle (Fig. 2.21). The grill has two elements that allow either the whole area of the pan to be heated or just the right-hand half. To heat the whole grill, turn the knob clockwise (Fig. - Page 13 food cooking until you have become accustomed to this Multifunction Oven Functions function. Rapid Response Conventional Oven (Top and Base Heat) The Rapid Response setting enables you to preheat the oven faster than normal. It uses the fan oven This function combines the heat from the top and element with additional heat from one of the base elements.
- Page 14 The Slow Cook Oven Fig. 2.24 The Slow Cook oven is intended for slow cooking items such as casseroles, joints of meat, etc. Your Slow Cook oven is capable of cooking a complete meal; for instance – casserole, rice pudding and jacket potatoes – or just warming the dishes (use only heat resistant dishes).
-
Page 15: The Clock
Slow Cook Oven Fig. 2.28 The graduated temperature scale on the fascia (Fig. 2.27) ArtNo.300-0005 2BC allows you to either cook slowly for several hours (A) or all minute minder setting day whilst you are out (B). For long scale cooking select the thicker end of the scale and for a shorter cooking time select the thinner end of it. - Page 16 To Stop the Multifunction Oven at a Specific ArtNo.301-0008 2BC Fig. 2.33 Time of Day Stopping the oven 2 You have set the required temperature and function mode for the Multifunction Oven and you would like the Multifunction Oven to automatically stop. TOP TIP Make a note of the current time so you do not forget.
-
Page 17: Key Lock
To Start and Stop the Multifunction Oven ArtNo.301-0010 2BC Fig. 2.36 The Multifunction Oven allows you to automatically start and Setting the cooking time stop by a combination of the length of the cooking time and the stop time. Giving you the flexibilty to cook casseroles etc while you are out. -
Page 18: Accessories
Accessories Fig. 2.43 Oven Shelves Shelf guard The oven shelves (Fig. 2.43) are retained when pulled forward but can be easily removed and refitted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig. 2.44). Lift up the front of the shelf so the back of the shelf will pass Front under the shelf stop and then pull the shelf forward... -
Page 19: Cooking Tips
3. Cooking Tips Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 20: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result. -
Page 21: Cleaning Your Cooker
5. Cleaning Your Cooker Essential Information Fig.5.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Do not mix different cleaning products –... -
Page 22: Ceramic Hotplate
Ceramic Hotplate Fig.5.5 Daily Care First of all, make sure that the heat indicator light is off and that the cooking surface is cool. Apply a small dab of ceramic cleaning cream in the centre of the area to be cleaned. Dampen a clean paper towel and work the cream onto the cooking surface. -
Page 23: Glide-Out Grill
Glide-out Grill Fig.5.6 The grill pan and trivet should be washed in hot soapy water. Alternatively, the grill pan can be washed in a dishwasher. After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush. -
Page 24: Control Panel And Doors
Control Panel and Doors Fig.5.11 Avoid using any abrasive cleaners, including cream cleaners. For best results, use a liquid detergent. The same cleaner can also be used on the doors. Alternatively, use a soft cloth wrung out in clean hot soapy water. You can use the same method for cleaning the control panel and knobs. -
Page 25: Cleaning Table
Cleaning Table Cleaners listed (Table 5.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 26: Troubleshooting
6. Troubleshooting Hotplate ignition or hotplate burners faulty An oven fan is noisy Is the power on? Is the clock illuminated? The note of the oven fan may change as the oven heats up – this is perfectly normal. If not, there maybe something wrong with the power supply. - Page 27 Oven not coming on Fig.6.1 Is the power on? Is the clock illuminated? If not, there may be something wrong with the power supply. Is the cooker supply on at the isolator switch? ArtNo.324-0005 Oven light bulb Has the time of day been set? Is the key symbol [ ...
-
Page 28: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 29: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Checking the parts: Location of Cooker The cooker may be installed in a kitchen/kitchen diner but 3 pan supports Wok cradle NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 30: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker Fig.7.1 Fig.7.1 and Fig.7.2 show the minimum recommended 75mm 75mm distance from the cooker to nearby surfaces. 650mm The cooker should not be placed on a base. The hotplate surround should be level with, or above, any adjacent work surface. -
Page 31: Fitting The Stability Bracket Or Chain
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Lowering the Two Rear Rollers Fig.7.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig.7.5). -
Page 32: Conversion To Another Gas
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Conversion to Another Gas Fig.7.10 If the appliance is to be converted to another gas do the conversion at this point. See the conversion section of these Gas inlet instructions. -
Page 33: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Pressure Testing Current Operated Earth Leakage Breakers The gas pressure can be measured at one of the hotplate The combined use of your induction cooker and other burner injectors (not a wok burner). -
Page 34: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 8. Conversion to LP Gas Check the ‘Technical Data’ section at the back of the book Fig.8.1 that the hob is convertible to the gas you want to use. -
Page 35: Pressure Testing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Pressure Testing Connect the appliance to the gas supply. The gas pressure can be measured at one of the hotplate injectors (not a wok burner). -
Page 36: Circuit Diagram
9. Circuit Diagram P095199 1.1kW 1.1kW P095199 P038434 ArtNo.081-0011 - 110DF - Circuit diagram - Excel br br br br br b b b The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour... -
Page 37: Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Excel 110 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 1092 mm Overall depth 607 mm excluding handles, 646 mm including handles... -
Page 38: Hotplate Efficiency
Hotplate Efficiency Brand Falcon Model Identification Excel Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Rapide / Large Burner (EE gas burner) Rapide / Large Burner (EE gas burner) Wok (EE gas burner) -
Page 39: Oven Data
Oven Data Brand Rangemaster Model identification Excel Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle 1.08... - Page 40 Notes...
- Page 41 Notes...
- Page 42 Notes...
- Page 43 0800 804 6261 or depending on your mobile network tariff you can For a competitive quote and to arrange for a Rangemaster approved call free on 0370 789 5107. engineer to attend, call Consumer Services on: 0800 804 6261 or...
- Page 44 Registered in England and Wales. Registration No. 354715 Registered Office: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place peri- odically. Whilst every effort is made to produce up-to-date literature, this booklet should not be regarded as an infallible guide to current...
