Technical data

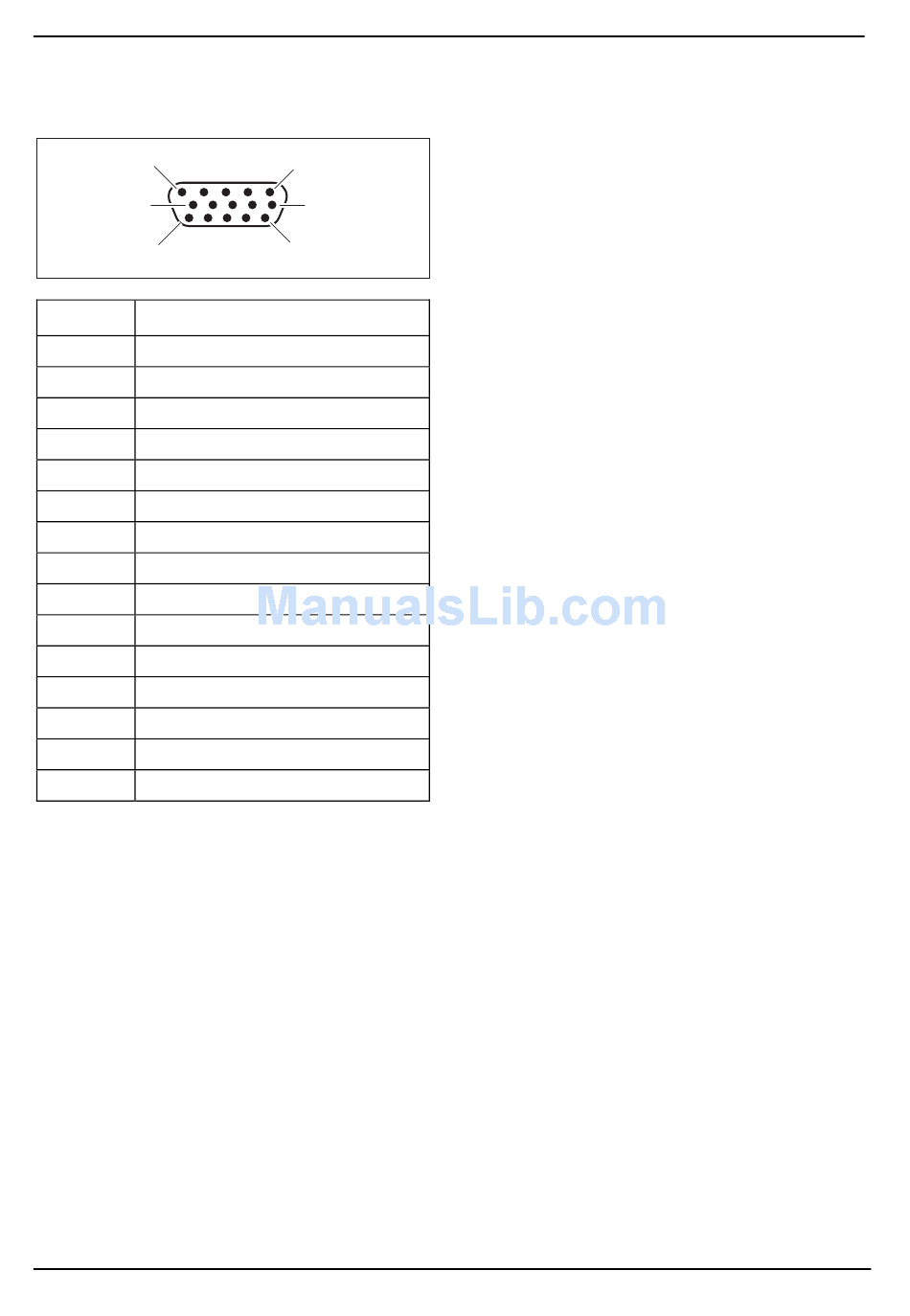

SUB D port

5
10
15
Pin
Meaning
1
Video input red
2
Video input green
3
Video input blue
4
Ground
5
Ground
6
Video ground red
7
Video ground green
8
Video ground blue
9
+5V (DDC)
10
Sync. ground
11
Ground
12
DDC Data
13
H. sync
14
V. sync
15
DDC Clock
18
1
6
11
