Sub D Port - Fujitsu P24W-6 LED Operating Manual

Technical specification

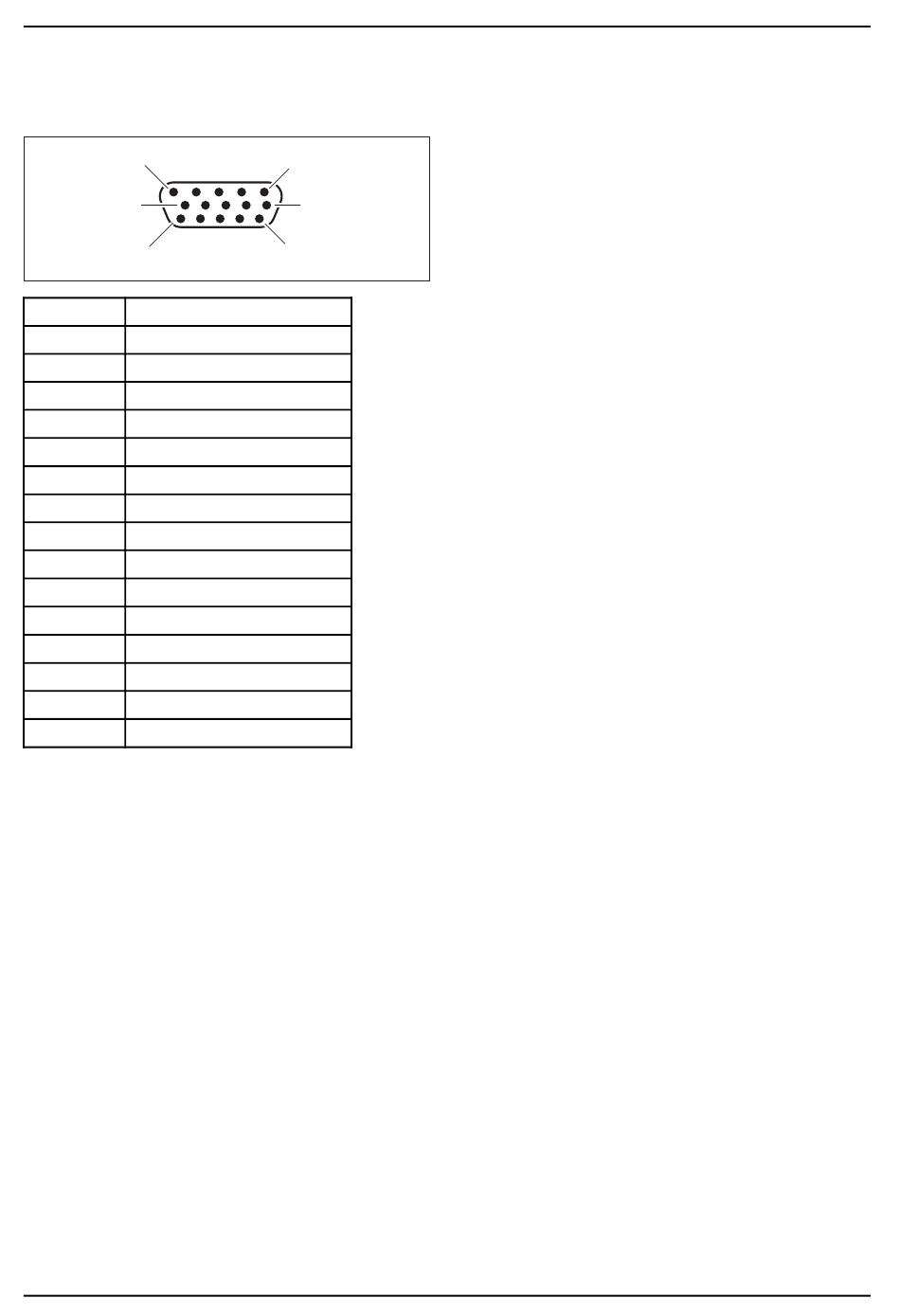

SUB D port

5
10
15
Pin Meaning
1 Video input red
2 Video input green
3 Video input blue
4 Ground
5
Ground
6 Video ground red
7
Video ground green
8 Video ground blue
9 +5 V (DDC)
10 Sync. ground
11 Ground
12 DDC Data
13 H. sync
14 V. sync
15 DDC Clock
34
1
6
11
