Page 1

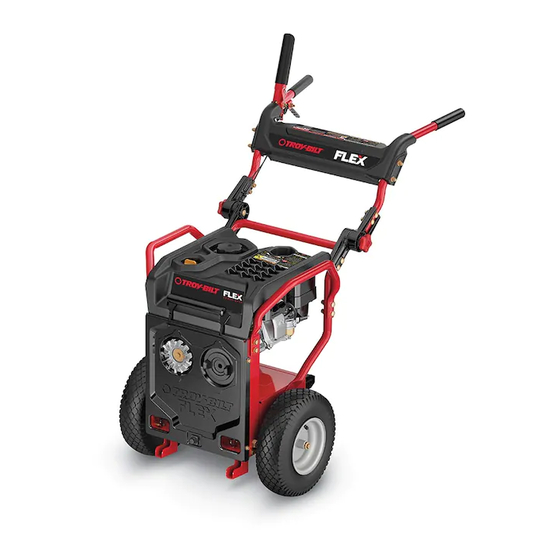

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-10247...
Visit us on the web at www.troybilt.com See How-to Maintenance and Parts Installation Videos at www.troybilt.com/tutorials ◊ Call a Customer Support Representative at (800) 828-5500 or (330) 558-7220 ◊ Write to Troy-Bilt LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019...
Important Safe Operation Practices WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
Page 4
Slope Operation Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or Slopes are a major factor related to slip and fall accidents, which obstruction first look down and behind to avoid tripping can result in severe injury.
Page 5
Service listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper Safe Handling Of Gasoline: performance and compromise safety!” Mower blades are sharp and can cut. Wrap the blade or To avoid personal injury or property damage use extreme wear gloves, and use extra caution when servicing them.
Spark Arrestor If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the WARNING: above is required by law (Section 4442 of the California Public This machine is equipped with an Resources Code).
Assembly & Set-Up NOTE: All references in this manual to the left or right side of the FLEX™ Power Base is from the operating position only. Exceptions, if any, will be specified. IMPORTANT: This unit is shipped WITHOUT the engine full of oil.
Page 9
Placing Upper Handle Into the “Stowed” Position WARNING! DO NOT attempt to fold the handle down while the engine is hot! Loosen the star knobs (A) as shown in Figure 3-4, and pivot the upper handle assembly downwards (B) until it reaches the bottom of it’s pivot motion.
Page 10
Fuel Recommendations CAUTION: Operating the engine with E15 or E85 fuel, an oil/gasoline mixture, dirty gasoline, or gasoline over 30 days old that has not been stabilized using a fuel additive, may result in damage to your engine’s carburetor. Subsequent damage would not be covered under the manufacturer’s warranty.
Page 11
Replace the fuel cap and tighten securely. Wipe up spilled fuel before starting engine. If fuel is spilled DO NOT start engine. Move machine away from area of spillage. Avoid creating any source of ignition until fuel vapors are gone. Figure 3-7 Tire Pressure WARNING:...
Controls & Features On/Off Switch Attachment Control Safety Lock Attachment Control Lever Handle Adjustment Knob Drive Control Lever Cold Weather/Warm Weather Control Fuel Cap Oil Fill Cap Recoil Starter Primer Kickstand Choke Figure 4-1 Attachment Control Lever Kickstand The attachment control lever is for deploying power to the The kickstand is utilized to hold the FLEX™...
Engine Controls Attachment Control Safety Lock Primer Bulb The attachment control safety lock is a red button beside the lever that must be pressed in order to actuate the attachment Pressing the primer bulb forces fuel directly into the engine’s control lever.
Troy-bilt Service Dealer. To avoid serious burn injuries or damage to your engine, DO Insert key into slot. Make sure it snaps into place. Do not NOT attempt to start or troubleshoot this engine in attempt to turn the key.
Page 15
Figure 5-2 Figure 5-4 Be sure fuel valve, if present (see the Engine Operator’s NOTE: DO NOT use the primer bulb to restart a warm Manual instructions), is open. engine after a short shutdown. Doing so will flood the engine and may result in equipment malfunction. Set the choke control to “FULL CHOKE”...
Stopping The Engine If engine does not start after following steps 1 through 11, contact your Authorized Troy-bilt Service Dealer. DO NOT If operating the engine in the snow or rain, run the engine attempt to troubleshoot this engine in any other way.
Page 17
Connecting an Attachment Note: This FLEX™ Power Base is designed to couple with a series of attachments that will be powered by this unit. The coupling of the various attachments are engineered with precise tolerances. It is imperative that the operator keeps the coupling mechanisms free from dirt and debris.
Page 18
Propelling the Power Base Forward To propel the power base forward, simply pull up on the Drive Control Lever. To stop, simply release the lever. Disconnecting an Attachment Fully stop the power base engine before attempting to perform any maintenance steps or uncoupling of the attachment. WARNING! Always turn off the FLEX™...
Maintenance Maintenance Schedule Each Use or Every Season Every Season Every Season First 5 Hours Service Dates Every 5 Hrs. or 25 Hours or 50 Hours or 100 Hours Clean Engine Cooling Fins Check Engine Oil Level Change Engine Oil Check Air Cleaner Service Air Cleaner Check Spark Plug...
Changing Oil To avoid engine damage, it is important to: • Check oil level before each use and every 5 operating hours when the engine is warm. • Change the oil after the first 5 operating hours and every 50 operating hours thereafter. Engine should still be warm but NOT hot from recent use.
Air Filter WARNING! If the engine has been running, the muffler, engine head and spark plug will be very hot. To service the air filter, follow the instructions below: Be careful not to touch any of these components until they have cooled. Note: Paper filters cannot be cleaned and must be replaced once a year or every 100 operating hours;...
If you think the carburetor needs adjusting, see your nearest Authorized Troy-bilt Service Dealer. Engine performance should NOT be affected at altitudes up to 7,000 feet (2,134 meters). For operation at higher elevations, contact your Authorized Troy-bilt Service Dealer. Engine Speed...
Page 23
Removing Snow from the Engine In Winter Months NOTE: If engine fuel stored in the gas tank and/or an approved gas container is to be unused without gasoline stabilizer for more After each use, remove snow from the following areas: than 15-30 days, prepare it for short-term/seasonal storage.
Page 24
Oil Cylinder Bore Unplug the wiring harness from the power base front cover by wiggling and pulling the harness connectors off of the WARNING! When lubricating cylinder bore, fuel safety switch on the power base front cover. See the inset may spray from the spark plug hole.
Page 25
Off-Season Storage Transporting the FLEX™ Power Base WARNING! CAUTION: Loading this unit into a vehicle for Failure to use a fuel stabilizing additive transporting requires a second person to help lift or completely run the engine until it’s out of fuel the machine.
Troubleshooting Problem Cause Remedy Engine Fails to start 1. Engine flooded 1. Wait at least 10 minutes before starting 2. Spark plug wire disconnected 2. Connect wire to spark plug 3. Fuel tank empty or stale fuel 3. Fill tank with clean, fresh gasoline 4.
Replacement Parts Component Part Number and Description 951-10292 Spark Plug 951-10794 Air Cleaner 951-12535 Fuel Cap Assembly 731-05632 Key (Snow Throwers) 954-05070 Drive Belt 634-05155 Wheel Assembly/Tire Phone (800) 828-5500 to order replacement parts or a complete Parts Manual (have your full model number and serial number ready). Parts Manual downloads are also available free of charge at www.troybilt.com.
Attachments & Accessories The following attachments and accessories are compatible for the Troy-bilt FLEX™ Power Base. See the retailer from which you purchased your machine from, an authorized Troy-bilt Service Dealer or phone (800) 828-5500 for information regarding price and availability.
Page 30
FEDERAL and/or CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS MTD Consumer Group Inc, the United States Environmental Protection Agency (EPA), and for those products certified for sale in the state of California, the California Air Resources Board (CARB) are pleased to explain the emission control system (ECS) warranty on your 2014- 2015 small off-road spark-ignited engine and equipment (outdoor equipment).
Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claim. MTD Consumer Group Inc will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
Page 32
This limited product warranty is provided by Troy-Bilt THE ABOVE LIMITATION MAY NOT APPLY TO YOU.) LLC and is the only product warranty provided by Troy-Bilt LLC for the FLEX THE PROVISIONS AS SET FORTH HEREIN PROVIDE THE SOLE AND Power Base.
Page 33
Vea videos instructivos sobre el mantenimiento y la instalación de piezas en www.troybilt.com/tutorials ◊ Llame a un representante de Asistencia al Cliente al (800) 828-5500 ó (330) 558-7220 ◊ Escriba a Troy-Bilt LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019...
Importantes medidas de seguridad ADVERTENCIA: La presencia de este símbolo indica que se trata de instrucciones de seguridad importantes que se deben respetar para evitar poner en peligro su seguridad personal y/o material y la de otras personas. Lea y cumpla todas las instrucciones de este manual antes de intentar operar esta máquina.
Page 35
Funcionamiento en pendiente Retroceda de la cortadora hasta estirar completamente los brazos. Las pendientes son uno de los principales factores asociados a Asegúrese que tiene buen equilibrio y está los accidentes por derrapes y caídas y pueden ocasionar lesiones bien parado. graves.
Page 36
Servicio fabricante (OEM) listado en este manual. “El uso de repuestos que no cumplen con las especificaciones del equipo original puede resultar en rendimiento inadecuado y puede Manejo seguro de la gasolina: comprometer la seguridad.” Para evitar lesiones personales o daños materiales tenga Las cuchillas de las cortadoras son muy filosas y podría mucho cuidado al manipular la gasolina.
Page 37
Amortiguador de chispas Si se utiliza un amortiguador de chispas el operador lo debe mantener en condiciones de uso adecuadas. En el Estado de ADVERTENCIA: California las medidas anteriormente mencionadas son exigidas Esta máquina está equipada con un por ley (Artículo 4442 del Código de Recursos Públicos de motor de combustión interna y no debe ser utilizada California).
Page 38
2 — i ección mportanteS medidaS de Seguridad...
Montaje y Configuración NOTA: Las referencias que contiene este manual sobre los lados derecho o izquierdo de la base de potencia FLEX™ se hacen observando la misma desde la posición de operación. Las excepciones, si las hubiere, serán especificadas. IMPORTANTE: Esta unidad se envía con el motor SIN aceite.
Page 40
Procedimiento para colocar la manija superior en la posición “Stowed” (guardada) ¡ADVERTENCIA! ¡NO intente plegar la manija hacia abajo mientras el motor esté caliente! Afloje las perillas en estrella (A) como se indica en la Figura 3-4 y gire el conjunto de la manija superior hacia arriba (B) hasta que llegue a la parte más baja de su movimiento de giro.
Page 41
Recomendaciones sobre el combustible PRECAUCIÓN: Si se opera el motor con combustible E15 o E85, una mezcla de aceite/ gasolina, gasolina sucia o gasolina con más de 30 días de antigüedad que no se haya estabilizado con un aditivo de combustible, se puede dañar el carburador del motor.
Page 42
4. Use un recipiente rojo para GASOLINA aprobado y agregue el combustible lentamente, tomando la precaución de evitar derrames. Cargue el depósito hasta que el combustible llegue a la base del cuello de llenado para dejar espacio para la expansión del combustible. Tenga cuidado de no llenar en exceso.
Controles y Características Interruptor encendido / apagado Bloqueo de seguridad del control del accesorio Palanca de control del accesorio Perilla de ajuste de las manijas Palanca de control de transmisión Control para climas Fríos/cálidos Tapa de combustible Tapón de llenado de aceite Arrancador de retroceso...
Page 44
Controles del motor Bloqueo de seguridad del control del accesorio Bulbo del cebador El bloqueo de seguridad del control del accesorio es un botón rojo que está junto a la palanca y que se debe oprimir para Cuando se oprime el bulbo del cebador, se envía combustible activar la palanca de control del accesorio.
Funcionamiento Control previo al funcionamiento • NO opere el motor ni tire de la cuerda de arranque si se extrajo la bujía. Se puede salpicar combustible a través del orificio de la bujía y IMPORTANTE: El motor se envía sin gasolina en el motor. puede encenderse.
Page 46
Figura 5-2 Figura 5-4 Compruebe que la válvula de paso del combustible NOTA: NO utilice el bulbo del cebador para reiniciar un motor (consulte las instrucciones del Manual del operador del caliente tras una detención breve. Si lo hace ahogará el motor equipo) esté...
Page 47
• Coloque el control del cebador por un momento Detención del motor y almacenamiento de corto plazo nuevamente en la posición “FULL CHOKE (cebador al máximo)”. Detenga el motor de acuerdo con el Manual del operador del equipo. • A continuación, mueva el control del cebador hasta la posición “1/2 CHOKE (1/2 cebador)”...
Page 48
Conexión de un accesorio Nota: Esta base de potencia FLEX™ está diseñada para acoplarse con una serie de accesorios que serán activados por esta unidad. El acoplamiento de los diversos accesorios está diseñado con tolerancias precisas. Resulta imperativo que el operador mantenga los mecanismos de acoplamiento libres de suciedad y residuos.
Page 49
Procedimiento para desconectar un accesorio Pare completamente el motor de la base de potencia antes de intentar realizar los pasos de mantenimiento o de desacoplar el accesorio ¡ADVERTENCIA! Apague siempre el motor de la base de potencia FLEX™ y saque la llave antes de intentar reemplazar los pasadores de cuchilla o de desacoplar la base de potencia del accesorio.
Mantenimiento Programa de mantenimiento Cada Cada Cada Primeras Cada uso o Fechas de temporada o temporada o temporada o 5 horas cada 5 horas. Mantenimiento cada 25 horas cada 50 horas cada 100 horas Limpie las aletas de refrigeración del motor Revise el nivel de aceite del motor.
Page 51
Control y cambio del aceite Para evitar que el motor resulte dañado, es importante que: • Controle el nivel de aceite antes de cada uso y cada 5 horas de funcionamiento cuando el motor está tibio. • Cambie el aceite después de las 5 primeras horas de operación y cada 50 horas de operación a partir de ese momento.
Page 52
Filtro de aire ¡ADVERTENCIA! Si el motor estuvo en marcha, el silenciador, la culata del motor y la bujía estarán Para el mantenimiento o la reparación del filtro de aire, siga las muy calientes. Tenga cuidado de no tocar ninguno instrucciones que aparecen a continuación.
Page 53
Troy-bilt. Carburador Si considera que el carburador necesita ajuste, consulte al Distribuidor de servicio de Troy-bilt autorizado. El desempeño del motor NO debe verse afectado a altitudes de hasta 7,000 pies (2,134 m). Para el funcionamiento a mayores altitudes, comuníquese con el Distribuidor de servicio Troy-bilt autorizado.
Page 54
Procedimiento para eliminar la nieve del motor en NOTA: Si el combustible del motor almacenado en el tanque de gasolina y/o en un recipiente para gasolina aprobado, sin los meses de invierno un producto estabilizador para gasolina, no se usará durante más de 15 a 30 días, debe prepararlo para el almacenamiento a Después de cada uso, extraiga la nieve de las siguientes áreas: corto plazo/estacional.
Page 55
Diámetro interior del cilindro de aceite Desenchufe el arnés de cableado de la cubierta frontal de la base de potencia para lo que debe mover y tirar de ¡ADVERTENCIA! Cuando lubrique el diámetro los conectores del arnés para sacarlos del interruptor de seguridad de la cubierta frontal de la base de potencia.
Page 56
Almacenamiento fuera de temporada Transporte de la base de potencia FLEX™ ¡ADVERTENCIA! PRECAUCIÓN: Para cargar esta unidad en un Si no se utiliza un aditivo estabilizador vehículo a fin de transportarla se requiere una segunda del combustible o si no se hace funcionar el motor hasta persona que ayude a elevar la máquina.
Solución de Problemas Problema Causa Solución El motor no arranca 1. Motor ahogado 1. Aguarde al menos diez minutos antes de encender el motor 2. Se ha desconectado el cable de la bujía 2. Conecte el cable a la bujía 3.
Repuestos Componente Número de pieza y Descripción 951-10292 Bujía de encendido 951-10794 Purificador de aire 951-12535 Conjunto del tapón de combustible 731-05632 Llave (máquinas quitanieve) 954-05070 Correa de la transmisión 634-05155 Conjunto de la rueda/Neumático Llame al (800) 828-5500 para solicitar repuestos o un Manual de Piezas completo (tenga a mano el número de modelo y número de serie completo).
Aditamentos y accesorios Los siguientes aditamentos y accesorios son compatibles con la base de potencia FLEX™ Troy-bilt. Consulte al minorista a quien le adquirió su máquina, a un distribuidor autorizado de mantenimiento de Troy-bilt o llame al teléfono (800) 828-5500 para obtener información sobre precios y disponibilidad.
Page 62
DECLARACIÓN FEDERAL y/o DE CALIFORNIA SOBRE GARANTÍAS EN EL CONTROL DE EMISIONES SUS DERECHOS Y OBLIGACIONES EN CUANTO A LA GARANTÍA MTD Consumer Group Inc, la Agencia de Protección Medioambiental de los Estados Unidos (EPA), y para aquellos productos certificados para su venta en el estado de California, el Departamento de los Recursos del Aire de California (CARB) se complacen en explicar la garantía que cubre al sistema de control (ECS) de emisiones de su equipo y motor (equipos de exteriores) de encendido por chispa para todo terreno, pequeño, de exteriores del año 2014-2015.
MTD Consumer Group Inc es responsable por daños causados a otros componentes de motores o equipos derivados de la falla bajo garantía de cualquier pieza garantizada. Durante la totalidad del período de garantía del motor y equipo para todo terreno arriba mencionado, MTD Consumer Group Inc mantendrá...
Page 64
Web en www.troybilt.com. La presente garantía limitada INCLUIDOS SIN LIMITACIÓN, LOS GASTOS DE TRANSPORTE O LOS GASTOS sobre un producto es otorgada por Troy-Bilt LLC y es la única garantía de producto RELACIONADOS, NI DE LOS GASTOS DE ARRENDAMIENTO PARA REEMPLAZAR que otorga Troy-Bilt LLC para la Base de Potencia FLEX.
