Read and Save These Instructions
All Hoods Must Be Installed By A Qualified Installer
INSTALLATION INSTRUCTIONS

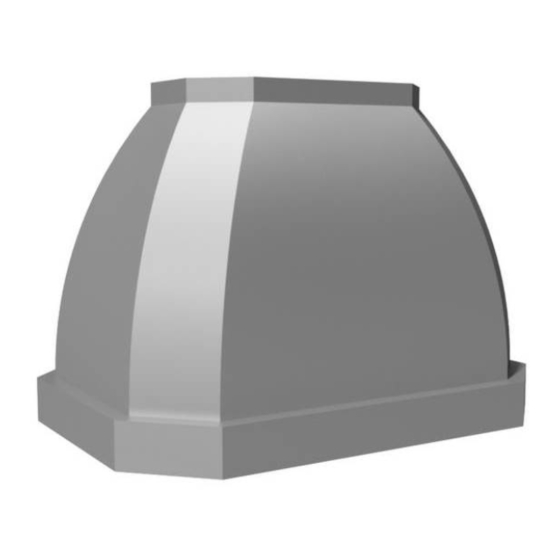

JCIH/C1 ISLAND RANGE HOOD
Read All Instructions Thoroughly Before Beginning Installation
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-
rated construction. Switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally
during installation.
B. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
C. Ducted fans must always be vented to the outdoors.
D. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting. Follow the heating equipment manufacturer's guideline and
safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and local code authorities.
E. ASHRAE residential ventilation standard 62.2 limits exhaust fans (total) to
a maximum of 15 CFM per 100 square feet of occupiable space, unless a
back drafting test is performed or make-up air is provided. Consult a local
HVAC engineer for make-up air evaluation.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL
JCIH/C1 0715A
DUCTWORK
Page 1
U L
C
US
R
Advertisement
Table of Contents
Related Manuals for Vent-a-Hood JCIH/C1
Summary of Contents for Vent-a-Hood JCIH/C1
-
Page 1: Read And Save These Instructions
Read and Save These Instructions All Hoods Must Be Installed By A Qualified Installer INSTALLATION INSTRUCTIONS JCIH/C1 ISLAND RANGE HOOD Read All Instructions Thoroughly Before Beginning Installation WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. - Page 2 • A wall louver or roof jack is required for each duct run. • Every wall louver or roof jack must include a gravity damper to prevent back drafts. • Do not use screen wire or spring-loaded doors on wall louvers or roof jacks. • Do not terminate venting into an attic or chimney. Smooth Duct Smooth Gradual Turn Sharp Angled Turns Flexible Duct JCIH/C1 0715A Page 2...
- Page 3 1”. This will allow the transition to engage 1” inside of the duct. Consult the connection diagrams (on next page) for further details on exhaust outlet placement. Use duct tape to seal all joints. A complete listing of available Vent-A-Hood ducting materials is listed on the back page of this instruction sheet.
- Page 4 8) Install an appropriate 1/2” UL listed electrical wire clamp through the electrical strap on top of the hood deck. Install electrical wiring from the service panel to the final hood location. Consult the connection diagrams (above) for further details on electrical placement. JCIH/C1 0715A Page 4...
- Page 5 12) Reinstall the blower housings and the blower shields. Make sure that the dampers open and close smoothly. 13) Refer to Owner Maintenance Guide Operating Instructions for proper hood operation. Test all blower and light functions to ensure they are operating properly. JCIH/C1 0715A Page 5...
- Page 6 3 ¼” x 10” VP507 6” x 8 ½” VP518 6” & 8” to 12” VP501 7” Round VP505 3 ¼” x 12” VP551 6” & 8” to 10” VP502 8” Round VP506 3 ¼” x 16” JCIH/C1 0715A Page 6...
