INSTALLATION INSTRUCTIONS

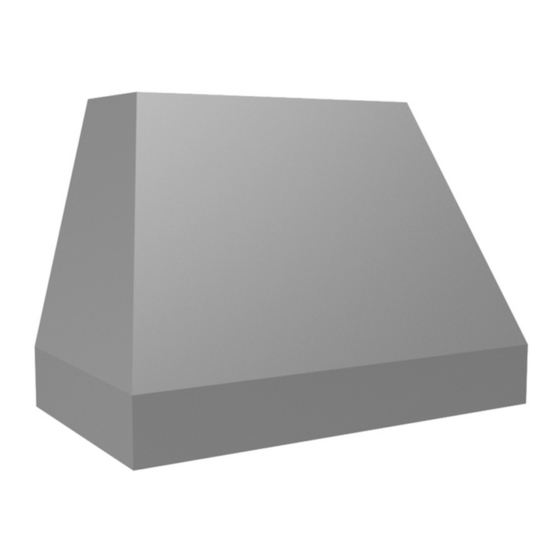

JPH/C1 DESIGNER SERIES
Read All Instructions Thoroughly Before Beginning Installation
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-
rated construction. Switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally
during installation.
B. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
C. Ducted fans must always be vented to the outdoors.
D. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting. Follow the heating equipment manufacturer's guideline and
safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and local code authorities.
E. ASHRAE residential ventilation standard 62.2 limits exhaust fans (total) to
a maximum of 15 CFM per 100 square feet of occupiable space, unless a
back drafting test is performed or make-up air is provided. Consult a local
HVAC engineer for make-up air evaluation.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL
JPH/C1 1213A
WALL MOUNT HOOD
DUCTWORK
Page 1
U L
C
US
R
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vent-a-Hood JPH/C1 DESIGNER series
Summary of Contents for Vent-a-Hood JPH/C1 DESIGNER series
-
Page 1: Installation Instructions
Read and Save These Instructions All Hoods Must Be Installed By A Qualified Installer INSTALLATION INSTRUCTIONS JPH/C1 DESIGNER SERIES WALL MOUNT HOOD Read All Instructions Thoroughly Before Beginning Installation WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. - Page 2 Ducting Do’s and Don’ts General Requirements • Observe local codes regarding special duct requirements and placement of duct against combustibles. • Using Vent-A-Hood transitions (back page) will ensure proper efficiency. • Using Vent-A-Hood roof jacks or wall louvers (back page) will ensure proper efficiency. • Where possible, seal joints with duct tape. • The hood must be ducted to the outdoors without restrictions.
-
Page 3: Installation Details
Install the duct(s) from the outside of the home to the ceiling over the exhaust outlet(s) on the hood. The end of the duct(s) should extend 1" below the ceiling. Use duct tape to seal all joints. A complete listing of available Vent-A-Hood ducting materials is provided on the back page of this instruction sheet. - Page 4 Installation Details Continued Connection Diagram (36” - 48” Widths) 1 ¾” 5 ¼” 1 ⁄ ” Wall Side Vent Hole Electrical 6” Outlet 3 ¼” Centerline of Hood 300 CFM B100 Single Blower (Front View) (Top View) Connection Diagram (36” - 48” Widths) 5 ½”...
- Page 5 Installation Details Continued 4) Remove the hood from its packaging and place the back of the hood on the floor or countertop in front of the wall where it will hang. 5) Remove the shipping tape that is securing the E-Z Clean shield(s) inside the hood. Remove the E-Z Clean shield(s) by lightly pulling it toward the front of the hood.
- Page 6 Installation Details Continued 11) FOR BACK VENTING APPLICATIONS ONLY. IF NOT BACK VENTING, PROCEED DIRECTLY TO STEP 12. Note: Wall studs may interfere with back venting installations. Additional framing may be required. It is necessary to cut duct access hole(s) in the wall prior to installing the hood. Using the applicable venting accessories and the connection diagrams (page 4) as a guide, install the duct(s) from the outside of the home to the wall over the exhaust outlet(s) on the hood.
- Page 7 VENTING ACCESSORIES WALL LOUVER WALL LOUVER WALL LOUVER RECTANGULAR WALL LOUVER 8 ⁄ ” 13” 11” 8 ½” 10” Back Back Back 6” 11” View View View 3 ¼” 7” 13” 6” 8” 1 ½” Flange 1 ½” Flange 1 ½” Flange MODEL MODEL MODEL...
