OUTDOOR UNIT INSTALLATION
2.1
Precautions for selecting the location
1) Choose a place solid enough to bear the weight and vibration of
the unit, where the operation noise will not be amplified.
2) Choose a location where the hot air discharged from the unit or
the operation noise will not cause a nuisance to the neighbors
of the user.
3) Avoid places near a bedroom and the like, so that the operation
noise will
not
cause
a disturbance
4) There must be sufficient spaces for carrying the unit into and out
of the site.
5) There must be sufficient space for air passage and no
obstructions around the air inlet and the air outlet.
6) The site must be free from the possibility of flammable gas
leakage in a nearby place.
7) Install units, power cords and inter-unit wire at least
from television and radio sets. This is to prevent interference to
images and sounds. (Noises may be heard even if they are more
away depending on radio wave conditions.)
than
9.8ft/3m
8) In coastal areas or other places with salty atmosphere of sulfate
gas, corrosion may shorten the life of the air conditioner.
9) Since drain flows out of the outdoor unit, do not place under the
unit anything which must be kept away from moisture.
NOTE:
The unit canno
t be installed hanging from ceiling or stacked.
When operating the air conditioner in a low outdoor ambient
temperature, be sure to follow the instructions described below.
- To prevent exposure to wind, install the outdoor unit with its suction
side facing the wall.
- Never install the outdoor unit at a site where the suction side may
be exposed directly to wind.
- To prevent exposure to wind, it is recommended to install a baffle
plate on the air discharge side of the outdoor unit.
- In heavy snowfall areas, select an installation site where the snow
will not affect the unit.
.
9.8ft/3m
CAUTION
- Construct a large canopy.
- Construct a pedestal.
Install the unit high enough off the
ground to prevent burying in snow.
2.2

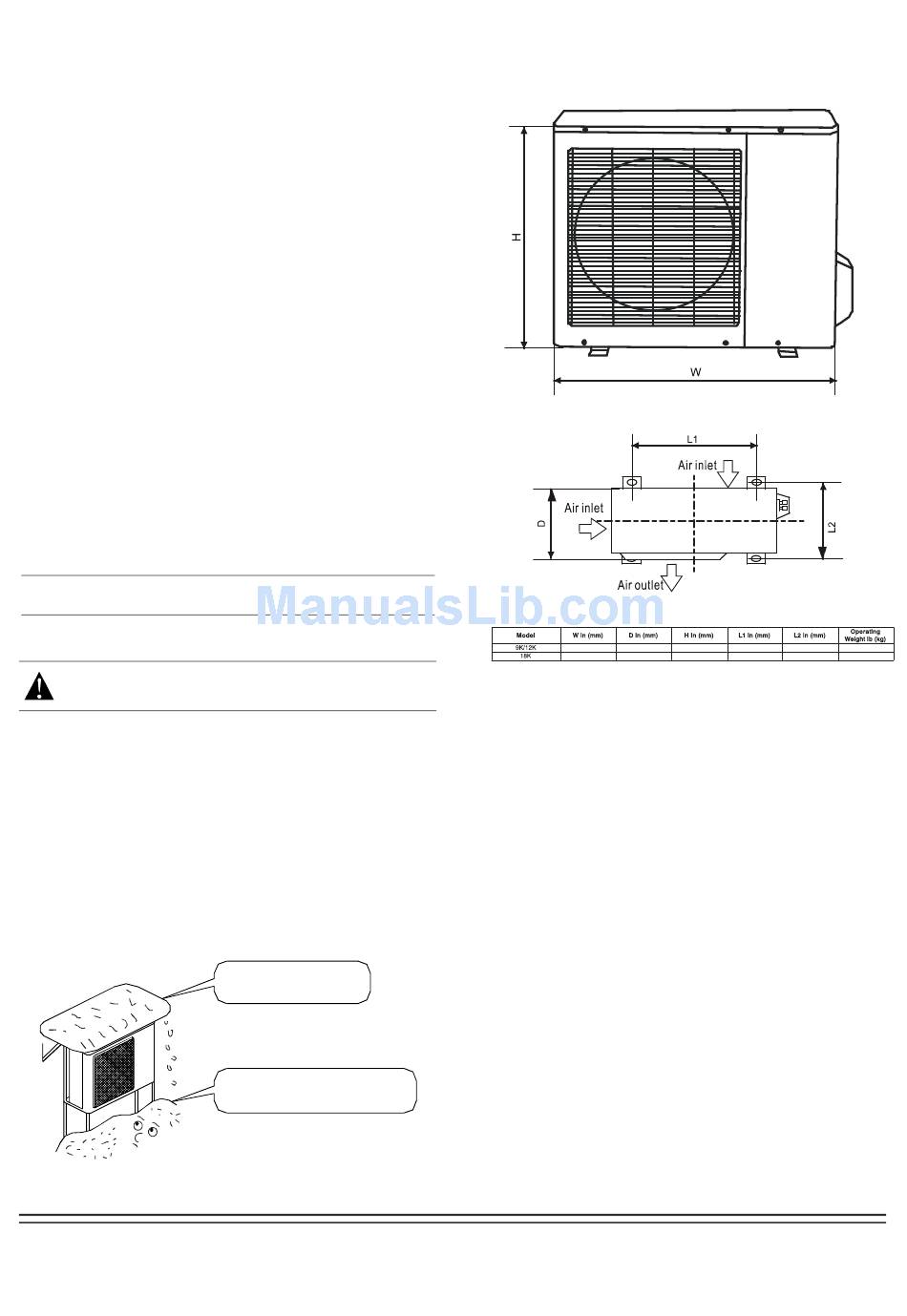

Figure of body size
away
32.0 (810)
32.3 (845)
(in=mm/25.4)
10
12.2 (310)
22.0 (558)
20.9 (530)
11.4 (290)
12.6 (320)
27.6 (700)
22.1 (560)
13.2 (335)
Unit:in/mm
82.5 (37.4)
102.5 (46.5)
