Summary of Contents for Rockwell RD3431

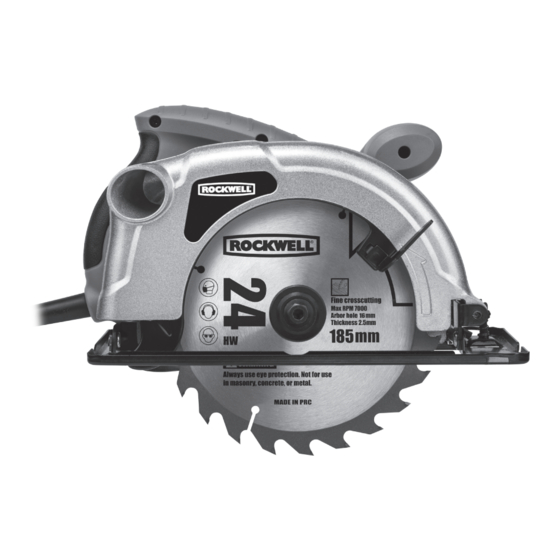

- Page 1 RD3431 1200W CIRCULAR SAW...
- Page 3 RD3431...
- Page 4 RD3431 notch notch...
-
Page 5: Component List
1200W CIRCULAR SAW COMPONENT LIST LOCK OFF SWITCH ON/OFF SWITCH AUXILIARY HANDLE DEPTH OF CUT SCALE DEPTH OF CUT ADJUSTMENT LEVER SPINDLE LOCK BUTTON BASE PLATE ANGLE SCALE BASE PLATE BEVEL LOCK PARALLEL GUIDE LOCK KNOB BASE PLATE PARALLEL GUIDE LOWER GUARD SAW BLADE * LOWER GUARD LEVER... -
Page 6: General Safety Rules
1200W CIRCULAR SAW ACCESSORIES 4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Parallel guide Keep cord away from heat, oil, sharp edges Hex key or moving parts. Damaged or entangled cords Blade: 185mm * 24T increase the risk of electric shock. - Page 7 1200W CIRCULAR SAW SAFETY WARNINGS FOR ALL SAWS power tool for your application. The correct power tool will do the job better and safer at the a) DANGER: Keep hands away from cutting area and rate for which it was designed. the blade.
- Page 8 1200W CIRCULAR SAW Kickback is the result of saw misuse and/or incorrect and does not touch the blade or any other part, in operating procedures or conditions and can be all angles and depths of cut. b) Check the operation of the lower guard spring. avoided by taking proper precautions as given below.
-
Page 9: Technical Data
1200W CIRCULAR SAW SYMBOLS TECHNICAL DATA Voltage 230-240V~50Hz To reduce the risk of injury, user must Power input 1200W read instruction manual No load speed 5500/min Max. cutting capacity 90° 62mm 45° 42mm Double insulation Bevel capacity 0-45° Blade size 185mm Bore size 16mm... -
Page 10: Working Hints For Your Circular Saw
1200W CIRCULAR SAW WORKING HINTS FOR YOUR USING THE CIRCULAR SAW 1. SAFETY ON/OFF SWITCH (See Fig. C) CIRCULAR SAW Your switch is locked off to prevent accidental starting. Depress the lock off button then the on/off If your power tool becomes too hot, run it no load for switch and release the lock off button. - Page 11 Staple your purchase receipt here Before returning this product for warranty or any other reason, please call. POSITEC AUSTRALIA PTY LIMITED ABN 14 101 682 357 Unit 15, 23 Narabang Way Belrose 2085 NSW Australia FREE CALL 1300 889 028 EMAIL:office.sales@positec.com.au...
- Page 12 POSITEC AUSTRALIA PTY LIMITED ABN 14 101 682 357 MADE IN PRC...
