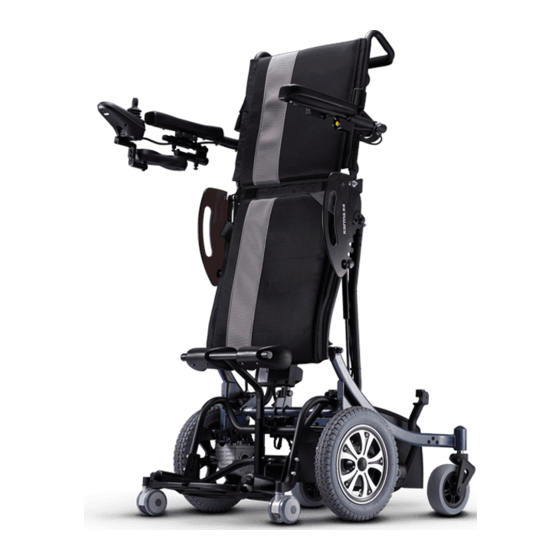

Karma KP-80 Owner's Manual
  1. Manuals
  2. Brands
  3. Karma Manuals
  4. Wheelchair
  5. KP-80
  6. Owner's manual

Karma KP-80 Owner's Manual

Ergo stand series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Powered Wheelchair Owner's Manual
Ergo Stand Series
(KP-80)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-80 and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KP-80

Summary of Contents for Karma KP-80

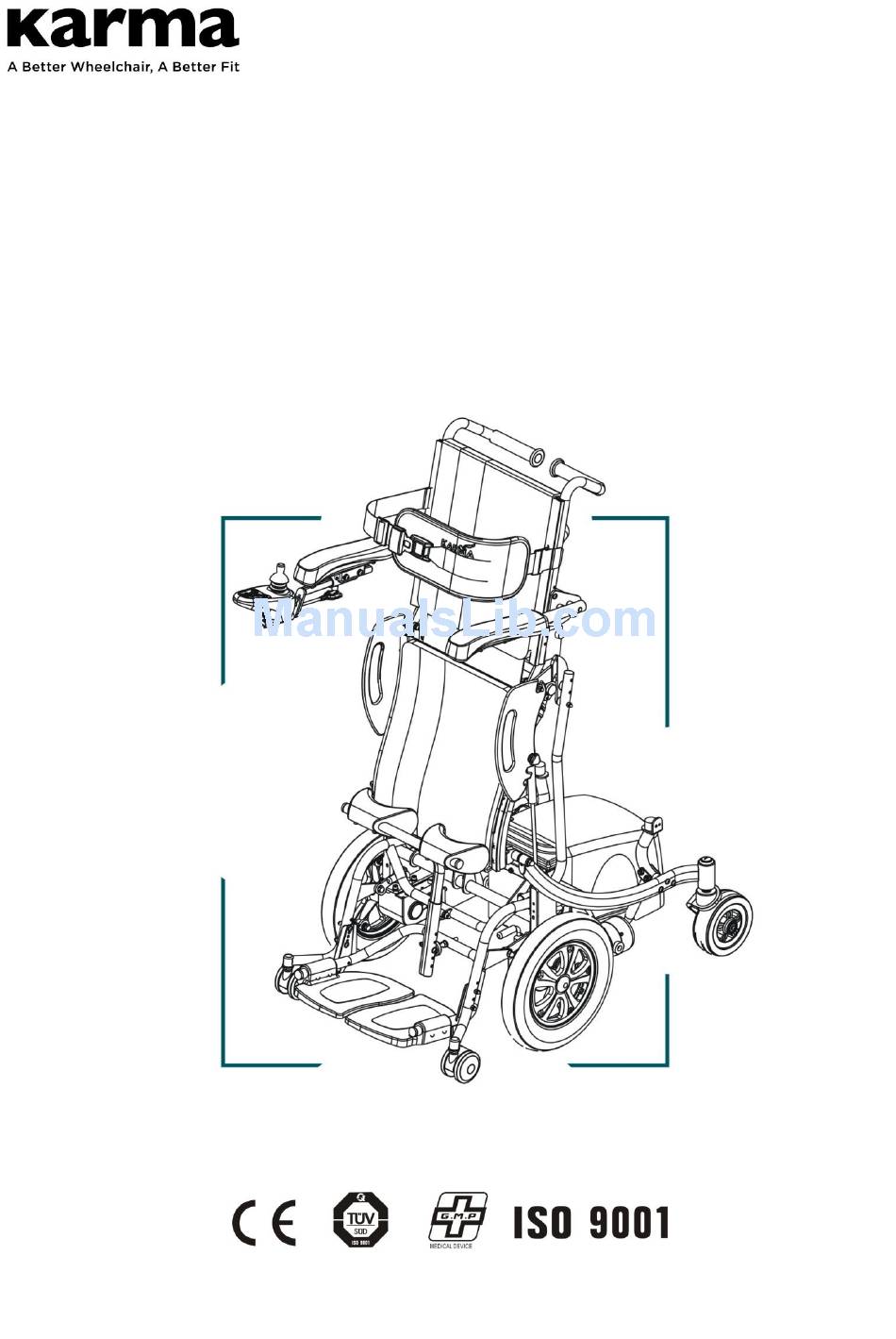

  • Page 1 Powered Wheelchair Owner's Manual Ergo Stand Series (KP-80)
  • Page 3 As of this date, the Department of Transportation (U.S.) has not approved any tie-down systems for transportation of a user while on a power wheelchair in a moving vehicle of any type. It is the position of Karma that users of power wheelchairs...
  • Page 4 Karma cannot and does not recommend any power wheelchair transportation systems. It is the responsibility of the Durable Medical...
  • Page 5 ● DO NOT use parts, accessories or adapters other than those authorized by Karma. Before attempting to sit in or exit the power wheelchair, turn the power OFF. This will ensure that the power wheelchair will not drive.
  • Page 6 during use which does not comply with applicable federal, state and local laws and ordinances. ● DO NOT stand on the footplates of the power wheelchair, while the wheelchair is in the seating position. ● DO NOT tow the wheelchair by other vehicles (cars, motorcycles or bicycles, etc.) Only use freewheel mode on flat surfaces since your electromagnetic brakes are not engaged in this mode, without these brakes it will roll down a hill causing injury or damage.
  • Page 7 BATTERIES ● The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. KARMA strongly recommends their use as the power source for this unit. (Refer to chapter 6) Carefully read the battery and charger information prior to...
  • Page 8 MUST be removed and transported independently of the power wheelchair Extreme caution is advised when it is necessary to move an UNOCCUPIED power wheelchair up or down stairs. Karma recommends disassembling the wheelchair and transporting the components independently up or down stairs. Make sure to use ONLY secure, non-detachable parts on each component for hand-held supports.
  • Page 9 Please contact your dealer for service. If you cannot contact your dealer, please contact another authorized Karma dealer for service. If all else fails, contact Karma directly via our website or give us a call and we can refer you to your new service provider.
  • Page 10 ● Check with your local government as to legislation pertaining to mobility vehicles to assure your legal requirements to drive on public roads have been met, i.e. a safety belt, lighting, registration or licensing CE MARKING ● This power wheelchair complies with the requirements of the Medical Devices Directive 93/42/EEC .

  • Page 11: Table Of Contents

    1. PREFACE ........................1 2. SAFETY ........................2 Before Driving ....................2 2.2 WHILE MOVING ....................4 2.3 KP-80 LABELLING .................... 7 3. EMI/RFI ........................8 Electromagnetic Interference From Radio Wave Sources ..8 4. KP-80 PARTS ......................12 5. OPERATION ......................14 VRⅡ...
  • Page 12 7. INSPECTION AND MAINTENANCE.............. 30 7.1 Daily Check ..................... 30 Regular Maintenance Record ............31 Tires ........................32 General Maintenance ................32 Transporting and Storing ..............33 Battery、circuit breaker tires ............34 8. OPTIONAL ACCESSORIES ................35 9. TROUBLE SHOOTING ..................39 Trouble or Problems with Your Wheelchair ......

  • Page 13: Preface

    1.2 This owner's manual includes operation instructions for the aspects of the wheelchair, assembly instructions, and instructions on how to deal with possible accidents. 1.3 This owner's manual is written for Karma power stand-up wheelchair(s): KP-80. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 14: Safety

    CAUTION: ● Before purchasing and using KARMA wheelchairs, please consult qualified professionals so as to ensure that you choose suitable products and use them correctly as well. For safety reasons, if there is any risk due to the user’s movement in the wheelchair or other environmental factors that might cause the wheelchair to tip or the person on the wheelchair to fall off (ex.
  • Page 15 2.1.4.2 Be sure you are able to control and operate your wheelchair easily and confidently before you move the speed higher. 2.1.5 No Passengers 2.1.5.1 KARMA wheelchairs are limited to one single driver. Do not carry passengers (including children) on your wheelchair. 2.1.6 No Hauling Heavy Goods 2.1.6.1 Do not use this wheelchair to carry or haul heavy goods.

  • Page 16: While Moving

    2.2 WHILE MOVING 2.2.1 Please carry out daily inspections. Refer to section 7.1 DAILY CHECK 2.2.2 General Warning 2.2.2.1 Do not lean over the side of the wheelchair as such an action may cause you to lose balance and fall. Use caution to assure your clothing doesn't get tangled with the wheels.
  • Page 17 Again, descending obstacles should be done perpendicularly. (See Figure 2.6) 2.2.6.8 Karma does not design wheelchairs to take jumps over or off obstacles. Doing so will negate your warranty. WARNING: ●...
  • Page 18 2.2.7Maximum User Weight Limit 2.2.7.1 Refer to "Max. User Weight" in section 9. SPECIFICATIONS. Loads exceeding maximum capacity can damage your wheelchair and cause malfunctions yielding a safety hazard. The warranty does not cover damage caused by improper operation of the wheelchair. Figure 2.2 Figure 2.3 Figure 2.4...

  • Page 19: Labelling

    2.3 KP-80 LABELLING Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 20: Emi/Rfi

    CAUTION: ● It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric KARMA wheelchair. 3.1 Electromagnetic Interference from Radio Wave Sources Powered vehicles may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from...
  • Page 21 fields in our everyday environment. Some of these sources are obvious and easy to avoid. Others are not apparent and exposure could be unavoidable. However, we believe that by following the warnings listed below, your risk to EMI can be greatly minimized. 3.1.1 The sources of radiated EMI can be broadly classified into three types: 3.1.1.1 Hand-held portable transceivers (transmitter-receivers) with...
  • Page 22 high levels of EM energy too close to the powered vehicle's control system while using these devices. This can affect your powered vehicle's movement and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the powered vehicle.
  • Page 23 KARMA, and note whether there was a source of EMI nearby. 3.1.4 Important Information 3.1.4.1 20 Volts per meter (V/m) is a generally achievable and useful immunity level against EMI (the higher the level is, the greater the protection will be.)

  • Page 24: Parts

    4. KP-80 PARTS 1. Back Support 7. Chest Strap 2. Arm Support 8. Controller 3. Side Panel 9. Charging Socket 4. Rear Wheel 10. Seat 5. Drive Wheel 11. Knee Support 6. Front Small Wheel 12. Foot Support...
  • Page 25 13. Back Reclining Actuator 14. Gas Strut 15. Stand-up Actuator 16. Battery Pack & Power Module 17. Motor...

  • Page 26: Operation

    5. OPERATION 5.1 VRⅡ Joystick Controller Without Lighting With Lighting System System 1. Joystick 9. Back Reclining Actuator Button 2. Charger Socket 10. Stand-up Actuator Button 3. Battery & Diagnostics Indicator 11.Hazards Button 4. ON/OFF Button 12. Left Indictor Buttons 5.
  • Page 27 CAUTION: ● Please slow down before you get used to control your power wheelchair. ● Please slow down your speed when indoors. 5.2.3 Driving Speed You can choose between 1 to 5 orange dots in the speed indicator, with 5 being the maximum speed. Please refer to "Max. Speed" in section 10.
  • Page 28 CAUTION: ● The stopping distance will vary with your forward/reverse speed. Therefore, please gradually slow down and come to a complete stop well before any obstacles or danger. ● To park the wheelchair, be sure to park on flat ground and then turn the power to OFF.
  • Page 29 5.2.7 The Fixed Way of Joystick Cable 1. Please use the X way 2. To pack the chair into 3. Please note the to fix the cable tie. a carton, the circled cable in the circled place is not position should be fastened by the always kept on the cable tie.
  • Page 30 SUGGESTION: ● It is recommended that you charge the batteries immediately when the battery indicator shows only three or less red dots. ● After charging or replacing new batteries, drive the wheelchair for 2-3 minutes to make sure the batteries are fully charged before going on a long journey ●...
  • Page 31 5.2.8 Stand-up Function Operation 5.2.8.1Turn the power on. 5.2.8.2 Press the stand-up actuator button 9. (See 5.1 VRⅡJoystick Controller) 5.2.8.3 Moving the joystick forward will stand up the seat in that direction. 5.2.8.4 Moving the joystick backward will sit down the seat in that direction.

  • Page 32: Freewheel Levers

    5.3 Freewheel Levers The KP-80 is supplied with freewheel levers to allow for manual pushing of the power wheelchair if required. 5.3.1To select neutral from the engaged position: Rotating the levers located on the top of both motors forward. The wheelchair will now roll freely.

  • Page 33: Adjustment

    5.4 Adjustment 5.4.1 Foot Support 5.4.1.1Height Adjustment (7 different positions) Remove the screws from the front tube of frame, put the foot support on the desired height and put back the screws. Tighten securely. (See Figure 5.4.1.) 5.4.1.2Swing Outward In order to transfer in or out easy, the separate foot support can be lift up separately.(See Figure 5.4.2.
  • Page 34 5.4.2 Arm Support 5.4.2.1 Height Adjustment (5different positions) Remove the screws from the back support tube, adjust The desired height and put back the screws. Tighten securely. (See Figure 5.4.4). Figure 5.4.5 Figure 5.4.4 5.4.2.2 Swing Backward To make side transfer easy, the chair is equipped with swing away arm support.
  • Page 35 Once adjusted, tighten up the screws securely. (See Figure 5.4.9.) Those adjustments will have to be optimized after a progressive standing session. This will enable to avoid exaggerated pressure on the knees and to guarantee a good alignment of the limbs. Figure 5.4.6 Figure 5.4.7 Figure 5.4.8...

  • Page 36: Transferring In And Out

    WARNING: ● Make sure that the chest strap does not get caught in the spokes when it release. ●This chest strap is not to be used as a safety belt in a vehicle. ● The chest strap should be fitted below the armpit and should not loop the arm over trunk in order to avoid the hazard causing by the trunk slipping down.

  • Page 37: Batteries And Charger

    6. BATTERIES AND CHARGER CAUTION: ● Before you attempt charging, ensure you read and understand the instruction manual supplied with the battery charger, and you choose the correct input voltage for battery charger. 6.1 Charging the Batteries Charge your batteries if any of the following conditions occur. 6.1.1 If you have used your wheelchair for more than an hour continuously;...
  • Page 38 CAUTION: Please follow the guidelines below to avoid accidents while charging. ● Be sure to only use a KARMA approved battery charger and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used.

  • Page 39: Charger

    Plan to recharge them when use of the power wheelchair is not anticipated. 6.2 Charger The battery charger supplied by Karma is for indoor use only, and it must be protected from moisture and external heat source. CAUTION: ● Before charging, make sure to set the 115V 230V switch to match the local AC voltage.

  • Page 40: Batteries

    WARNING: ● The fan inside the charger will start to work when you turn on the charger. (8A, will start to work as temperature is over 50°C and stop running under 50°C) ● If you find that the fan does not function properly, DO NOT use the charger.
  • Page 41 WARNING: ● There are many risks involved with improper disposal of batteries, whether damaged or not. Batteries may contain heavy metals and be considered hazardous waste. ● Many regions around the world now strictly enforce laws to help protect our environment. By not disposing of batteries properly, you may be liable for fines from your local through national government.

  • Page 42: Inspection And Maintenance

    ● Are there any cracks or other damage to the tires? Tires ● Check the tire tread depth and air pressure. Other ● Is there any abnormal noise？ CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal.

  • Page 43: Regular Maintenance Record

    7.2 Regular Maintenance Record To make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance (and keep records accordingly) every six months after purchasing. A maintenance/service fee may apply. WARNING: ● Even if you don't use the wheelchair for a long time, the wheelchair should still be maintained regularly.

  • Page 44: Tires

    PCB circuit board. Please clean the vehicle by wiping it with either a dry or moist cloth. Please take the vehicle to an authorized KARMA wheelchair dealer for repairs and adjustments. Improper adjustments could lead to wheelchair malfunction or an accident.

  • Page 45: Transporting And Storing

    SUGGESTION: ● Do not directly spray water on your wheelchair to wash it, as this could lead to a malfunction in the electric system. ● Do not use gasoline, solvents or other abrasive solutions; the casing may become deformed or damaged. WARNING: ●...

  • Page 46: Battery、Circuit Breaker Tires

    KARMA wheelchair dealer. (Figure 7.1) (Figure 7.2) 7.6 Battery、circuit breaker tires 7.6.1 Battery：Fully empty of power shall damage the battery and thus reduce the lifetime of the battery. Please charge the batteries when they are in the condition of low power. Please refer to Chapter 6 for more detail about battery.

  • Page 47: Optional Accessories

    8.8 50AH Battery 8.9 headrest 8.9.1 Headrest installation Instructions 8.9.1.1 This Karma headrest provides excellent head support. 8.9.1.2 The new design allows compact folding while still attached to the wheelchair. 8.9.1.3 This headrest is designed for wheelchairs with 22mm rear push handle tubes.
  • Page 48 8.9.1.6 This headrest is designed to be used only as indicated in the pamphlet. The manufacturer can’t be held liable for any injuries sustained or damage to the wheelchair due to modification made to this device. 8.9.1.7 To avoid injuries or possible damage to the wheelchair, please read the owner’s manual carefully before installing this device.
  • Page 49 8.9.2.2 How to use: When using wheelchair, unfold wheelchair first, then prop up the headrest. Conversely when folding wheelchair, first pull down the headrest to release the support tension, then fold wheelchair. 8.9.3 Maintenance 8.9.3.1Routine Maintenance: After using Monthly Quarterly Keep headrest clean Check the rotation...
  • Page 50 8.9.3.3 Troubleshooting: Situation Possible Problem Method Headrest is unstable. The bolts are loose. Check bolts of the frame and tighten them. The headrest can’t be The bolts are Please loosen the bolts adjusted. overtightened. a little. The inner/outer tubes Clean the inner tubes are dirty.

  • Page 51: Trouble Shooting

    9. TROUBLE SHOOTING 9.1 Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action Is the power turned OFF? Turn ON the power. Do the batteries still have power?
  • Page 52 has a bad connection. the left hand motor. The left hand motor Connect your service agent. 5 signals has a short circuit to a battery connection. The wheelchair is Please remove the charger. being prevented from 6 signals driving by an external signal.

  • Page 53: Specifications (±1Cm ±0.5Kg)

    10. SPECIFICATIONS (±1cm ±0.5kg) Model KP-80 Description Seat Width (cm) Frame Steel Batteries Sealed lead acid batteries 36Ah x2pcs Max. Speed 9.1km/hr Motor DC 24V 300W(rated) x 2pcs Range* (km) 16km/18.7 km(50Ah) Max. Safe Slope 10 degrees (in the seating position)

  • Page 54: Cleaning & Recycling

    11. CLEANING & RECYCLING 11.1CLEANING 11.11 In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. We suggest that you don't use your wheelchair in the rain or snow.

  • Page 55: Warranty

    12.2.1.2 The warranty-covered repair can be performed by authorized KARMA wheelchair dealers only. 12.1.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 12.2.1.4 Replaced parts will be the property of KARMA. Warranty Duration and Parts Covered by the Warranty Please contact your local dealer.
  • Page 56 12.2.3.3 Tampering by changing or adding components to the vehicle, which are not approved by KARMA; 12.2.3.4 Damage caused by using non-KARMA genuine parts or other parts not recommended by KARMA; 12.2.3.5 Abuse or misuse of the vehicle such as driving over curbs and overloading the wheelchair with passengers or goods;...
  • Page 57 KARMA dealership where the wheelchair was purchased. 12.2.6 Transfer of Warranty Rights 12.2.6.1 If you purchase a second-hand KARMA wheelchair while it is still with in the warranty period, bring the Owner's Manual and the vehicle to the dealership where the wheelchair was purchased...
  • Page 58 Full name: Gender: □Male □Female MM/ DD/ YYYY Date of Birth: Address: Model: KARMA KP-80 Serial Number: MM/ DD/ YYYY Date of Purchase: Purchaser Signature: Dealer's Data Name of store: Telephone and Address: If you have any suggestions on how to improve our products, please don't hesitate contacting your local dealer to let us know what you think of your wheelchair.
  • Page 60 104-45029 Rev.02 MAY.2013...
