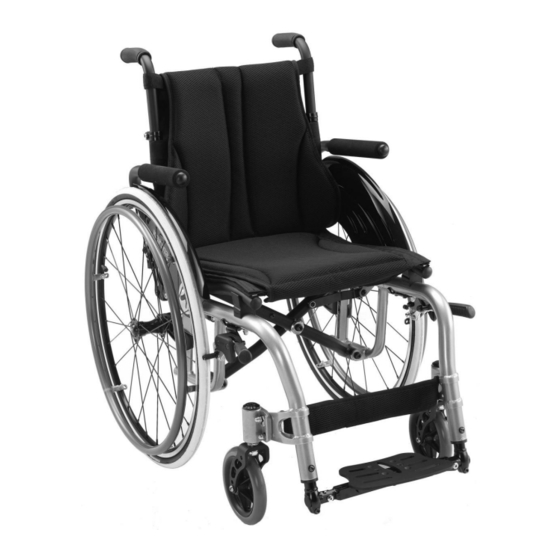

- Page 1 Manual Wheelchair Owner's Manual Ergo Live Series (KM-9000)
-
Page 3: General Warning
GENERAL WARNING ● DO maintain your wheelchair well, in particular check the tire pressure since this affects the efficiency of the brakes. To know the correct tire pressure, please see the walls of the tires. ● DO make sure both brakes are applied before getting in or out of the wheelchair. ●... - Page 4 KARMA guarantees and what maintenance and parts that are not covered by our warranty. ● KARMA does not have an official list of service providers at this time. Please contact your dealer for service. If you cannot contact your dealer, please contact another authorized KARMA dealer for service.
- Page 5 93/42/EEC. CAUTION: ● Before purchasing and using KARMA wheelchairs, please consult qualified professionals so as to ensure that you choose suitable products and use them correctly as well. For safety reasons, if there is any risk due to the user's movement in the wheelchair or other environmental factors that might cause the wheelchair to tip or the person on the wheelchair to fall off (ex.
-
Page 6: Table Of Contents
2.11 Avoid General Misuse ..................4 2.12 Labeling ....................... 5 3. INTENDED USE & PARTS ..................6 3.1 Intended Use ....................... 6 3.2 KM-9000 with 24〞Rear Wheel Parts Description ......... 7 4. OPERATION ........................ 8 4.1 Unfolding ......................8 4.2 Folding ........................8 4.3 Getting Into Your Wheelchair .............. - Page 7 4.18 Anti-Tippers ..................... 17 4.19 Safety Belt (Option) ..................18 4.20 How to Operate It: ..................19 4.21 Maintenance....................19 4.22 Storing ....................... 19 4.23 Transferring In ....................19 4.24 Transferring Out ..................... 20 4.25 General Use ..................... 21 4.26 Tilting by the Attendant ................22 4.27 Tilting by the User ..................
-
Page 8: Preface
1.2 This owner's manual is written for KARMA wheelchair. 1.3 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols. -
Page 9: Negotiating Inclines
lose balance and fall. (See Figure 2.1.) 2.3 Negotiating Inclines 2.3.1 Never turn on a hill due to the danger of tipping. 2.3.2 When an attendant is pushing the wheelchair straight up a slope, if the user needs to go down midway on the slope, walk backwards until the user is on level ground. -
Page 10: Streets
2.7.2 Never stand on the footplates when getting in or out of the wheelchair. 2.7.3 Never carry more than one passenger. KARMA wheelchairs are limited to one user. 2.7.4 Use caution to assure your clothing doesn't get tangled with the wheels. -
Page 11: Maximum User Weight Limit
personal injury. The distance between the end of each anti-tipper and the rear wheel is at least 5cm; the distance to the ground is no more than 5cm. 2.10 Maximum User Weight Limit Refer to "Max. Capacity" in section 8. SPECIFICATIONS. Loading exceeding maximum capacity can damage your wheelchair and cause malfunctions yielding a safety hazard. -
Page 12: Labeling
2.12 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference. -
Page 13: Intended Use & Parts
3. INTENDED USE & PARTS 3.1 Intended Use 3.1.1 The KM-9000 series with 24" rear wheels is a self-propelled wheelchair. It can either be pushed by an attendant or by the user. 3.1.2 This series of wheelchairs are suitable for a single user up to 125kg in weight. -
Page 14: Km-9000 With 24〞Rear Wheel Parts Description
3.2 KM-9000 with 24〞Rear Wheel Parts Description 1. Push Handle 8. Side Panel 2. Backrest Upholstery 9. Seat Sling 3. Handrim 10. Rear Wheel 4. Quick-Release Axle 11. Cross Brace 5. Brake 12. Footrest 6. Fork 13. Footplate 7. Caster... -
Page 15: Operation
4. OPERATION Preparing For Use 4.1 Unfolding 4.1.1 Holding the armrests, push outwards. (See Figure 4.1) 4.1.2 Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. Make sure the frame is firmly seated in its holder. -
Page 16: Getting Into Your Wheelchair
CAUTION: ● Be careful not to get your fingers caught when folding the wheelchair. 4.3 Getting Into Your Wheelchair (See Figure 4.7) 4.3.1 Push the wheelchair against a wall or a solid piece of furniture. 4.3.2 Apply the brakes 4.3.3 Flip the footplates up 4.3.4 The user lowers the body and sits on the wheelchair gently. -
Page 17: Rear Wheel Assembly
4.6 Rear Wheel Assembly 4.6.1 First ensure that the brake is in the OFF position. 4.6.2 Take up the wheel with axle and press the hub cover in the centre of the axle, as above. 4.6.3 This retracts the ball bearings that will allow you to push the axle into the wheel bracket that is located on the lower rear frame of the wheelchair. -
Page 18: Wheel Locks
4.8.2 Adjust footrest height to make the user's thighs be parallel to the ground or feel comfortable. 4.8.3Adjust footplate angle until it is parallel to ground or comfortable. (See Figure 4.14) 4.8.4 To adjust footplate height, use the Karma tool provided to loosen the bolt at... -
Page 19: Longitudinal (Forward /Backward) Position Of Footplates
the end of the footrest arm. (See Figure 4.15) 4.8.4 Adjust it to the desired angle and re-tighten. (See Figure 4.13) Figure 4.13 Figure 4.14 Figure 4.15 CAUTION: ● Make sure that the footplate height is adjusted properly according to the user's calf length to reduce pressure on the body. -
Page 20: Lateral (Sideways) Position
Figure 4-23 CAUTION: ● For your safety, when you use the wheelchair for the first few times, Karma strongly recommends you to use the rear position which provides the maximum axle distance. The setting will help you to avoid potential dangers until you are fully comfortable with your wheelchair. -
Page 21: Adjusting The Seat Height
4.12 Adjusting the Seat Height There are four levels adjustments. 4.12.1 Release the rear wheel. (See Figure 4.24) 4.12.2 Use the tool to loosen the screw on the plate. (See Figure 4.25) 4.12.3 Adjust upward or downward to your desired height. (See Figure 4.26) 4.12.4 Re-tighten the screw to complete the seat height adjustment. -
Page 22: Backrest Height
4.14 Backrest Height To adjust the backrest height, follow these instructions as listed below: 4.14.1 Use the tool provided by KARMA to loosen the screws at the both bottom sides of the backrest frame. (See Figure 4.31) 4.14.2 Adjust the backrest to the desired height. (See Figure 4.32) 4.14.3 Tighten the screws, attach the armrest and backrest upholstery to the... -
Page 23: Backrest Angle Adjustment
4.15 Backrest Angle Adjustment To adjust the backrest angle, follow the instruction as listed below: 4.15.1 Use the tool provided by KARMA to loosen and remove the screws at the both bottom sides of the backrest frame. (See Figure 4.34) 4.15.2 Adjust the backrest forward or backward to the position as desired. -
Page 24: Upholstery
4.17 Upholstery When upholstery is loose, you can tighten it which by pulling and re-attaching the Velcro. (See Figure 4.40 and Figure 4.41) Figure 4-40 Figure 4-41 4.18 Anti-Tippers The main purpose of anti-tippers is to prevent the user from turning over. 4.18.1 When you install the anti-tippers, if the anti-tippers are adjustable, please make sure the distance between the end of each anti-tipper and the rear wheel is at least 5cm;... -
Page 25: Safety Belt (Option)
4.19 Safety Belt (Option) 4.19.1 Please follow the instruction to use the safety belt for your safety. 4.19.2 Please follow the instruction to assemble or disassemble the safety belt. 4.19.3 Put both ends of the safety belt straight through the backrest holder and insert it through the buckle to adjust to the desired length. -
Page 26: How To Operate It
Make sure the wheelchair is folded when stored. SUGGESTION: ● Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult your KARMA dealer. WARNING: ● Don't put anything on the wheelchair while it is in storage. -
Page 27: Transferring Out
Ensure that the heels rest against the heel supports to prevent contact with the casters. 4.23.6 Release both hand brakes. CAUTION: ● Always ensure that the front casters are in line with the rear wheels and pointing forwards and that the back of the chair is secure either against a wall or firmly held by an attendant. -
Page 28: General Use
When transferring in and out of the chair, make sure that the brakes are applied to prevent the chair from sliding away. Also see that the footplates are flipped up for ease of entering or exiting. (See Figure 4.51) 4.25 General Use 4.25.1 Attendant Pushing and Self Propelling 4.25.1.1 Ensure that the brakes are always locked when the chair is not being pushed. -
Page 29: Tilting By The Attendant
Figure 4.50 Figure 4.51 Figure 4.52 Figure 4.53 Figure 4.54 Figure 4.55 Figure 4.56 Figure 4.57 4.26 Tilting by the Attendant 4.26.1 Make sure both the user's feet are on the footplates and will not slip off. Make sure the handgrips are secure and cannot slip off. 4.26.2 Release both brakes. -
Page 30: Tilting By The User
CAUTION: ● When a wheelchair is tilted to about 25 degrees it will balance on the rear wheels and be easy to hold. If it is tilted further back it will be difficult to hold and the person in the wheelchair will feel unsafe. ●... -
Page 31: Avoid Jarring The User
avoid tipping the wheelchair 4.28.4 Gently lower the front casters. 4.29 Avoid Jarring the User 4.29.1 Going Down Kerbs Backwards With an Attendant CAUTION: ● This is the easier and smoother method BUT it requires the attendant to step backwards into the road. 4.29.2 Back the wheelchair to the kerb edge and be careful that the back wheels are equally near the edge. -
Page 32: Inspection And Maintenance
5.1.6 The wheels and tires should be checked periodically for cracks and wear, and should be replaced by a qualified technician. 5.1.7 A qualified technician can be found at an authorized distributor/dealer. CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal. -
Page 33: Regular Maintenance Record
5.2 Regular Maintenance Record To make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance (and keep records accordingly) every six months after purchasing. A maintenance/service fee may apply. WARNING: ● Even if you don't use the vehicle for a long time, the wheelchair should still be maintained regularly. - Page 34 spun Ⅴ ● Inspect for any cracked, bent or broken spokes ● ARMRESTS Ⅴ ● Inspect the detachable armrest button for effective locking Ⅴ ● Make sure the armrest detaches and flips back properly ● FOOTRESTS ● Inspect the footplate height adjustment screws are Ⅴ...
-
Page 35: Adjustment Manual
5.3 Adjustment Manual 5.3.1 Seat Height Adjustment ■ 24" x 1" Caster Position Caster/ Rear Wheel □ □ 5" 6" Caster Caster 110mm 150mm 110m 150m Seat Caster Caster Caster Caster Height Fork Fork Fork Fork □ 17.5" (445mm) Caster Fork □... -
Page 36: Options And Accessories
Thus, this should be performed by your approved repairer and therapist. 7. TROUBLESHOOTING 7.1 Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action 1. -
Page 37: Specifications
(kg) 11.7（±0.5）kg 11.8（±0.5）kg Maximum User Weight 125 ㎏ (kg) Packing Size (mm) 910 ㎜*345 ㎜*875 ㎜ 910 ㎜*345 ㎜*875 ㎜ KARMA reserves the right to modify information herein without further notice. Product specification could be varied according to customer requirements. - Page 38 Seat/Back Angle 5° Total Weight (kg) 11.9（±0.5）kg Maximum User Weight 125 ㎏ (kg) Packing Size (mm) 960 ㎜*345 ㎜*950 ㎜ KARMA reserves the right to modify information herein without further notice. Product specification could be varied according to customer requirements.
-
Page 39: Cleaning & Recycling
Static stability (According to ISO 7176-1:1999) Forward Max. 10 degrees Backward Max. 10 degrees Sideways Max. 17 degrees • The degree tolerance is +0, -1 degree. • The test condition: size of test dummy used 125kg. CAUTION: ● Please don't travel across a slope (in any direction) greater than 7 degrees. 9. -
Page 40: Warranty
10.2.1.2 Warranty repairs can be performed by authorized KARMA wheelchair dealers only. 10.2.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.4 Replaced parts will be the property of KARMA. - Page 41 10.2.2.3 Problems arising due to lack of basic maintenance and self-inspection. 10.2.2.4 Damage resulting from use not following operation guidelines. 10.2.2.5 Installation or use of parts not manufactured by KARMA. 10.2.2.6 Damage resulting from use in unsuitable environments. 10.2.2.7 Any addition, modification, or alteration not authorized by KARMA.
- Page 42 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights If you purchase a second-hand KARMA wheelchair while it is still within the warranty period, bring this owner's manual and the wheelchair to the dealer where the wheelchair was purchased for registration.
- Page 44 104-40151 Rev:01 MAY.2013...
