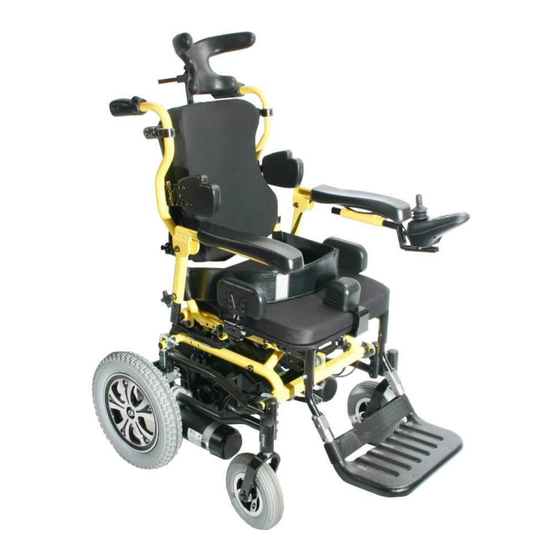

Powered wheelchair

Advertisement

Quick Links

Powered Wheelchair Owner's Manual
KP12 Series
■ KP-12
■ KP-12T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP12 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Karma KP12 Series

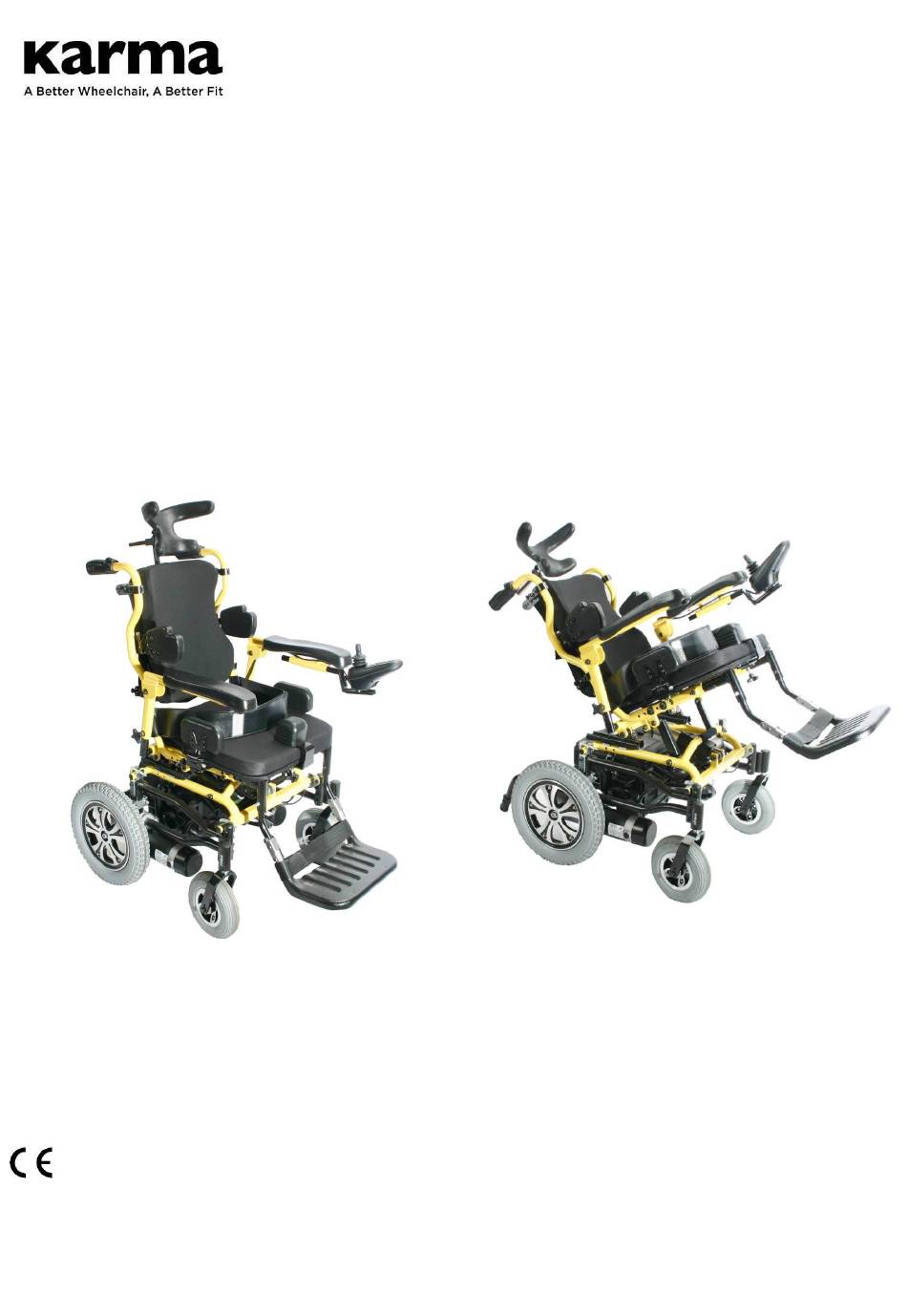

  • Page 1 Powered Wheelchair Owner's Manual KP12 Series ■ KP-12 ■ KP-12T...
  • Page 3 It is the position of Karma that users of power wheelchairs should be transferred into appropriate seating in vehicles for transportation and make use of the restraints made available by the auto industry.
  • Page 4 ◎ DO NOT use parts, accessories or adapters other than those authorized by Karma. Before attempting to sit in or exit the power wheelchair, turn the power OFF. This will ensure that the power wheelchair will not drive.
  • Page 5 The warranty and performance specifications contained in this manual are based on the use of deep cycle sealed lead acid batteries. KARMA strongly recommends their use as the power source for this unit. (Refer to chapter 6)Carefully read the battery and charger information prior to installing, servicing or operating your wheelchair.
  • Page 6 Karma service provider has the necessary service manual for your wheelchair. If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by Karma. Use of parts that are not authorized by Karma will negate your warranty.
  • Page 7 If you cannot contact your dealer, please contact another authorized Karma dealer for service. If all else fails, contact Karma directly via our website or give us a call and we can refer you to your new service provider.
  • Page 8: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ......................1 2. SAFETY ......................1 2.1 BEFORE DRIVING ..................1 2.2 WHILE DRIVING ..................2 2.3 KP-12 AND KP-12T LABELING ..............4 3. EMI/RFI ......................6 4. KP-12T PARTS ....................8 5. OPERATION ....................10 5.1 VRⅡ...
  • Page 9: Preface

    This owner's manual includes operation instructions for the aspects of the wheelchair, assembly instructions, and instructions on how to deal with possible accidents. This owner's manual is written for Karma power wheelchair(s): KP-12 and KP-12T. The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.
  • Page 10: While Driving

    No Passengers KARMA wheelchairs are limited to one driver. Do not carry passengers (including children) on your wheelchair. No Hauling Heavy Goods Do not use this wheelchair to carry or haul heavy goods. The maximum weight that can be carried, including goods, is stated beside "Max. User Weight"...
  • Page 11 When climbing down a curb, slow down just before you get to it and only speed up after the entire wheelchair has lowered to the road. Again, descending obstacles should be done perpendicularly. (See Figure 2.6) Karma does not design wheelchairs to take jumps over or off obstacles. Doing so will negate your warranty. WARNING: Do not set the wheelchair in freewheel mode when on an incline or decline.
  • Page 12: And Kp-12T Labeling

    Figure 2.5 Figure 2.6 2.3 KP-12 and KP-12T Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.
  • Page 14: Emi/Rfi

    CAUTION: It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric KARMA wheelchair. Electromagnetic Interference From Radio Wave Sources Powered vehicles may be susceptible to electromagnetic interference (EMI), which is...
  • Page 15 5. Report all incidents of unintended movement or brake release to your powered vehicle dealer or KARMA, and note whether there was a source of EMI nearby. Important Information 1. 20 Volts per meter (V/m) is a generally achievable and useful immunity level against EMI (the higher the level is, the greater the protection will be.)
  • Page 16: Kp-12T Parts

    4. KP-12T PARTS Parts Description 1. Head Support 9. Motor 2. Back Support Angle Adjustment 10. Castor (Caster) Base 11. Foot Support 3. Back Support 12. Posterior Foot Support 4. Lateral Trunk Support 13. Medial Upper Leg Support (Thigh 5. Arm Support Separator) 6.
  • Page 17 17. Handgrip 21. Fuse 18. Battery Handle 22. Freewheel Lever 19. Charging Socket 23. Anti-tipper 20. Backpack 24. Lock Pin...
  • Page 18: Operation

    5. OPERATION 5.1 VRⅡ Joystick Controller 1. Joystick 6. Speed Indicator 2. Charger Socket 7. Speed Increase Button 3. Battery & Diagnostics Indicator 8. Speed Decrease Button 4. ON/OFF Button 9. Actuator Button (KP-12T) 5. Horn Button 5.2 How to Operate Your wheelchair 5.2.1 Power ON/OFF Press the power button.
  • Page 19 Driving outdoors on flat ground Speed equivalent to a brisk walk Driving in an open space On an incline 5.2.4 Forward, Reverse and Braking Push forward on the joystick to make the wheelchair move forward. Pull back on the joystick for the wheelchair to move backward. Release the joystick and the wheelchair will quickly slow down, the electromagnetic brake will be activated to stop the wheelchair.
  • Page 20: Freewheel Levers

    SUGGESTION: 1. It is recommended that you charge the batteries immediately when the battery indicator shows only three or less red dots. 2. After charging or replacing new batteries, drive the wheelchair for 2-3 minutes to make sure the batteries are fully charged before going on a long journey. 3.
  • Page 21: Adjustment

    4. Pull up and move backward to remove back support. (See Fig.5.4.3.) Unscrew the 4 pieces of screws on both side of seat frame and adjust the seat depth to the desired position, and then retighten the screws by using tools supplied by KARMA. (Adjust both sides simultaneously. See Fig.5.4.4.) Figure .5.4.1...
  • Page 22 Figure.5.4.4 Figure.5.4.5 Figure.5.4.6 5.4.4 Adjustment for Lateral Upper Leg Support There is 3.5 cm being adjustable at one side. And there are 7 segments being adjustable in fore and aft and each segment is of 3 cm.. 1. Pull up and remove the seat. (See Fig 5.4.1.) 2.
  • Page 23 Figure.5.4.8 Figure.5.4.9 Figure.5.4.10 5.4.8 Height Adjustment for Back Support 1. Remove the cover of the back support. (See Fig.5.4.9.) 2. Unscrew the 8 screws at the upper and lower parts on both side of back side of back support and according to the occupant’s desire adjust the back support height and then retighten the screws (See Fig.5.4.12.) You can also unscrew the hanging bracket of back support and adjust the back support height, and then retighten the screws.
  • Page 24 Right-left Adjustment: 1. Remove the cover of back support. (See Fig.5.4.9) 2. Unscrew the screws on the up of back of back support and adjust the head support to right or left and then retighten the screws (See Fig.5.4.16) Figure.4.14 Figure.5.4.15 Figure.5.4.16 5.4.11 Flip-up the Arm Support...
  • Page 25: Kp-12, Kp-12T Disassembly And Assembly

    1. Press and hold the release button and pull out to remove the controller. (See Fig.5.4.21.) 2. Loose the screws on the controller fixing tube to adjust the height and then retighten the screws. (See Fig.5.4.22.) 3. Press and hold the release button to put the controller to its original position. Figure.5.4.20 Figure.5.4.21 Figure.5.4.22...
  • Page 26 KP-12/KP-12T can be disassembled to include seat assembly, chassis and battery box which is convenient for storage and transportation. 1. Press the gray button on the No.1 plug and pull it out to 2.Flip-up the foot support. remove the cable from the power module. (For KP-12 and KP-12T.) Pull out the No.2 and No.3 plugs to remove the cables from the power module.
  • Page 27: Transferring In And Out

    5.6 Transferring In and Out 5.6.1 Transferring In 1. Turn off the power and engage the parking brake. 2. Flip-up the foot support. 3. Lower the occupant into the seat, and use the arm support for support. 4. Restore the foot support. 5.6.2 Transferring Out 1.
  • Page 28 CAUTION: Please follow the guidelines below to avoid accidents while charging. 1. Be sure to only use a KARMA approved battery charger and charge the battery completely every time. The battery can be damaged if a non-genuine charger is used.
  • Page 29: Charger

    Plan to recharge them when use of the power wheelchair is not anticipated. 6.2 Charger The battery charger supplied by Karma is for indoor use only, and it must be protected from moisture and external heat source. CAUTION:...
  • Page 30: Inspection And Maintenance

    WARNING: 1. Do not open the battery seal cap at any time. 2. After ANY adjustments, repair or service and BEFORE use, make sure that all hardware is tightened securely. Otherwise, injury or damage may occur. 3. When removing/installing batteries, keep all foreign objects, especially metal, away from battery terminals.
  • Page 31: Regular Maintenance Record

    Check the following items before driving. If you find anything abnormal, visit your KARMA wheelchair dealer for further inspection before using it. Item Inspection Content Joystick Is the joystick loose and/or making noise? Controller Can the joystick be turned left and right smoothly?
  • Page 32: Tires

    PCB circuit board. Please clean the vehicle by wiping it with either a dry or moist cloth. Please take the vehicle to an authorized KARMA wheelchair dealer for repairs and adjustments. Improper adjustments could lead to wheelchair malfunction or an accident.
  • Page 33: Transporting And Storing

    When stored for a long time, please charge the batteries to full and then disconnect the battery terminals. For more details, consult your KARMA wheelchair dealer. 8. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action My wheelchair...
  • Page 34 Charge the batteries. Is the charger plugged into the wheelchair? Unplug the charger and put it away. If you cannot solve the problem by yourself, contact your KARMA wheelchair dealer for help. VRII Controller, Battery & Diagnostics Indicator The following table indicates what the gauge will display for any given state.
  • Page 35: Specifications

    Speed indicator and not damaged. 9. SPECIFICATIONS Model KP-12 KP-12T Description 12.5”~15” Seat Width Frame Aluminum-alloy Batteries Sealed lead acid batteries 22Ah x2pcs Max. Speed 6km/hr Motor 200W x 2pcs Range* (km) 13~16km Max. Safe Slope 8 degrees Brake System Automatic Electromagnetic Brake Controller PG Drives VR2...
  • Page 36: Warranty

    periodically (if not daily), especially after it is used in the rain or snow. We suggest that you don't use your wheelchair in the rain or snow. If you are traveling and get caught in the rain, we suggest you try to find shelter and turn OFF your wheelchair while waiting it out. If you can't find shelter, proceed to your destination.
  • Page 37: Warranty Policy

    3. Tampering by changing or adding components to the vehicle, which are not approved by KARMA; 4. Damage caused by using non-KARMA genuine parts or other parts not recommended by KARMA; 5. Abuse or misuse of the vehicle such as driving over curbs and overloading the wheelchair...
  • Page 38 11.2.5 Transfer of Warranty Rights If you purchase a second-hand KARMA wheelchair while it is still with in the warranty period, bring the Owner's Manual and the vehicle to the dealership where the wheelchair was purchased for registration.
  • Page 40 Karma reserves the right to modify information herein without further notice. 104-45020 Rev.04 2019.09...
