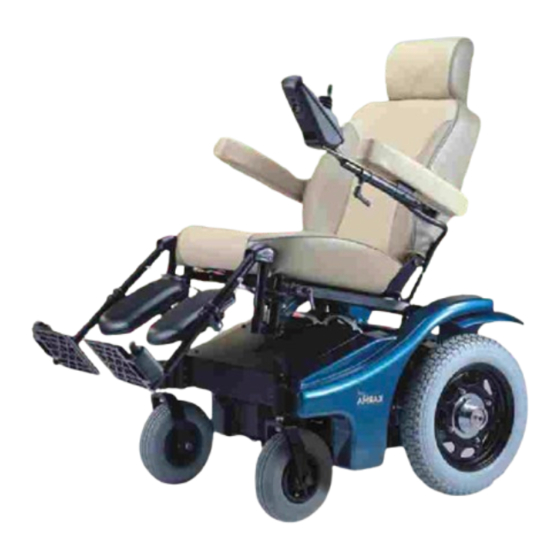

Karma KP-65TR User Manual

Power wheelchairs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
&
POWER WHEELCHAIRS
USER MANUAL
User: Before using this wheelchair,
Dealer: This manual must be given
read and understand this
to the user of the wheelchair.
manual thoroughly.
AS FDA
PRODUCT SERVICE
PRODUCT SERVICE
Production monitored
Safety tested

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-65TR and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KP-65TR

Summary of Contents for Karma KP-65TR

  • Page 1 & POWER WHEELCHAIRS USER MANUAL User: Before using this wheelchair, Dealer: This manual must be given read and understand this to the user of the wheelchair. manual thoroughly. AS FDA PRODUCT SERVICE PRODUCT SERVICE Production monitored Safety tested...

  • Page 2: Table Of Contents

    Contents Special Notes ..................1 Safety Guidelines ................... 3 1.0 KP-65 Introduction ................8 2.0 Safety and Consumer Information............12 2.1 General 2.2 Using KP-65 (Caution and Warning) 2.3 Notes for Attendants and Users 3.0 Wheelchair Operation ..............13 3.1 Preparing for Use 3.2 Entering and Exiting the Wheelchair 3.3 Prior to Driving 3.4 Battery Charger...

  • Page 3: Special Notes

    Special Notes Congratulations on your purchase of the Discovery Series (KP65) power wheelchair, well made by the Karma Medical Products, Co., Ltd. Please read the following guidelines. 1. This manual has been produced to help you make the most of your power wheelchair.
  • Page 4 Special Notes Warning *Do NOT operate the wheelchair without first reading and understanding this manual completely, otherwise injury or damage may result. *Performance adjustments and setup of the electronic control unit should ONLY be made by certified professionals of the healthcare field or persons fully conversant with this process and the driver's capabilities.

  • Page 5: Safety Guidelines

    Safety Guidelines and General Warnings 1. It is common for an inexperienced user to operate a wheelchair with extra care. As the user gradually gains experience, s/he may start to lose attention. Be sure to follow all the guidelines even if you are an experienced user.
  • Page 6 Safety Guidelines and General Warnings Warning *Do NOT climb, go up or down ramps greater than 9 degrees. *Do NOT move backward when going up or down slopes. *Do NOT traverse slopes greater than 5 degrees. *Do NOT engage or disengage the motor locks until the power is in the OFF position.

  • Page 7: Weight Training

    NOT been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair/seating system as a weight training apparatus, Karma shall NOT be liable for bodily injury and the warranty is void.
  • Page 8 Safety Guidelines and General Warnings The sources of radiated EMI can be broadly classified into three types: a) Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie talkies", security, fire, and police transceivers, cellular telephones, and other personal communication devices.
  • Page 9 EMI (as of May 1994) (the higher the level, the greater the protection); 2) The immunity level of this product is not known. Modification of any kind to the electronics of this wheelchair as manufactured by Karma may adversely affect the RFI immunity levels. Page 7...

  • Page 10: Introduction

    It also accommodates most after-market seating systems for additional needs. All Karma wheelchairs are tested rigorously in our own laboratory and also approved by the appropriate authorities in most major countries worldwide.
  • Page 11 KP-65 Introduction 1 . B a c k r e s t f r a m e R e a r w h e e l P o w e r r e c l i n e a c t u a t o r 1 0 .
  • Page 12 KP-65 Introduction S e a t i n g s y s t e m - - H e a d r e s t 9. Batteries- (beneath plastic cover) S e a t i n g s y s t e m - - B a c k r e s t 10.

  • Page 13: Specifications

    KP-65 Introduction Specifications Model KP-65 KP-65T KP-65TR Description Standard seat width 18" or 20" (Deluxe Captain Seat System) Optional with extra Charge 15"/16"/18"/20"/" (Interface Seat System) Aircraft grade aluminum alloy Frame Batteries 12V 50 A/H X 2pcs 1~13 km/hr Speed...

  • Page 14: Safety And Consumer Information

    KP-65 Safety and Consumer Information 2.0 Safety and Consumer Information 2.1 General The procedures in this manual should only be performed by a qualified service technician. Please pay particular attention to the cautions and warnings stated in the manual. Like any other moving vehicle, improper operation can cause bodily injuries to not only the users but also others.

  • Page 15: Notes For Attendants And Users

    Rotating calf pad design allows users to move the legrest outward, making it easier to move in or out of the wheelchair. The KP65 series also accept other types of Karma legrest systems. Removing footplate -- Release the locknut (figure a) on the screw connecting footplate and legrests.
  • Page 16 Wheelchair operation 3.1.2 Armrest The armrests are height adjustable. To make them higher, loosen the two mounting screws and move the armrest up by 3.5 cm, then retighten the screws. The armrests can also be flipped up 90 degrees to make entering and exiting the wheelchair easier. 3.1.3 Anti-tipper Installation Press the release button IN and insert the anti-tipper with anti- tipper wheels pointing toward the ground/floor into the support...

  • Page 17: Entering And Exiting The Wheelchair

    Wheelchair operation 3.1.5 Lightings The special purpose headlight uses high power 24V, 16W light bulb, providing ample lighting in the dark. The efficient LED is used for the turning signal and warning lights. 3.2 Entering and Exiting the Wheelchair Caution! *Do NOT stand on the footplates when entering or exiting the your wheelchair to avoid tipping-over.

  • Page 18: Prior To Driving

    Wheelchair operation 3.2.1 How to exit the wheelchair Step 1. Make sure the chair is as close as possible to your transfer point. Step 2. Turn OFF the controller power switch. Step 3. Turn up the footplates; swing calf pad outward to the side so they are not in the way.
  • Page 19 Wheelchair operation 3.3.2 Motor Clutch/Free-wheel The motor clutch/free-wheel is equipped to allow the wheelchair to be pushed when it is not powered. The clutch/free-wheel is designed for safe manual operation. It is positioned by the rear wheel hub. To disengage the motor for manual push: Pull the disc free-wheel outward (away from the wheel) and turn 45 degrees and release.

  • Page 20: Battery Charger

    Wheelchair operation 3.4 Battery Charger This will be supplied with the wheelchair and will have a main plug fitted for power supply connection. Another charge socket is fitted for connection to the controller charge port. Please see charger front panel and charger manual/instructions for more detail. Caution! *Do NOT expose the charger to heat such as a heater, direct sunlight, flame, etc.
  • Page 21 Wheelchair operation Please follow the following procedures to charge batteries: 1. Check that the ventilation slots on the charger are not blocked. 2. Check that the wheelchair is switched OFF. 3. Connect the charger output plug to the charging socket on the controller.
  • Page 22 Poor: Store fully charged and check 2 to 3 times a month, recharging as needed. Karma strongly recommends the use of deep cycle gel cell or sealed lead acid batteries. Failure to use the correct battery size and/or voltage may cause damage to your wheelchair and give you unsatisfactory performance.

  • Page 23: Controllers

    Wheelchair operation 3.5 Controllers Caution! *Before using this wheelchair, follow the list of checks in Section 5 Maintenance and Self Inspection. *Do NOT use this wheelchair before you are completely familiar with the operation of the controller. 3.5.1 General All controllers are factory set to the optimum performance for all conditions.
  • Page 24 Wheelchair operation 3.5.2 Controller Operation 1. The VSI control system has two versions of the control panel--with and without actuator control. Most of the controls are common to both versions. The actuator buttons, however, are only included on VSI control systems with seat actuator control. 2.
  • Page 25 Wheelchair operation 3.5.2 Controller Operation (continued) Wheelchairs with Two Actuators: Depressing either actuator button will enter actuator adjustment mode. If the LEFT actuator button (cushion tilt- in-space) is depressed the associated LED will be illuminated, and deflection of the joystick will adjust the actuator motor connected to cushion tilt channel.

  • Page 26: Wheelchair Operation

    Wheelchair operation 3.5.2 Controller Operation (continued) 6. Speed/Profile Decrease and Increase Buttons: The Speed/Profile Decrease Button (located on the bottom left of the control panel) decreases the maximum speed setting or, if the control system is programmed for drive profile operation, selects a lower drive profile.

  • Page 27: Driving The Chair

    Wheelchair operation 3.6 Driving the Chair Warning! Do NOT attempt to climb over steps or obstacles higher than 10 cm. 3.6.1 Driving Up or Down Slopes Going Up Slopes: 1.Ensure there is a minimum of 2.1 meters (7 ft.) of clear pavement after climbing the slope.
  • Page 28 Wheelchair operation 3.6.2 Slopes and Uneven Terrain It is very dangerous to attempt to go down a slope steeper than 9 degrees. This is because you will be unable to stop, as the wheels will skid when the brakes are applied. You will lose control and not able to steer or stop.
  • Page 29 Wheelchair operation 3.6.4 Attendant Control--manual propulsion When the wheelchair has to be pushed by an attendant, please note the following: The wheelchair motor clutch can be disengaged, allowing the wheelchair to free wheel for attendant propulsion. In this situation, the motor brakes are no longer effective. Therefore, do not attempt to manually push the wheelchair on any slopes since there are no brakes to control the wheelchair and it can easily run out of control.

  • Page 30: Transporting And Storage

    72 kg. Use proper lifting techniques and tools to avoid injury. Extreme caution is advised when it is necessary to move an UNOCCUPIED power wheelchair. Karma recommends using at least two (2) assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for handhold supports.

  • Page 31: Maintenance And Self-Inspection

    Maintenance and Self-Inspection 5.0 Maintenance and Self-Inspection The only maintenance required by the user is limited to cleaning, checking tires, battery care and charging. An authorized technician should perform any further maintenance that may be required. It is recommended that the wheelchair be inspected every 6 months and serviced every 12 months.

  • Page 32: Breakdown And Self-Inspection

    Maintenance and Self-Inspection 5.2 Breakdown and Self-Inspection Should the wheelchair fail while in use, switch OFF the power before performing any checks and inspections. Symptom: Complete loss of power and battery indicator light on controller goes out. Action: Make sure the controller plug/sockets have not come loose Check the circuit breaker under right hand chassis rail.

  • Page 33: Control System Status Indication

    Maintenance and Self-Inspection 5.3 Maintenance Checks B. Check the following at least once a month to make sure that they are effective and not loose or worn: The screws that mount controller/joystick to the armrest Automatic brake Free-wheel device Front castors Rear wheels Tire thread depth Charger and controller connection...
  • Page 34 Maintenance and Self-Inspection 5.4.4 Battery Gauge Blinks Once Every 2.5 Seconds The control system has "gone to sleep" because the wheelchair has not been driven for a period of time. The time period depends o n the programming of the system. To re-start, switch the system off and on again.

  • Page 35: Control System Self-Help Guide

    Maintenance and Self-Inspection 5.5 Control System Self-Help Guide If a system trip occurs, you can find out what has happened by counting the number of bars on the battery gauge that are flashing. Below is a list of self-help actions. Try to use this list before you contact your service agent.
  • Page 36 Maintenance and Self-Inspection 5.5 Control System Self-Help Guide(continued) A control system fault is indicated. Make sure Eight bar that all connections are secure. The parking brakes have a bad connection. Check the parking brake and motor connections. Nine bar Make sure the control system connections are secure.

  • Page 37: Options And Accessories

    Options and Accessories 6.0 Options and Accessories The standard options currently available include: * Lighting system and control * Seat cushion and backrest * Amputated thigh supports Important Note 1. Only approved accessories should be used. The KP65 is a very versatile chair that readily accepts authorized modification and additions.

  • Page 38: Dos And Don'ts Reminder

    DO'S & DON'TS Reminder 7.0 DO'S & DON'TS Reminder Take note of local conditions and plan your route carefully. Disconnect the charger before entering the chair Ensure the controller is switched OFF before entering or exiting the chair Ensure the free-wheel device is engaged before driving the chair Set the speed level to LOW before using the chair DO NOT Enter or exit the chair with the rear wheel disengaged...

  • Page 39: Limited Warranty

    Karma, or to a product damaged by circumstances beyond Karma's control, and such evaluation will be solely determined by Karma.

  • Page 40: Owner Information

    Owner Information Owner information Name:................Address:................................. Tel:.................. Power wheelchair information Series number:..............Color:................Size:................Date of purchase:............Dealer information Page 38...
  • Page 41 & ounded in 1987, Karma is the leading manufacturer of aluminum alloy wheelchairs in Taiwan and one of the leading manufacturers of lightweight power wheelchairs and scooters. An exporter of products to 35 countries, Karma works closely with its network of dealers to offer responsive customer service. We offer the best quality, most innovative products to our agents and our clients at an affordable price.
