Summary of Contents for IPC Eagle Barrel Vac S9429BV

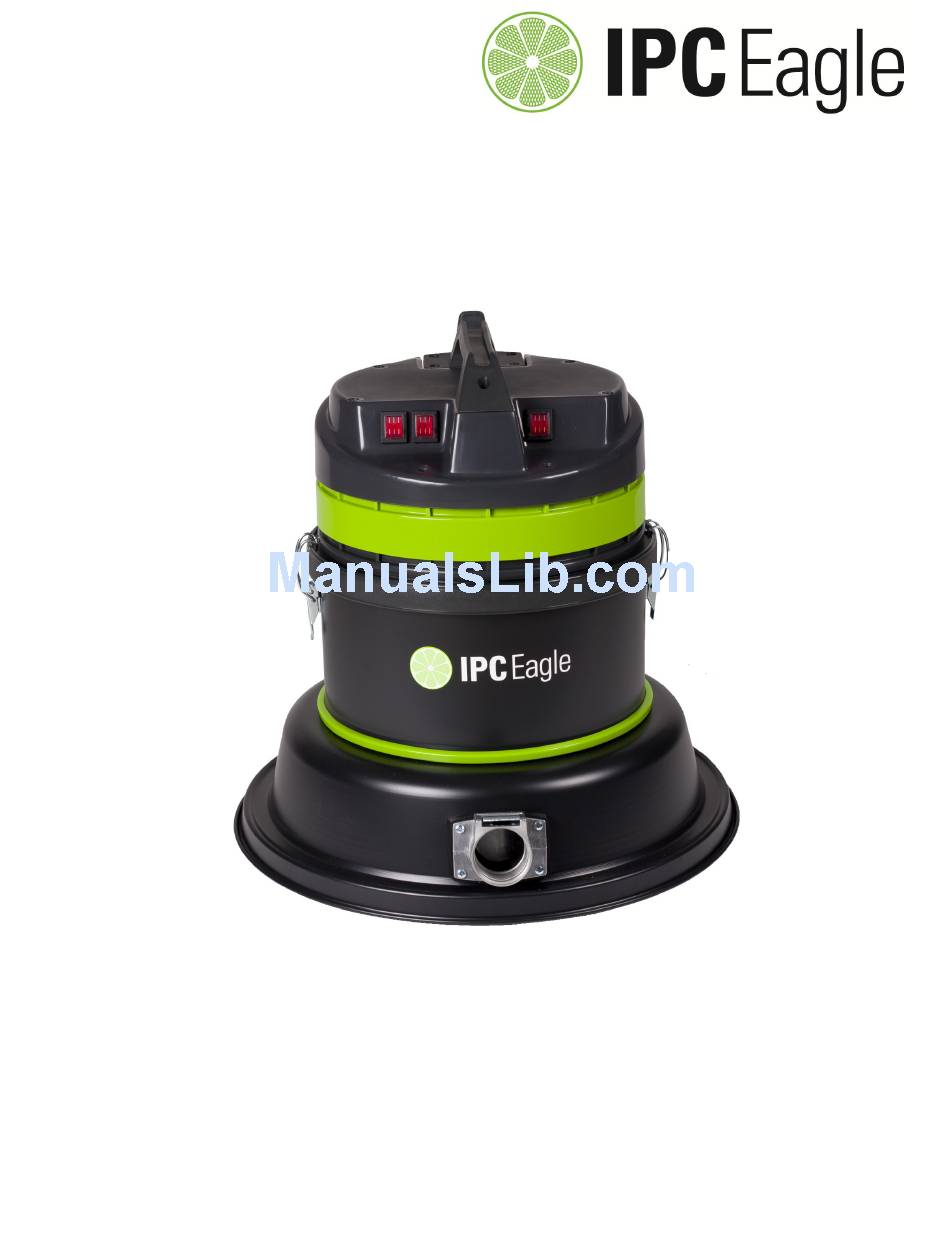

- Page 1 Industrial Vacuums Barrel Vac Operations and Parts Manual Models: S9429BV S9430BV S9433BV S9429SBV...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death. - Page 3 Warning: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.
- Page 4 120 Volt Machine Instructions For Connection To The Power Supply And The Electrical Ground This machine must be connected to the electrical ground to protect the operator from electrical shock. The machine has an approved power cord with three conductors and a plug with three terminals.
-
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS Before use the equipment must be correctly assembled with all of its components Check that the electrical outlet is correct for use with the plug on the machine Before connecting, check that the specified motor voltage corresponds to the main ... -
Page 6: Periodic Maintenance
Periodic Maintenance (Every six to twelve months) 1. Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. 2. Inspect gasket seals and replace those which have begun to leak. 3. Examine carbon motor brushes and commutator. Servicing The Filter The filter is accessed by lifting the head assembly off the tank. - Page 7 Servicing The Vac Motor Carbon Brush Replacement 1. Disconnect power cord from power source. 2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. 3. Remove the motor cover by removing two screws.
-
Page 8: Filter Group
Barrel Vac S9429BV Head Assembly H9429 T821802005 Power Cord 14/3 x 35’ S820881 Cord Strain Relief S82931AU Cord Guide Block S81054 Screw 5 x 50 S82930 Handle S81026 Screw 5 x 30 S81006 Screw 5 x 20 10 S81005 Screw 5 x 14... - Page 9 Barrel Vac S9430BV Head Assembly H9430 T80070 Power Cord 12/3 x 25’ S820881 Cord Strain Relief S82931AU Cord Guide Block S81054 Screw 5 x 50 S82930 Handle S81026 Screw 5 x 30 S81006 Screw 5 x 20 10 S81005 Screw 5 x 14 11 S83439 Terminal Block 12 S81054...
- Page 10 Barrel Vac S9433BV Head Assembly H9430 T80070 Power Cord 12/3 x 25’ S820881 Cord Strain Relief S82931AU Cord Guide Block S81054 Screw 5 x 50 S82930 Handle S81026 Screw 5 x 30 S81006 Screw 5 x 20 10 S81005 Screw 5 x 14 11 S83439 Terminal Block 12 S81054...
- Page 11 Barrel Vac S9429SBV Head Assembly H9429SH T80070 Power Cord 12/3 x 25’ S820881 Cord Strain Relief S80139 Clamp, Cord S81006 Screw 5 x 20 S82931AU Cord Guide Block S81054 Screw 5 x 50 S82930 Handle S81026 Screw 5 x 30 S81006 Screw 5 x 20 10 S81005...
- Page 12 Barrel Vac Ring S920751 (Complete) S87390 Latch Standard 2 Inch Diameter Accessories S81301 Rivet S820297 Inlet, Complete Bulk Hose—12 Feet— T80110 S82586 Gasket, Inlet Tank Inlet—S82773 S80725 Screw 5 x 25 Hose Cuff—UE200ES S81015 Nut M5 Chrome Wand—Three piece—S82364 S820749 Gasket, Lid Bristle Floor Tool—S83892...
-
Page 13: Warranty Policy
IPC Eagle will furnish and charge for replacement parts, including transportation, to the original owner through an IPC Eagle authorized service center. If the part is returned within 30 days and is found defective, the owner will be credited for the cost of the replacement part including shipping and handling.
