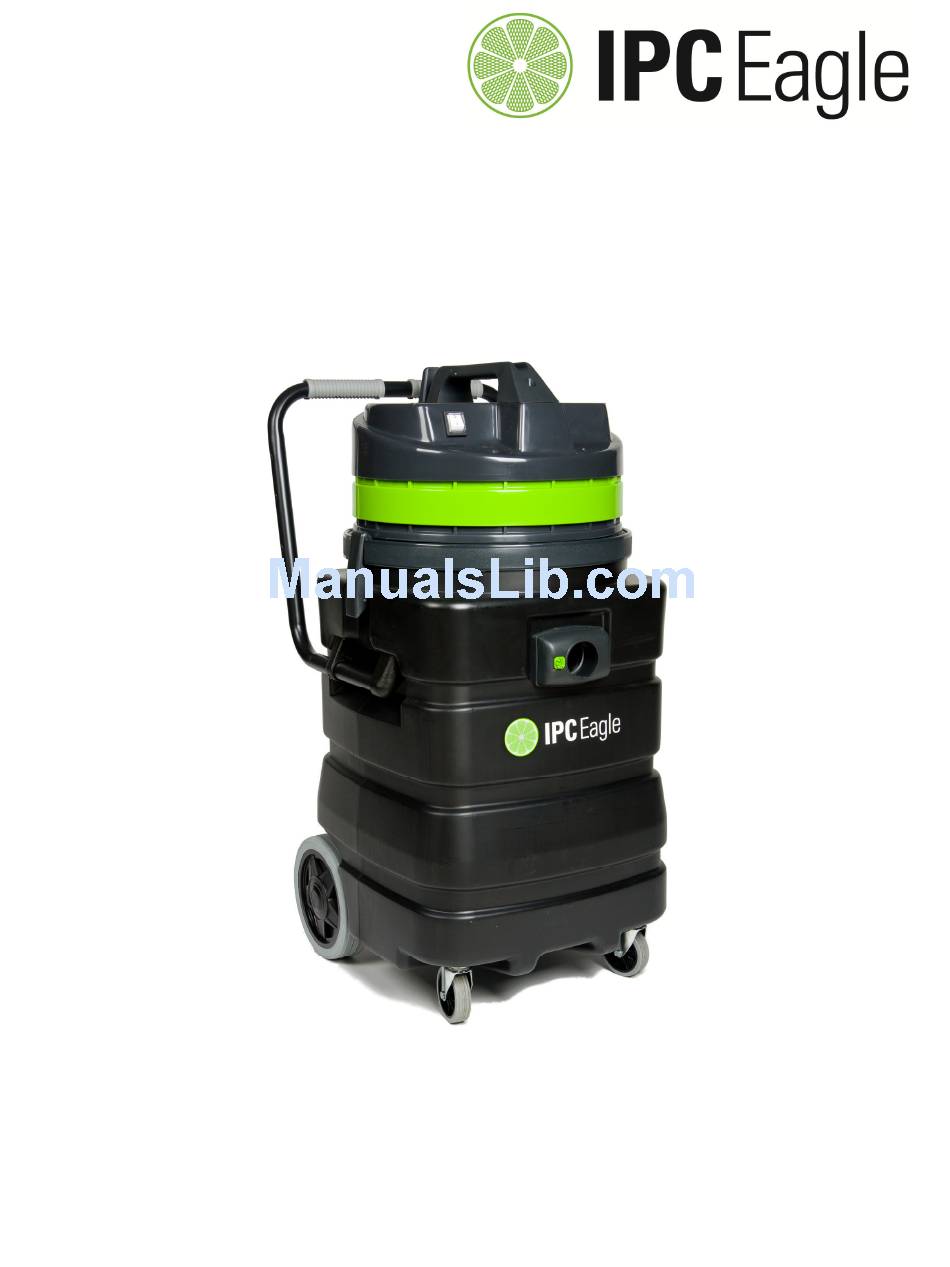

- Page 1 Industrial Vacuums 3 Flow Series Operations and Parts Manual Models: S9440P S9440PL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death. Read and observe all DANGER statements found in your Owner’s Manual and on your machine. - Page 3 Warning: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor. Warning: Electrical components can “short-out”...
- Page 4 120 Volt Machine Instructions For Connection To The Power Supply And The Electrical Ground This machine must be connected to the electrical ground to protect the operator from electrical shock. The machine has an approved power cord with three conductors and a plug with three terminals. Connect the plug to a receptacle that has three holes and is connected to the electrical ground.
-
Page 5: Important Instructions
Service and repair should be done by qualified personnel only. Use only original manufacturer’s • replacement parts. Operation S9440P This machine is a commercial vacuum designed for dry pick up only. The three motors run simultaneously, But turn themselves off one at a time cyclically to clean themselves. When emptying the machine or servicing the filters, make sure the Cyclonic Shield is inserted into the tank opening. -
Page 6: Servicing The Filter
IMPORTANT INSTRUCTIONS Before use the equipment must be correctly assembled with all of its components • Check that the electrical outlet is correct for use with the plug on the machine • Before connecting, check that the specified motor voltage corresponds to the main voltage available •... -
Page 7: Periodic Maintenance
Periodic Maintenance (Every six to twelve months) Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. Inspect gasket seals and replace those which have begun to leak. Examine carbon motor brushes and commutator. Servicing The Vac Motor Motor Replacement 1. - Page 8 Servicing The Vac Motor Carbon Brush Replacement 1. Disconnect power cord from power source. 2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. 3. Remove the motor cover by removing two screws. See Fig.
- Page 9 3 Flow S9440P & S9440PL...
- Page 10 3 Flow S9440P & S9440PL Item # Part # Description Qty. S80138/L Strain Relief, Cord S80139 Clamp, Cord S81006 Screw, 5 x 20 S82931AUG6 Block, Cord, Yellow S81054 Screw, 5 x 50 S82930G6 Handle, Yellow S81026 Screw, 5 x 30...
- Page 11 3 Flow S9440P & S9440PL Item # Part # Description Qty. S821625 O-Ring S821624 Frame, Filter S81005 Screw, 5 x 14 S821622 Filter, Cartridge S821623 Retainer S81732 Knob, M10 Item # Part# Description Qty. S820813 Cyclone, Shield...
- Page 12 3 Flow Poly S9440P Part# Description Qty. Part# Description Qty. S80904 Wheel, Rear S82558 Handle S82557 Retainer, Wheel S82637NE Tank, Poly 24g Black S83835NE Cap, Wheel S81026 Screw 5x30 S82607 Spacer, wheel S82584G6 Retainer, Tank S81006 Screw S82846 Gasket S82555...
- Page 13 3 Flow Plastic S9440PL Item# Part# Description Qty. S81847/SNE Latch, Head S81302 Rivet, 4.8 x 17 S820984 Tank S81979 Screw, 5 x 25 S821786 Inlet, Tangential S821647 Gasket, Inlet S821705 Support, Cyclone S81302NE Rivet, 4.8 x 17 S82993-1NE Handle, Tank S83883 Washer S81026...
- Page 14 3 Flow Plastic S9440PL Item# Part# Description Qty. S80918-1V Handle, Main S80917V Support, Handle S80913 “T”, Handle Support S81302NE Rivet, 4.8 x 17 S81302NE Rivet, 4.8 x 17 S80901NE-1 Base, Cart S81005 Screw, 5 x 14 S80915 Screw, 12 x 140 S81028 Washer, M12 S83835NE...
-
Page 15: Warranty Policy
IPC Eagle will furnish and charge for replacement parts, including transportation, to the original owner through an IPC Eagle authorized service center. If the part is returned within 30 days and is found defective, the owner will be credited for the cost of the replacement part including shipping and handling.
