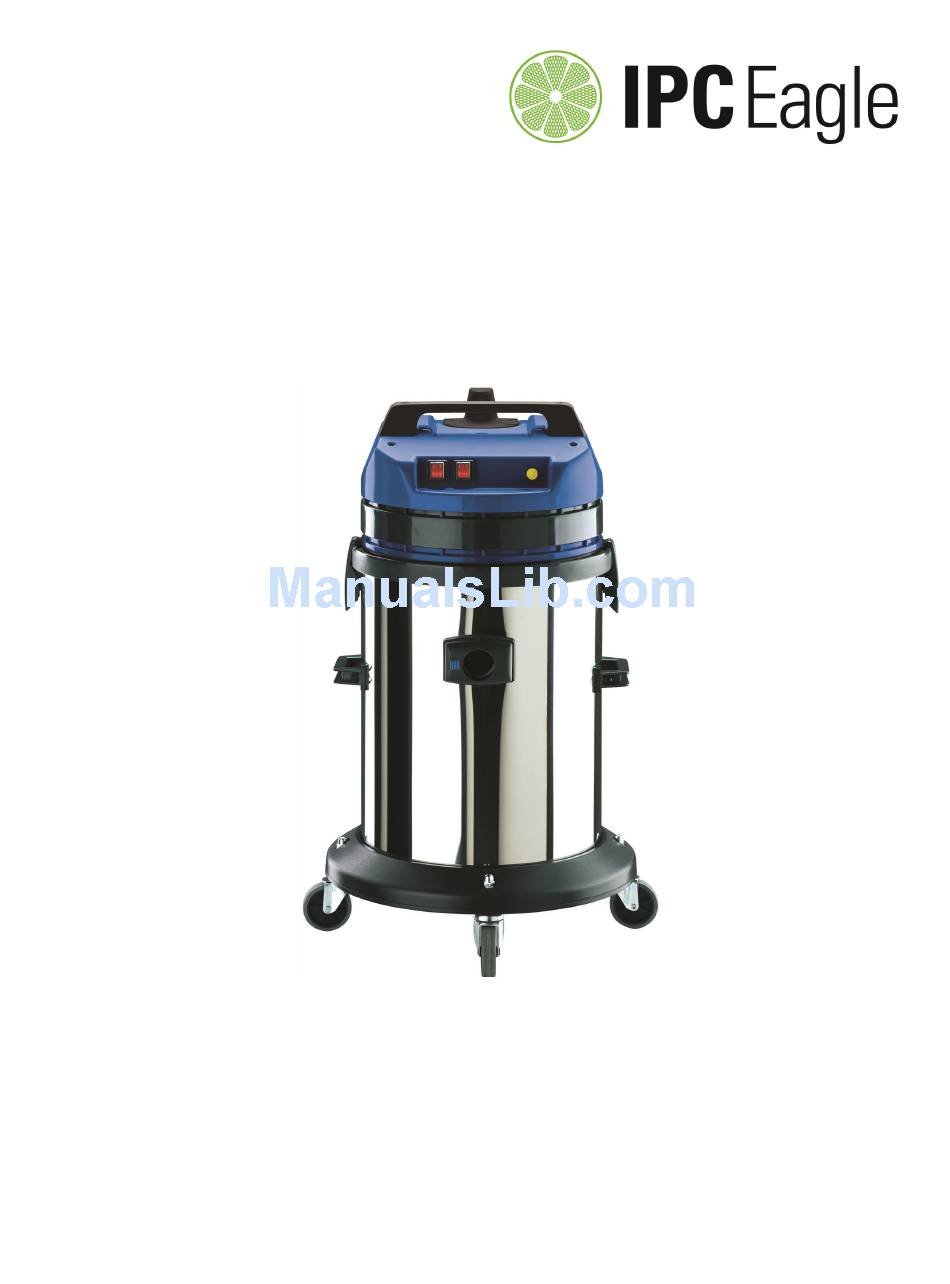

- Page 1 Critical Filtration Vacuums Pulsar Operations and Parts Manual Models: 429/H 429/M...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
- Page 4 Warning: Warning: Warning: Warning: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.
- Page 5 120 Volt Machine Instructions For 120 Volt Machine Instructions For 120 Volt Machine Instructions For 120 Volt Machine Instructions For Connection To The Power Supply And The Connection To The Power Supply And The Connection To The Power Supply And The Connection To The Power Supply And The Electrical Ground Electrical Ground...
-
Page 6: Operation
IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS Before use, the equipment must be correctly assembled with all of its components • Check that the electrical outlet is correct for use with the plug on the machine • Before connecting, check that the specified motor voltage corresponds to the main •... -
Page 7: Periodic Maintenance
Periodic Maintenance Periodic Maintenance Periodic Maintenance Periodic Maintenance (Every six to twelve months) (Every six to twelve months) (Every six to twelve months) (Every six to twelve months) 1. Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. 2. -
Page 8: Carbon Brush Replacement
Servicing The Vac Motor Servicing The Vac Motor Servicing The Vac Motor Servicing The Vac Motor Carbon Brush Replacement Carbon Brush Replacement Carbon Brush Replacement Carbon Brush Replacement (Replacement Carbon Brushes: Part# S8TOEG845 1. Disconnect power cord from power source. 2. - Page 9 429/H & 429/M Vacuum Motor Assembly Part # Description Qty. T82102005 Power Cord 14x3 S80138 Strain Relief S80139 Clamp, Cord S81006 Screw 5x20 S83032 Handle Block S81054 Screw 5x50 S83034 Handle S81050 Screw 5x35 S81006 Screw 5x20 S81005 Screw 5x14 S83439 Terminal Block S81054...
- Page 10 Filter Assembly 429/H & 429/M Part# Description Qty. S83735 Gasket S87765-1 Support, Cartridge Filter S83156 Screw 5x20 S87768 Filter, HEPA H Model S820221 Filter, HEPA M Model S82846 Retainer, Filter Optional Float Assembly Part # Description Qty. S83706 Bushing S83724 Screw 5x25 S821243NE Body Filter Assembly...
-
Page 11: Tank Assembly
Tank & Cart Assembly 429/H & 429/M Tank Assembly Part # Description Qty. S82993 Handle S81847 Latch S81301 Rivet 5x11 S83629 Screw 5x25 S83968 Spacer S80476 Tank S81026 Screw 5x30 S82586 Gasket S82846 Gasket S82593 Deflector S82652ANE Inlet, Complete Cart Assembly Item Part# Description... - Page 12 Tools Item Part# Description S72672 Complete Tool Kit S70003 Crevice Tool S76295 Round Brush S70008 Hose S76387 Wand, Straight S76389 Wand, Curved S76384 16” Floor Brush S76385 16” Floor Squeegee (Optional) S82333 Replacement Squeegee Blades S76388 Adapter...
-
Page 13: Warranty Policy
IPC Eagle will furnish and charge for replacement parts, including transportation, to the original owner through an IPC Eagle authorized service center. If the part is returned within 30 days and is found defective, the owner will be credited for the cost of the replacement part including shipping and handling.
