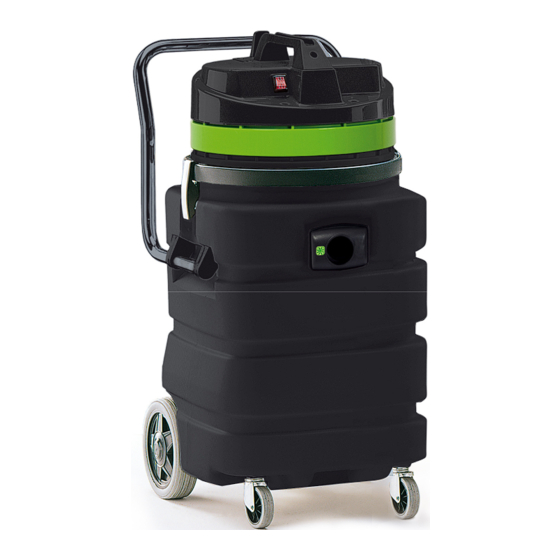

Summary of Contents for IPC Eagle 315P

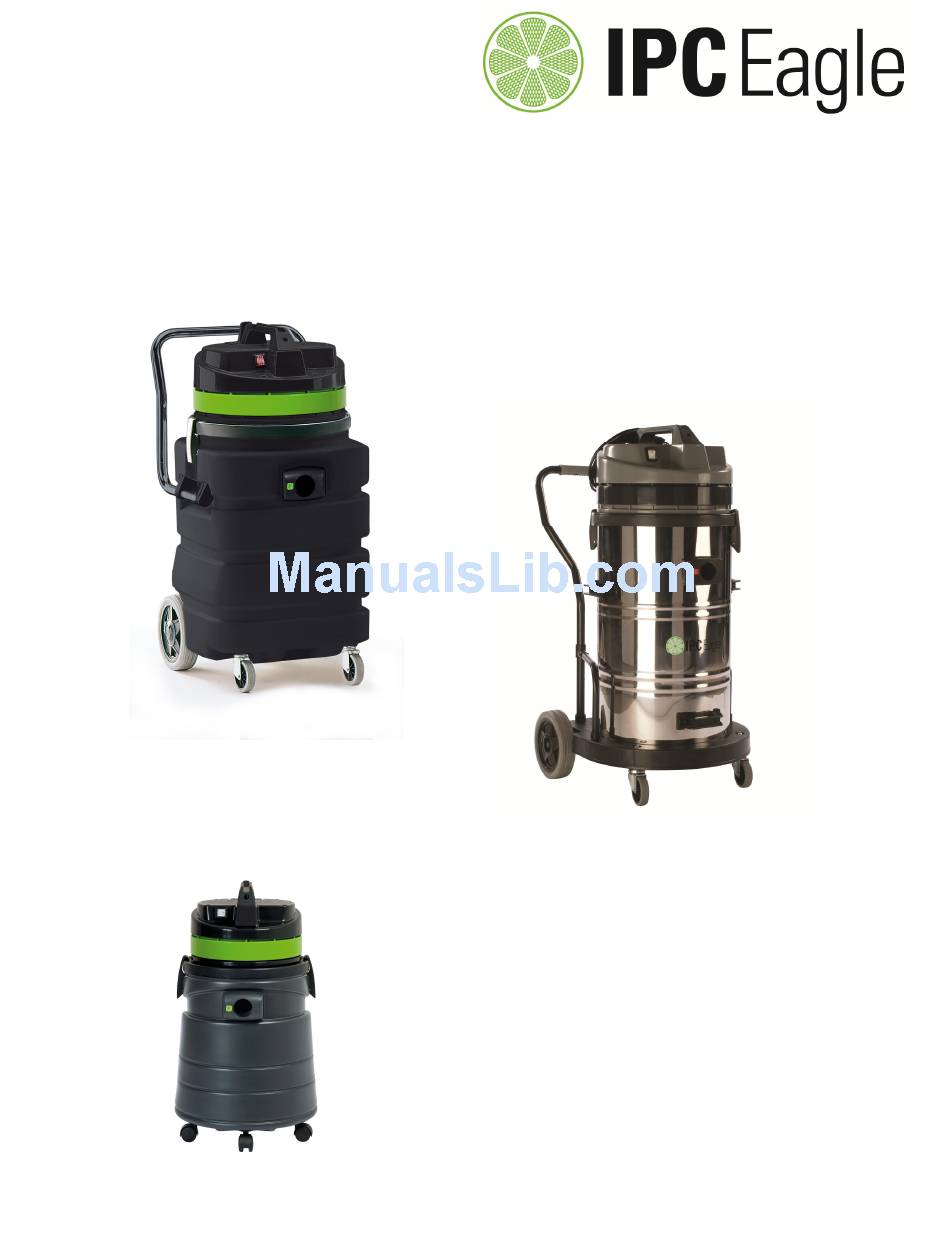

- Page 1 Wet/Dry Vacuums Polyethylene, Polypropylene, & Steel Operations and Parts Manual Models: 315P 415P 429P 430P 415S 415ST 415PLT...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
- Page 4 Warning: Warning: Warning: Warning: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.
- Page 5 120 Volt Machine Instructions For 120 Volt Machine Instructions For 120 Volt Machine Instructions For 120 Volt Machine Instructions For Connection To The Power Supply And The Connection To The Power Supply And The Connection To The Power Supply And The Connection To The Power Supply And The Electrical Ground Electrical Ground...
-
Page 6: Important Instructions
IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS IMPORTANT INSTRUCTIONS Before use, the equipment must be correctly assembled with all of its components • Check that the electrical outlet is correct for use with the plug on the machine • Before connecting, check that the specified motor voltage corresponds to the main •... -
Page 7: Periodic Maintenance
Periodic Maintenance Periodic Maintenance Periodic Maintenance Periodic Maintenance (Every six to twelve months) (Every six to twelve months) (Every six to twelve months) (Every six to twelve months) 1. Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. 2. - Page 8 Servicing The Vac Motor Servicing The Vac Motor Servicing The Vac Motor Servicing The Vac Motor Carbon Brush Replacement Carbon Brush Replacement Carbon Brush Replacement Carbon Brush Replacement (Replacement Carbon Brushes: Part# S8053200) 1. Disconnect power cord from power source. 2.
-
Page 9: Filter Assembly
315 Vacuum Motor Assembly Part # Description Qty. S81122 Power Cord S80138 Strain Relief S80139 Clamp, Cord S81006 Screw 5x20 S83444 Terminal Block S82928AUG6 Cord Hook S82627 Screw 5x40 S82927G6 Handle S81026 Screw 5x30 S81006 Screw 5x20 S81054 Screw 5x50 S81026 Screw 5x30 S82929AUG6... - Page 10 415 Vacuum Motor Assembly Part # Description Qty. S81122 Power Cord 16x3 S80138 Strain Relief S80139 Clamp, Cord S81006 Screw, 5x20 S82931AUG6 Cord Hook S81054 Screw 5x30 S82930G6 Handle S81026 Screw 5x25 S81006 Screw 5x20 S81005 Screw 5x14 S83436 Terminal Block S81054 Screw 5x30 S82932AUG6...
- Page 11 429 Vacuum Motor Assembly Part # Description Qty. T82102005 Power Cord 14x3 S80138 Strain Relief S80139 Clamp, Cord S81006 Screw, 5x20 S82931AUG6 Cord Hook S81054 Screw 5x30 S82930G6 Handle S81026 Screw 5x25 S81006 Screw 5x20 S81005 Screw 5x14 S83436 Terminal Block S81054 Screw 5x30 S82963AUG6...
- Page 12 430 Vacuum Motor Assembly Part # Description Qty. T80070 Power Cord 12x3 S820881 Strain Relief S80139 Clamp, Cord S81006 Screw, 5x20 S82931AUG6 Cord Hook S81054 Screw 5x30 S82930G6 Handle S81026 Screw 5x25 S81006 Screw 5x20 S81005 Screw 5x14 S83436 Terminal Block S81054 Screw 5x30 S82963AUG6...
- Page 13 Tank Assembly 315P Part# Description Qty. S82668 Complete Tank Assy. S82599 Tank, Black S81300 Rivet S81847 Clamp S81050 Screw 5x35 S82846 Gasket S82586G6 Retainer S82593 Deflector S82652AG6VE Inlet Cover S80558 Caster...
- Page 14 Tank and Cart Assembly 415P, 429P, 430P Part# Description Qty. Part# Description Qty. S82558 Handle S80904 Wheel, Rear S82637NE Tank, Poly 24g Black S82557 Retainer, Wheel S81026 Screw 5x30 S83835NE Cap, Wheel S82584G6 Retainer, Tank S82607 Spacer, wheel S82846 Gasket S81006 Screw S82593...
- Page 15 Tank Assembly 415ST Part# Description Qty. S82993 Handle S81847 Clamp, Tank S81302 Rivet 5x19 S83629 Screw 5x25 S83883 Washer S83253 Tank-Steel S81026 Screw 5x30 S82586 Adapter, Tank S82846 Gasket 10 S82593 Deflector 11 S82583 Adapter, Hose 12 S82594 Button 13 S82608 Spring 14 S82993 Handle...
- Page 16 Cart Assembly 415ST Part# Description Qty. S83250 Cart S80976 Plug S82557 Cap, End S80904 Wheel S83835 S81012 Washer S80478 S80479 Caster, Swivel S81979 Screw 5x25 S83450 Clip Pad S86250 Hand Grip...
- Page 17 Tank Assembly 415S Part# Description Qty. S82993 Handle S81847 Clamp, Tank S81302 Rivet 5x19 S83629 Screw 5x25 S83883 Washer S80476 Tank S81026 Screw 5x30 S82586 Adapter, Tank S82846 Gasket S82593 Deflector S82583 Inlet Cover S82594 Button...
- Page 18 Cart Assembly 415S Part# Description Qty. S82993 Handle S80917 Support, Handle S80913 T-Tube S81301 Rivet 5x11 S80902 Block S80914 Hand Wheel 8x60 S81402 Spring S81403 Plate, Threaded S81301 Rivet 5x11 S80901 Base, Cart S80915 Screw 12x140 S81028 Masher M12 S80904 Wheel S81401 Bushing...
- Page 19 Tank Assembly 415PLT Part# Description Qty. S81847 Clamp, Tank S81300 Rivet 5x24.5 S83773 Tank S81026 Screw 5x30 S82586 Adapter, Tank S82846 Gasket S82593 Deflector S82583 Inlet Cover S82594 Button S82608 Spring S83771 Bumper S82993 Handle S83883 Washer, Plastic S81026 Screw 5x30 S81026 Screw 5x30 S83883...
- Page 20 Cart Assembly 415PLT Part# Description Qty. S82053 Spring S82607 Spacer S82173 Lock, Plastic S81979 Screw 5x25 S83725 Clamp S83751 Shaft S83694 Handle S83835 Cap, Axle S82557 Cap, End S80904 Wheel S82607 Spacer S82980 Spacer S83752 Axle S81026 Screw 5x30 S82967 Support, Axle S81050 Screw 5x35...
- Page 21 Tools Item Part# Description S72672 Complete Tool Kit S70003 Crevice Tool S76295 Round Brush S70008 Hose S76387 Wand, Straight S76389 Wand, Curved S76384 16” Floor Brush S76385 16” Floor Squeegee S82333 Replacement Squeegee Blades S76388 Adapter...
-
Page 22: Recommended Spare Parts
Filters Part# Description Where Used S82860 Filter Bag, Standard Polyester 315 models S82845 Filter Bag, Standard Polyester 415/429/430 models S83742* Cartridge Filter, Paper 315 models S73742* Cartridge Filter, Polyester 315 models S82881* Cartridge Filter, HEPA Equivalent 315 models S82852* Cartridge Filter, Paper 415/429/430 models S76061* Cartridge Filter, Polyester... - Page 23 S70042 22” Front-Mounted Squeegee fits all 415/429/430 models Part# Description Qty. S82164 Handwheel 8x45 S82187 Small Block, Fixed S82163 Handwheel 6x25 S83115 Plate, Adjustment S82189 Driver Pivot S81033 Nut M8 S81732 Adjustment Knob S86137 Spring S82245 Squeegee, Rear S86138 Wheel S81034 Washer M8 S82177...
- Page 24 T80020 30” Front-Mounted Squeegee fits 415/429/430 models with Polyethylene Tanks Part# Description Qty. BD735602 Blade, Slotted BD735601 Blade, Solid BD7015509 Support, Blade BD735609 Nut, Nylock 1/4-20 BD715508 Housing Assy. BD735609 Nut, Nylock 1/4-20 BD735607 Wheel, Guide BD735608 Bolt, 1/4-20 x 1.75” BD705201 Lifting Arm Assy.
- Page 25 T80054 30” Front-Mounted Squeegee fits 415PLT Plastic Tipping Tank Part# Description Qty. T80021 Hose Assy. BD715508 Housing BD735608 Bolt, Guide Wheel 1/4-20 x 1.75” BD735607 Guide Wheel BD735611 Jam Nut 1/4-20 BD735603 Screw 10-32 x 5/8” BD735609 Nylock Nut 1/4-20 BD735605 Nylock Nut 10-32 BD735602...
-
Page 26: Warranty Policy
IPC Eagle will furnish and charge for replacement parts, including transportation, to the original owner through an IPC Eagle authorized service center. If the part is returned within 30 days and is found defective, the owner will be credited for the cost of the replacement part including shipping and handling.
