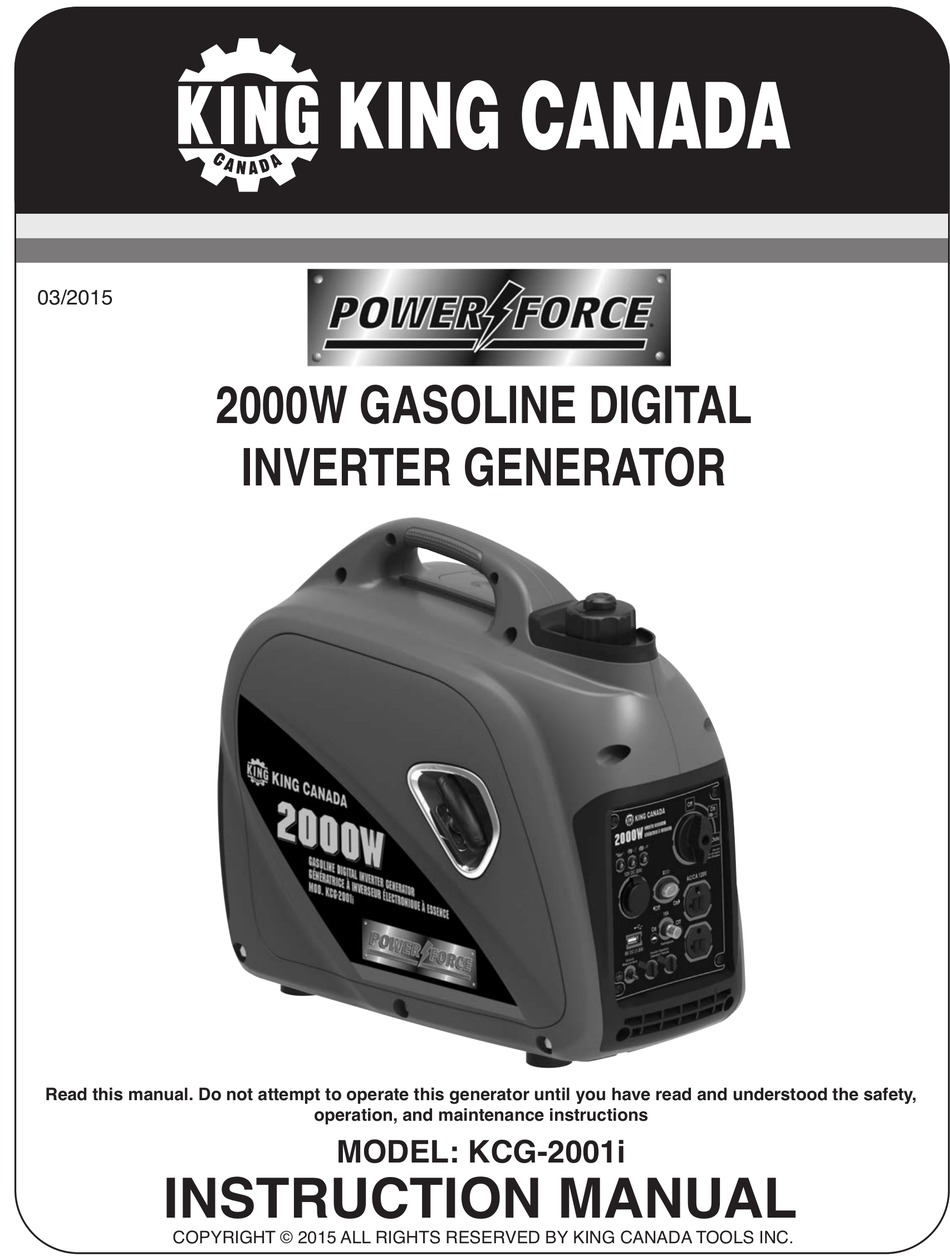

- Page 1 2000W GASOLINE DIGITAL INvERTER GENERATOR Read this manual. Do not attempt to operate this generator until you have read and understood the safety, operation, and maintenance instructions INSTRUCTION MANUAL MODEL: KCG-2001i COPYRIGHT © 2015 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty And Service Information
REPLACEMENT PARTS Replacement parts for this generator are available at our authorized KING CANADA generator service centers across canada. For serv- icing, call the above toll free number to get servicing instructions and be sure to have your proof of purchase if you are claiming warranty work. -
Page 3: Safety Precautions
BASIC & SPECIFIC SAFETY PRECAUTIONS BE CAREFUL! KEEP FLAMMABLE DO NOT USE DO NOT USE IN DO NOT CONNECT TO IN YOUR HOUSE MATERIALS AWAY WET CONDITIONS HOUSEHOLD CIRCUIT WHEN REFUELING; STOP ENGINE! NO SMOKING! DO NOT SPILL GASOLINE! BASIC SAFETY INFORMATION EXHAUST FUMES ARE DANGEROUS FUEL •Never operate the engine in a closed area or it may cause uncon-... -
Page 4: Specific Safety Precautions
SPECIFIC SAFETY PRECAUTIONS OPERATION OF GENERATOR IN RAIN, WET, ICY, OR FLOODED RISK OF BREATHING - INHALATION HAZARD CONDITIONS. Operate generator in clean, dry, well ventilated area. Never operate unit Water is an excellent conductor of electricity! Water which comes in con- in enclosed areas such as garages, basements, storage, sheds, or in tact with electrically charged components can transmit electricity to the any location occupied by humans or animals. - Page 5 7. Duplex AC 120v outlets. Plug up to 2-120V appliances or a power 16. Oil gauge dipstick. Check the oil level using this oil gauge dipstick. bar, make sure the amps requirement does not exceed max amps MODEL KCG-2001i Peak Wattage (starting) 2000W Running Wattage...
-
Page 6: Pre-Start Check
PRE-START CHECK ASSEMBLY Your Digital Inverter Generator comes completely assembled, please proceed to the pre- start check before attempting to start the engine. PRE-START CHECK WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. -
Page 7: Starting Procedures
STARTING PROCEDURES STARTING PROCEDURES GROUNDING WARNING! BEFORE STARTING, YOUR GENERATOR MUST BE GROUNDED! Before operating make sure to ground the generator. A ground terminal (A) Fig.4 identified by the ground symbol can be found on the front control panel of the generator, attach a metal spike to a wire, attach the wire to the ground terminal and ground the metal spike into the earth. -
Page 8: Electrical Connections
Plug voltage sensitive appliances such as TV's, VCR's, microwaves, ovens, computers, and cordless telephones. Overloading the generator will cause power fluctuations and can damage equipment and appliances. King Canada will not be responsible for equipment damaged as a result of voltage surges, improper operation or improper installation of the generator. -
Page 9: Wattage Calculations
WATTAGE CALCULATIONS WATTAGE CALCULATIONS DETERMINING WATTAGE REqUIREMENTS IMPORTANT! Never exceed the rated capacity of your generator. Seri- Before operating this generator, list all of the appliances and/or tools ous damage to the generator or appliance could result from an over- that are going to operate at the same time. -
Page 10: Maintenance
MAINTENANCE Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 50 hours or 6 months after. To replace engine oil; 1) Open rear access panel, then loosen and remove the oil gauge dipstick (A) Fig.8. 2) Tilt the generator forward and drain the oil from the engine. -
Page 11: Storage & Troubleshooting
1. Electrical short in connected item. 1. Disconnect shorted load. down when loads are connected 2. Overloaded. 2. Reduce load. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
