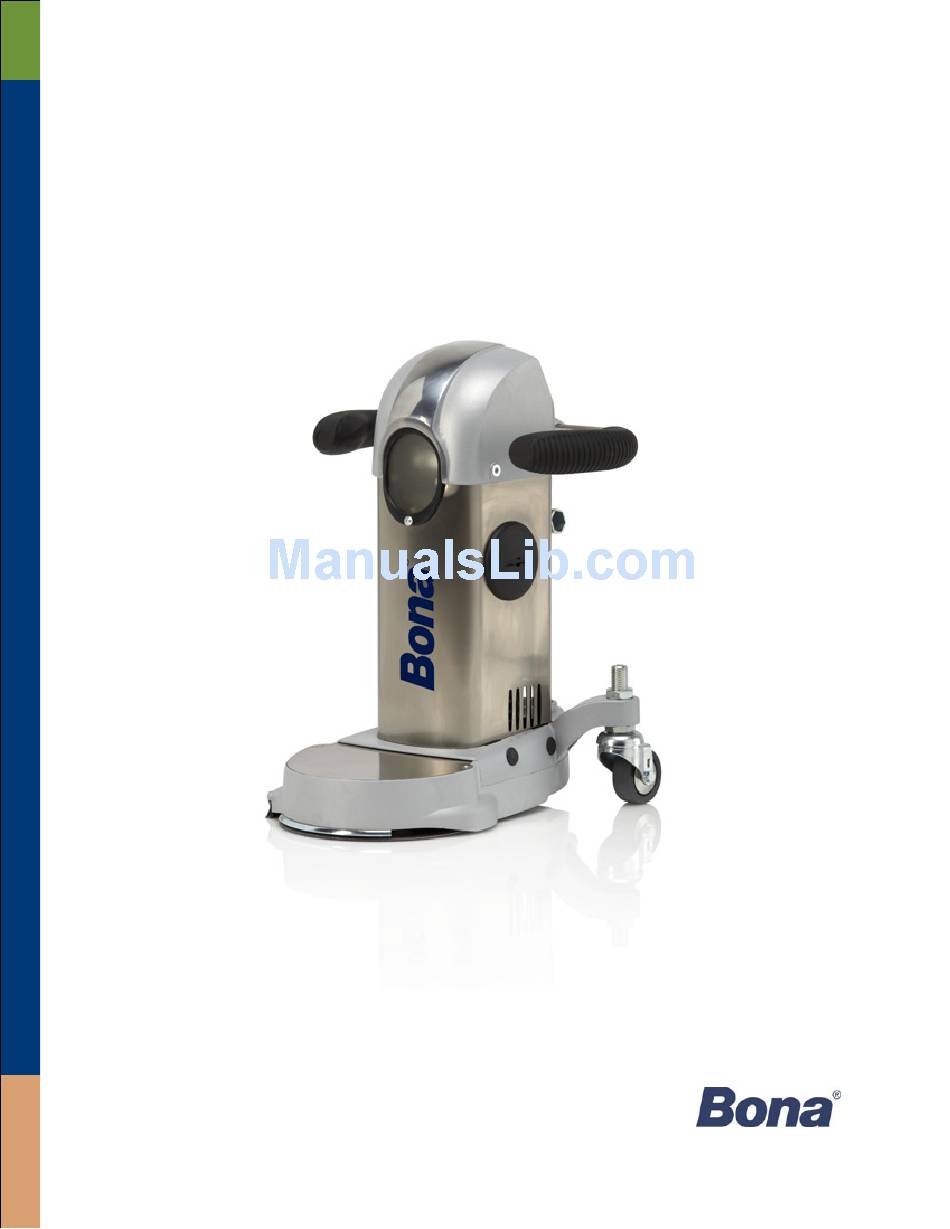

- Page 1 Bona Edge Manual and safety instructions AM0003135 | AM0003196 | AMO230009.3 | AMO230010.3 | AMO230018.3 Translation of manual in originals v1.0...
- Page 2 2. Safety instructions 3. Repairs, Service and maintenace a. Service b. Spare parts and exploded views 4. Warranty 5. Bona Edge in general 6. Handling 9-16 a. Use of the machine b. Working method c. Assembly and replacing the dustbag d.
-
Page 3: Technical Data
Carefully read through the entire user manual before you begin working with the machine. If anything is unclear, turn to your reseller with confidence or to Bona Safety instructions Read through the safety instructions carefully and inform your employees and users, so no one comes to harm when using the machine. - Page 4 Bona Edge DANGER means that you or other staff can suffer a serious injury or death if THE INSTRUCTIONS MARKED WITH DANGER ON THIS MACHINE OR IN THESE USER INSTRUCTIONS are ignored or are not followed. Read the entire user manual before you use the machine.
- Page 5 Never use a machine for anything else other than sanding, polishing and oiling of wooden floors. Service or repairs performed by unauthorised persons can cause damage or accidents. If service and repairs are performed by unauthorised persons, the warranty may become invalid. Service and repairs must be performed by Bona or retailers authorised by Bona.
- Page 6 The machine may never be cleaned using a high pressure washer or hose. Spare parts and exploded views On the Internet, you will find a list of spare parts and exploded views for Bona Edge and other machines in our product range.
- Page 7 During the factory warranty period, service or repairs may only be carried out upon approval by a manager at Bona Division Sanding and only performed by staff at Bona AB or approved staff at Bona AB Division Sanding.
-
Page 8: Machine Use
Bona Edge Machine use: The machine is intended for the edge sanding of wooden floors, parquet floors as well as cork floors. It maybe used on newly laid and untreated floors and existing floors that have been treated with lacquer or oil. -
Page 9: Wheel Adjustment
The angle of the handles can be adjusted for a more comfortable working position. Use Torx wrench T30. Dust collection 2. When emptying the dust For minimal dust discharge Bona ’s original bag, remove the dust tube, together with the dust dust bags shall always be bag, completely, open the used. - Page 10 N.B. Changing sanding material must be made on an unconnected machine! Never start the machine before a sanding disc is attached. Lay the edge sander 2. Always use Bona’s sanding 3. Check that the sanding carefully on its left side.
- Page 11 Bona Edge Replacing the cogged belt (220mm and 330mm arm). 1. Remove the 4 belt cover screws. 2. Remove the 4 bolts by the motor bracket. 3. Lift the motor bracket of the sanding arm. 4. Remove the screw and washer, loosen the stop screw and then remove the fan together with the plate.
- Page 12 Bona Edge Changing the cogged belt (130mm arm) 1. Undo the 2 belt cover Remove the pulley Loosen the 4 bolts in the motor screws. screw. bracket. 4. Gently tap with a centre punch to loosen the pulley. Remove the sanding 6.
- Page 13 Bona Edge 10. Tighten the screw and washer as well as the stop screw 11. Place the pulley in its right position. 12. Remount the sanding arm. 13. Replace the four screws. 14. Place a screwdriver in the hole and press N.B.
-
Page 14: Replacing The Brushes
Bona Edge Replacing the brushes 1. Regularly check the carbon Remove the brush cover. brushes. The brushes were out more quickly at higher loads. And should be changed in pairs after approx. 100 hours normal operating time. Open the brush cover with i.e. a coin 4. - Page 15 Bona Edge Changing the halogen lamp. Changing the Wheels...
-
Page 16: Troubleshooting
Bona Edge Trouble shooting Problem Cause/Fault Action No power Change to another wall socket. The machine doesn’t Broken cable. Change the cable. start Rotation of the disc is Rotate the sanding disc, remove impossible possible blockages. Check that the ventilator runs smoothly. - Page 17 EU assurance of conformity As per directive 2006/42/EC, Annex 2A We hereby guarantee that Bona FlexiDrum with article number: AM0003135 | AM0003196 | AMO230009.3 | AMO230010.3 | AMO230018.3 beginning from serial number 1001AMO230001 fulfils the requirements in the Council’s directives: 2006/42/EC on machines.
