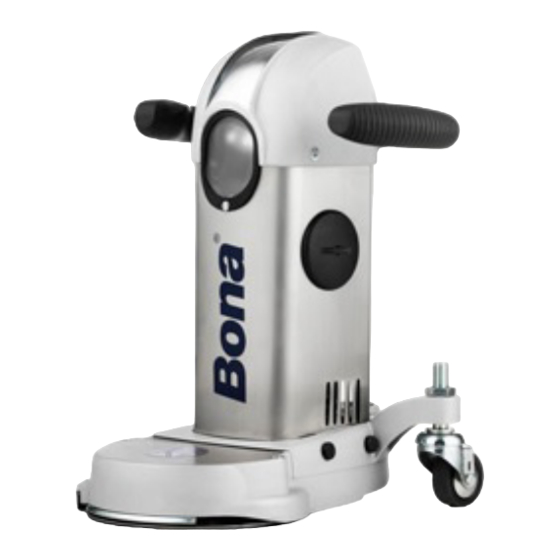

Bona Edge AMO230009.3 Operating Manual
  1. Manuals
  2. Brands
  3. Bona Manuals
  4. Edger
  5. Edge AMO230009.3
  6. Operating manual

Bona Edge AMO230009.3 Operating Manual

Hide thumbs Also See for Bona Edge AMO230009.3:
Table of Contents

Advertisement

Quick Links

Bona Edge
by
AMO230009.3 - AMO230018.3
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bona Edge AMO230009.3 and is the answer not in the manual?

Questions and answers

Related Manuals for Bona Bona Edge AMO230009.3

Summary of Contents for Bona Bona Edge AMO230009.3

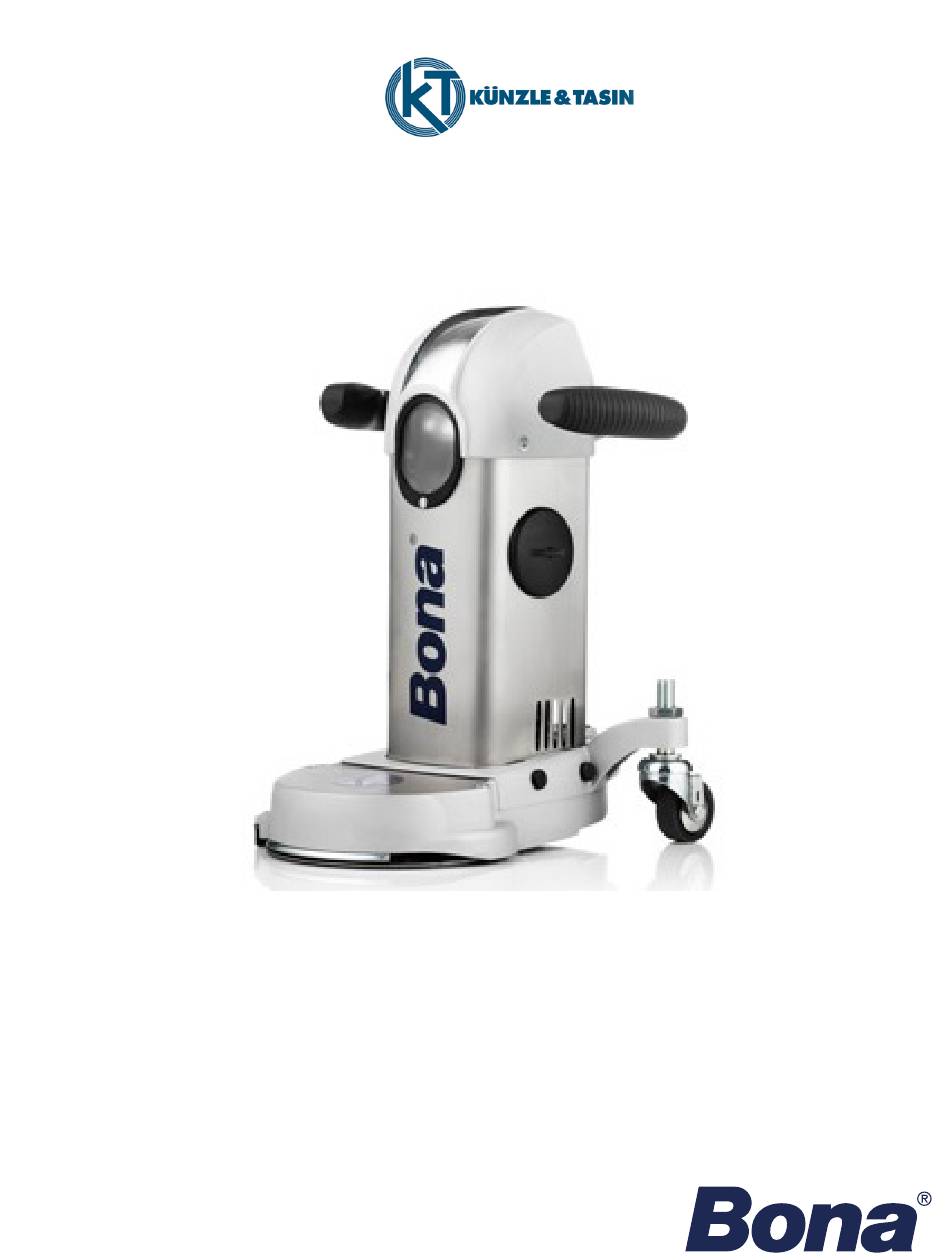

  • Page 1 Bona Edge AMO230009.3 - AMO230018.3 Operating Manual...
  • Page 2 If anything is unclear, turn to your reseller with confidence or directly to Bona AB. Keep this manual for future reference. This manual is an English translation of the original version in Italian. For a new manual contact:...

  • Page 3: Table Of Contents

    Handle adjustment Abrasive assembly procedures Routine Maintenance Replacing the Velcro disc Replacing the cogged belt Bona Edge 220 mm Replacing the cogged belt Bona Edge 130 mm Replacing to an other sanding arm Replacing the carbon brushes Replacing the halogen lamp...

  • Page 4: Machine Specifications

    Machine Specifications Bona Edge Manual Motor Type: 1 phase Voltage (±5 %): 230 VAC Frequency: 50 Hz Power: 2.0 kW Rated Current: 10 A Reccomended Fuses: 10 A Motor Insulation: Motor Protection: IP54 Sanding Speed Disc: Approx. 3000 rpm normal load...

  • Page 5: Machine Key Symbols

    Read and follow all 'CAUTION' alerts on this machine or in this manual. Failure to read the Bona Edge machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects.
  • Page 6 Operator Safety (Cont.) Bona Edge Manual Sanding may create an explosive environment. Cigarettes, cigars, pipes, lighters, pilot flames, or any other source of fire may create an explosion, if lit during sanding operations. All sources of ignition should be removed entirely from the work area.

  • Page 7: Storage

    Operator Safety (Cont.) Performing maintenance or replacing the dust bag may cause injury to the operator or people nearby, if the machine is connected to the power supply. Always unplug the machine when not in use. DO NOT use solvents or other flammable products to clean this machine. Dry use only.

  • Page 8: Introduction

    If a situation arises which has not been described in this manual, contact your distributor or Bona Representative. The Bona Edge machine is suitable for the dry sanding of floors. Any other use without the consent of the manufacturer is prohibited. DO NOT use on wet floors.

  • Page 9: Commencing Operation

    Commencing Operation Instructions for electrical connection This machine only operates with the voltage and frequency shown on the machine data plate. Before connecting the cable to the power supply ensure the correct voltage and frequency are available. DO NOT expose the machine to rain. This machine is intended for dry use only. Keep the machine in a dry building and DO NOT use it in damp or wet places.

  • Page 10: Prevention Measures For User

    Prevention Measures for Users Bona Edge Manual Instructions on removing sawdust generated during use Sawdust can ignite spontaneously and cause injury or damage. It must be disposed of appropriately. Always empty the sawdust into metal containers which are located outside the building.

  • Page 11: Instruction On Correct Machine Use

    Instructions on Correct Machine Use Read this manual carefully and become familiar with the machine. The equipment is suitable for industrial use (e.g. in hotels, schools, hospitals, offices, factories and shops). The following information highlights particularly hazardous situations for the operator and/or machine. Understand when these conditions may be present.

  • Page 12: Machine Use

    Starting Machine Description Bona Edge Manual Machine use The machine is intended for the edge sanding of wooden floors. It maybe used on newly laid and untreated floors and existing floors that have been treated with lacquer or oil. The main function of the machine is to serve as a complement to a belt or a drum sander for sanding edges.

  • Page 13: Starting Machine Description

    Starting Machine Description Starting the machine (Cont.) Locate the power supply. The socket must be compatible with the Raise the disc so that the machine is only resting on the floor with plug. To avoid electrical hazards the socket must be grounded with its wheels.

  • Page 14: Machine Adjustment Procedures

    Dust collection When emptying the dust bag, remove the dust tube, For minimal dust discharge Bona's original dust together with the dust bag, completely, open the bags shall always be used. The dust bag must be zipper and empty the contents.

  • Page 15: Handle Adjustment

    Machine Adjustment Procedures (Cont.) Handle Adjustment The angle of the handles can be adjusted for a more comfortable working position. Use Torx wrench T30. Keep the handle clean and free from grease. Abrasive assembly procedures Lay the machine carefully on its left side. Ensure the electric cable is disconnected from the power.
  • Page 16 Machine Adjustment Procedures (Cont.) Bona Edge Manual Abrasive assembly procedures (Cont.) If abrasive paper with hole is to be used, proceed as follows: Lay the machine carefully on its left side. Ensure the electric cable is disconnected from the power.

  • Page 17: Routine Maintenance

    Check that the disc is centered: a disc that is not Glue a new Velcro disc on the steel plate. centered may cause unbalances and vibrations. Replacing the cogged belt Bona Edge 220 mm Remove the 4 belt cover screws. Remove the 4 bolts by the motor bracket.
  • Page 18 Routine Maintenance (Cont.) Bona Edge Manual Replacing the cogged belt Bona Edge 220 mm (Cont.) Remove the screw and washer, loosen the stop screw and then Lift the motor bracket of the sanding arm . remove the fan together with the plate.

  • Page 19: Replacing The Cogged Belt Bona Edge 130 Mm

    Routine Maintenance (Cont.) Replacing the cogged belt Bona Belt 130 mm Undo the 2 belt cover screws. Loosen the 4 bolts in the motor bracket. Gently tap with a center punch to loosen the pulley. Remove the pulley screw. Remove screw and washer as well as the stop Remove the sanding arm.
  • Page 20 Routine Maintenance (Cont.) Bona Edge Manual Replacing the cogged belt Bona Edge 130 mm (Cont.) Remove the pulley/ventilator together with the belt and Mount a new belt together with the ventilator and cover plate. cover plate. Make sure that the cover plate is fitted in its right position.
  • Page 21 Routine Maintenance (Cont.) Replacing the cogged belt Bona Edge 130 mm (Cont.) Replace the 4 screws. Place a screwdriver in the hole and press forward N.B. Do not tighten the screws! to tighten the belt. Remount the Velcro disc, pulley screw and the nut Tighten the 4 screws while holding the sanding arm in its for the Velcro disc.

  • Page 22: Replacing To An Other Sanding Arm

    Routine Maintenance (Cont.) Bona Edge Manual Replacing to an other sanding arm Proceed in the same way as for 'Replacing the cogged belt '. Replacing the carbon brushes Regularly check the carbon brushes. The brushes were out more quickly at higher loads. And should be changed in pair after approx.

  • Page 23: Replacing The Halogen Lamp

    Replacing the halogen lamp Remove the screw (A) on the rubber gasket for glass. Remove the 2 screws on the either sides of cap Bona Edge. Replace the halogen lamp. Replacing the wheels Remove the nut holding the wheel pin with a screwdriver (A).

  • Page 24: Troubleshooting (For The User)

    Troubleshooting (for the user) Bona Edge Manual PROBLEM CAUSES SOLUTIONS No power Replace to an other wall socket The machine does not Broken cable Replace the cable start Rotate the sanding disc, remove possible blockages and Rotation of the sanding disc is impossible...

  • Page 25: Service, Maintenance And Spare Parts

    When you contact Bona or staff approved by Bona in the event of a fault or to order spare parts, always specify the type and serial number of your machine. This information is located on the data plate of the machine.

  • Page 26: Warranty

    There is a 24 month factory warranty (from the date of invoice) against material and manufacturing faults. In the event of a warranty claim, the machine or agreed upon part must be returned to Bona or staff approved by Bona with paid freight for warranty testing and for potential repair or replacement under warranty.

  • Page 27: Declaration Of Conformity

    20092 – Cinisello Balsamo (MI) - Italy Manufacturer and entity authorized to compile and maintain the technical file, declare that under our sole responsibility the product Bona Edge EDGE SANDER to which this declaration refers, is compliant with the following Directives: 2006/42 EC (Machinery Directive), 2014/30 EU (EMC Directive), 2011/65 EU (RoHS Directive), 2012/19 EU (WEEE Directive).

  • Page 28: Disposal

    Disposal Bona Edge Manual Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare, portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche.
  • Page 29 Additional Notes...
  • Page 30 Additional Notes Bona Edge Manual bona.com...
  • Page 31 Additional Notes...
  • Page 32 2016 Edition bona.com...
