- Page 1 Bona Dual Edge Operating and maintenance manual GEEN118...
-
Page 2: Foreword
Foreword Bona Dual Edge Manual ATTENTION: This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or servicing this machine could cause injury or damage to persons or objects. -
Page 3: Table Of Contents
Table of Contents Foreword Table of Contents Machine Symbols Key Operator Safety Storage Transporting and Handling With one person Introduction Safe and correct use Machine data plate Commencing Operation Instructions for electrical connection Cables, extensions and plugs Removing sawdust generated during use Prevention Measures for Users Personal safety measures Compliance with safety measures and warnings... -
Page 4: Machine Symbols Key
Read and follow all 'CAUTION' alerts on this machine or in this manual. Failure to read the Bona Dual Edge machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects. - Page 5 Operator Safety (Cont.) Sanding/finishing wood floors can create an environment that can be explosive. The following safety procedures must be adhered to: • Cigarette lighters, pilot lights, and any other sources of ignition can create an explosion when active during a sanding session. All sources of ignition should be extinguished or removed entirely, if possible, from the work area.
-
Page 6: Storage
Operator Safety (Cont.) Bona Dual Edge Manual Injury to the operator or bystanders could occur if the machine is plugged in while performing maintenance, servicing, changing filter, or inspecting. Always unplug machine when not in use. DO NOT use solvents or other flammable products to clean this machine. -
Page 7: Transporting And Handling

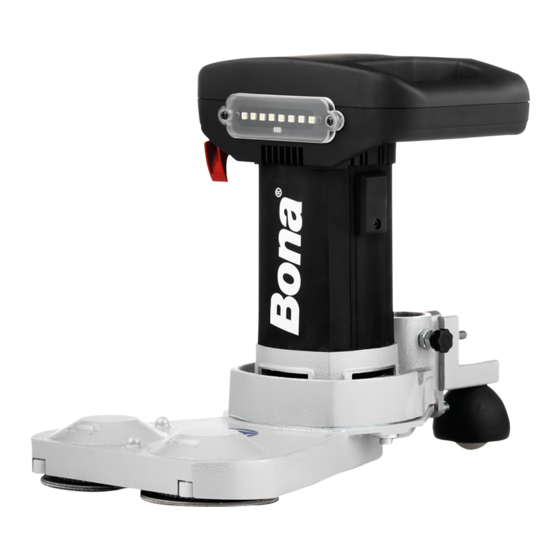

If a situation arises which has not been described in this manual, contact your distributor or Bona Representative. The Bona Dual Edge wood floor steering sander is designed for the dry sanding of wood floors. Any other use without the consent of the manufacturer is prohibited. -
Page 8: Machine Data Plate
Introduction (Cont.) Bona Dual Edge Manual Machine data plate Machine model Safety symbols Motor power Frequency Supply voltage Country of manufacture Year of manufacture (see 9) Name of the manufacturer Serial number: • The first two numbers refer to the year of manufacture (14 = 2014) •... -
Page 9: Cables, Extensions And Plugs
Commencing Operation (Cont.) Instructions for electrical connection (cont.) Tampering with the grounding plug in any way may result in death from electrocution. DO NOT cut, remove or break the grounding plug. If the socket does not match the plug consult a qualified electrician. Do not use the machine if the switch malfunctions If the machine is used with a damaged plug or power supply cable, death may occur from electrocution. -
Page 10: Removing Sawdust Generated During Use
Commencing Operation (Cont.) Bona Dual Edge Manual Removing sawdust generated during use Sawdust can ignite spontaneously and cause injury or damage. It must be disposed of properly. Always empty sawdust into metal containers located outside the building. Empty the contents of the dust bag when it is 1/3 full. - Page 11 Prevention Measures for Users (Cont.) Compliance with safety measures and warnings (cont.) The sanding machine may create an explosive environment. Cigarettes, cigars, pipes, lighters, pilot flames, or any other source of fire may create an explosion if lit during sanding operations. No sources of fire should be kept near the work area.
-
Page 12: Instructions On Correct Machine Use
Prevention Measures for Users (Cont.) Bona Dual Edge Manual Compliance with safety measures and warnings (cont.) Failure to comply with instructions on this machine and in this manual may cause serious injury and/or damage. Read and comply with all safety instructions. Ensure that all plates, labels, warnings and instructions are secured to the machine. -
Page 13: Machine Control Instructions
Machine Control Instructions The Bona Dual Edge is defined as a steering sander due to its innovative control characteristics (patent pending). The point of pressure is related to the chosen direction whereby the pressure exerted on one side moves the machine in the same direction. Therefore, the machine moves left and right on the basis of the force and pressure applied to the handles. -
Page 14: Machine Specifications
Machine Specifications Bona Dual Edge Manual Abrasive Disc Size: 2x Ø 100mm Disc Size: 2x Ø 100mm Disc Speed: 4500rpm Motor Speed: 14000rpm Motor: (A40) EU — 230V~50Hz — 1.15kW ™ Disc Tilt Control: Adjusting the height of the rear wheel support OMNICASTER... -
Page 15: Machine Warnings
Machine Warnings Prohibited use Children should be supervised to ensure that they do not play with the appliance. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabil- ities, or lack of experience and knowledge unless they have received instructions regarding the use and are supervised by a person responsible for their safety. -
Page 16: Starting The Machine
Starting the Machine Bona Dual Edge Manual To start the machine proceed as follows: Become familiar with the machine and read all instructions & safety Bring the machine to the place of work. If the machine has been notices. Ensure that all operators read this manual. - Page 17 Starting the Machine (Cont.) Locate the power supply. The socket must be compatible with the plug. Connect the plug to the socket. Raise the discs so that the machine is only resting on the floor with Keep the machine moving when the discs are lowered and in its rear wheel.
-
Page 18: Machine Adjustment Procedures
Machine Adjustment Procedures Bona Dual Edge Manual Abrasive assembly procedures Ensure the electric cable is disconnected from the power. Turn the machine over, resting the handles on the floor. Remove the worn abrasive paper discs Ensure the velcro-backed discs are clean and from the velcro-backed discs. -
Page 19: Routine Maintenance
Routine Maintenance To keep the machine in good working condition the following items must be checked and serviced regularly. Sawdust chamber (for the user) Vacuum the sawdust chamber regularly to prevent the hazardous accumulation of dust. Discs (for the user) Check the surface of the discs regularly and remove any dirt. -
Page 20: Dust Bag (For The User)
Turn the bag inside out and wash it in the machine in cold water to prevent blockage of the pores and a decrease in dust collection ability. We strongly recommend the Bona DCS as an alternative to the fabric bag. -
Page 21: Lubrication (For The User)
Routine Maintenance (Cont.) Graphite brushes (for the user, cont.) Remove the wire terminal screw (A). Remove the brush (A) complete with spring (B). Check the brushes. If one is shorter than the other by 7mm, replace both brushes. When fitting new brushes, ensure they are installed correctly before replacing covers. Lubrication (for the user) This machine does not require lubrication. -
Page 22: Spare Parts
The machine must only be repaired by qualified personnel. This electric equipment is compliant with the relevant safety legislation. Repairs must be carried out by qualified personnel using Bona/Künzle & Tasin spare parts, otherwise the user may suffer serious injury. -
Page 23: Emergency Situations (For The User)
They must be checked and arranged (contact an autho- Connections unstable rized Bona dealer) Faulty switch It must be replaced (contact an authorized Bona dealer) The motor does not start It must be replaced (contact an authorized Bona dealer Burnt rotor... -
Page 24: Declaration Of Conformity
Declaration of Conformity Bona Dual Edge Manual 2006/42 EC, 2014/30 EU, 2011/65 EU, 2012/19 EU KUNZLE & TASIN S.r.l. Registered Headquarters Business Management and Production Site Via Circonvallazione Est. 2/6 Via Cajkovskij, 14 27023 Cassolnovo (PV) - Italy 20092 – Cinisello Balsamo (MI) - Italy... -
Page 25: Disposal
Disposal Disposal of Waste Equipment by Users in Private Households in the European Union. This symbol on the product or packaging indicates that it must not be disposed of with other household waste. It is your responsibility to dispose of your waste by bringing it to a designated collection point that recycles electrical and electronic equipment waste. -
Page 26: Additional Notes
