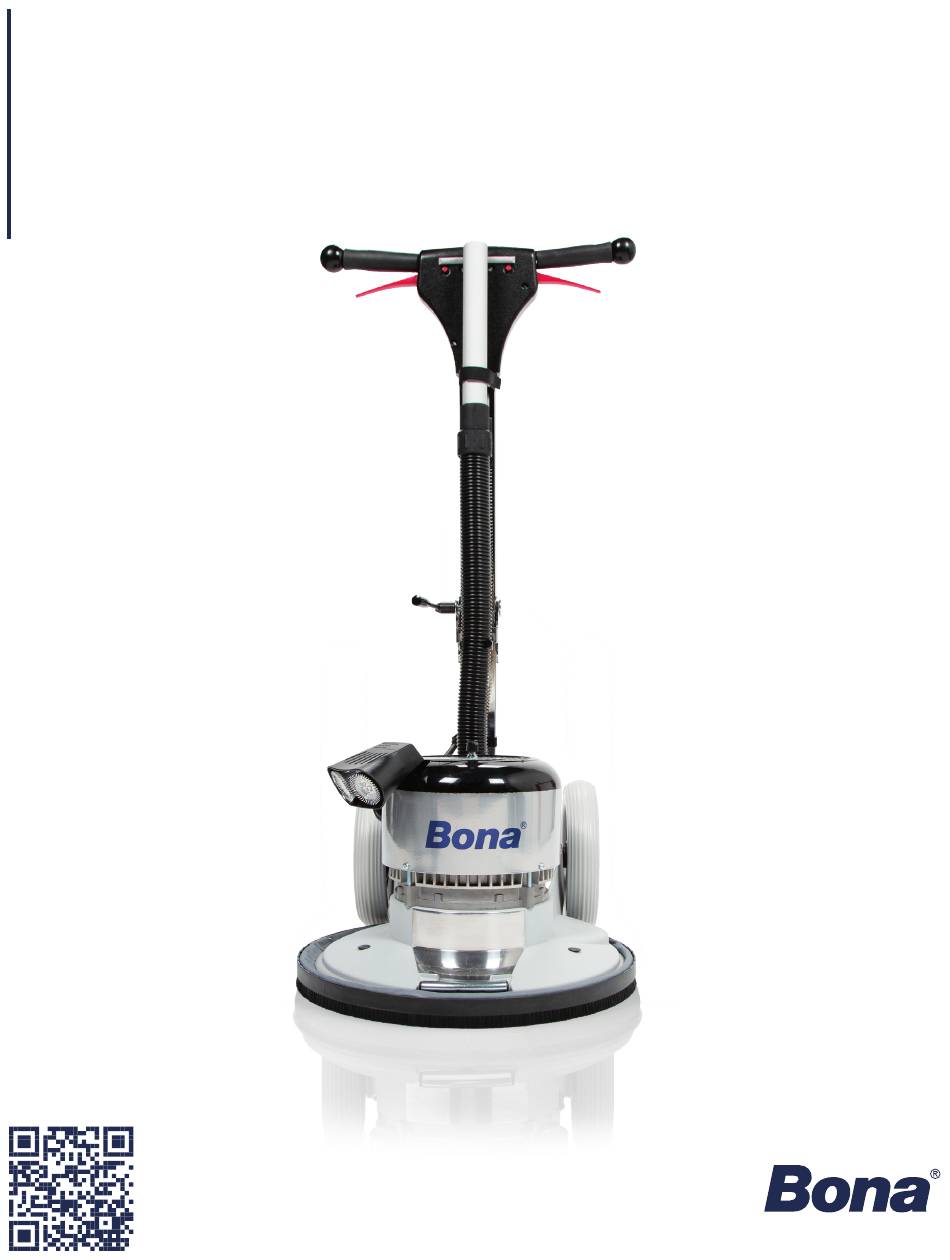

- Page 1 Bona Power Drive ® OPERATING MANUAL To register your machine visit Bona.com/register...
-
Page 2: Foreword
Foreword Bona Power Drive Manual ® For a new manual contact: Bona US 24 Inverness Place East, Suite 100 Englewood, CO 80112 Tel +1 303.371.1411 +1 800.872.5515 Fax +1 303.923.1461 www.Bona.com Bona.com 800.872.5515... -
Page 3: Table Of Contents
Table of Contents Foreword Table of Contents Technical Data Material Specification Drive Plates & Accessories Safety Instructions Bona Power Drive in General Normal use Risks Handling Assembling the dust skirt Assembling the Bona Power Drive Attaching dust containment Attaching the light... -
Page 4: Technical Data

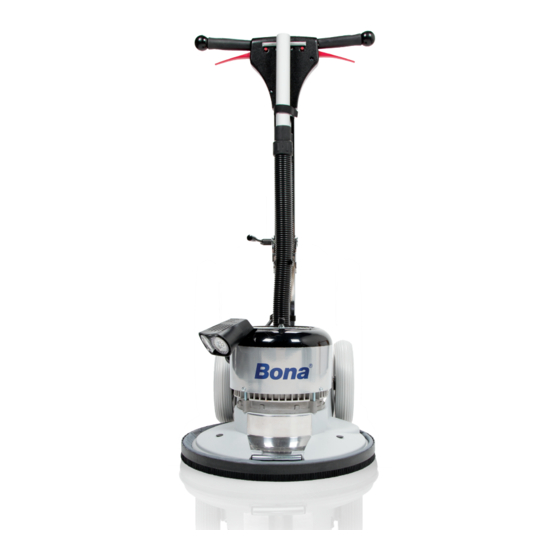

Congratulations on your purchase! The Bona Power Drive is a powerful and versatile machine for sanding, cleaning, buffing, and oiling wooden floors. With the Bona Power Drive, you are able to perform direction-free sanding to bare wood. Four counter-rotating discs provide a high cut rate which can reach very close to the wall, reducing the need for edge sanding. -
Page 5: Material Specification
Long Dust Tube ASK3199940006 Extension Cable 50 Ft (15.2M) ASO904015 Face Mask, Ear Caps (Compl.) ASO991232 Box Spanner (Tool) ASO990640 - L Type Wrench 19mm Bona Power Drive (Geared Drive Plate) AS0312540 User Manual & Instruction Guide Rubber Pad ASO312007... -
Page 6: Drive Plates & Accessories
Drive Plates & Accessories Bona Power Drive Manual ® Recommended Article Application Abrasives & Equipment Voltage power station for 230 and 115 volt Power Station Plus For use with all 230v and equipment with on-line volt Art. nr. AM0002417 115v machines meter, and 20 amp breaker for 115v outlets. -
Page 7: Safety Instructions
Read the instructions Hearing protection Protection of the Hazard due Hazard due to contained in this user during use is airways during use to electricity. moving parts. and maintenance recommended. is recommended. manual before using the machine. Safety Instructions DANGER means: You or other staff can suffer a serious injury or death if the instructions marked with DANGER on this machine or in these user instructions are ignored or not followed. - Page 8 Safety Instructions (Cont.) Bona Power Drive Manual ® In work areas with poor ventilation, an explosive environment can occur if certain flammable • materials (solvents, thinners, alcohol, fuel, certain polishes, wood dust, etc) are in the atmosphere. Floor grinders can cause slightly flammable materials and vapors to burn. Read the manufacturer's label on all chemicals to be used so that you can determine the flammability.
- Page 9 Safety Instructions (Cont.) To minimize dust in the environment use a vacuum cleaner intended for wood dust. The air flow on the vacuum cleaner should be at least 245m³/h. We strongly recommend a Bona Dust Containment System for best results.
-
Page 10: Bona Power Drive In General
Normal use The Bona Power Drive is only intended for indoor use at temperatures between 10˚C (50˚F) and 35˚C (95˚F) and in good lighting. When you work with the machine, be observant of the surroundings and particularly persons nearby. Do not use the machine around children. -
Page 11: Risks
Handling The Bona Power Drive can be used for many different types of floor preparation/sanding depending on the type of drive plate mounted to the machine. As a standard, one drive plate is included on delivery which can be used to drive nylon pads, screens and abrasives, etc. -
Page 12: Assembling The Dust Skirt
To install the Bona Power Drive drive plate, place the drive To remove the Bona Power Drive drive plate, turn the paddle lever plate into position and turn it to engage the interlock (C). Once so it is in the unlocked position (E). -
Page 13: Attaching Dust Containment
Attach the light to the top of the motor and secure with wing nut. Sanding disc placement Before tipping the machine upright, it’s best practice to position the Power Drive plate with two sanding discs on the bottom, in line with the wheels, to minimize pivoting on a single sanding disc. -
Page 14: Operation
The Bona Power Drive system is not used like a 'normal' buffing machine with the handles held at the waist and the machine moving from side to side when sanding. The counter-rotating cog construction of the Bona Power Drive equalizes the sanding force so that the machine stands more or less still during operation and is controlled by simply applying right or left pressure on the handle of the machine. -
Page 15: Transport Position
In situations where you have an insufficient power supply, improper cord length, gauge of cord, faulty connections, or difficult flooring conditions, the Power Drive can become susceptible to overheating. There is a built-in 16A overload switch (manual reset), thermal protection in the motor (automatic reset) designed to protect the motor from excess heat during these situations. If the thermal overload trips (A), allow the machine to cool for 15-20 minutes before continuing. -
Page 16: The Sanding Process
The sanding process The Bona Power Drive system is designed to be used in a variety of different sanding situations. However, it is not designed to replace a traditional belt sanding machine and where a floor is uneven due to cupping or similar issues it is recommended that an initial sanding using a belt sander with a 36/40 grit belt is made. -
Page 17: Maintenance, Service & Repairs
Only Bona's original parts may be used because the machine is considered unique, otherwise safety functions can become impaired. When you contact Bona or staff approved by Bona in the event of a fault or to order spare parts, always specify the type and serial number of your machine. -
Page 18: Spare Parts And Exploded Views
® Spare parts and exploded views On the Internet you will find a list of spare parts and exploded views for the Bona Power Drive and other machines in our product range. Visit http://spareparts.bona.com/ During the factory warranty period, repairs may only be carried out by Bona or staff approved by Bona. Other repairs (after the warranty period) of mechanical or electrical parts on the machine may only be carried out by Bona or staff approved by Bona who has experience and knowledge concerning safety regulations. -
Page 19: Additional Notes
Additional Notes... - Page 20 Bringing out the best in hardwood floors. At Bona, we are committed to the lifetime of hardwood floors. We are devoted to providing solutions that keep a floor perfect during its entire life. Through our long commitment and constant search for innovation we offer lasting, sustainable results for professionals and floor owners.
