Summary of Contents for Bona Scorpion

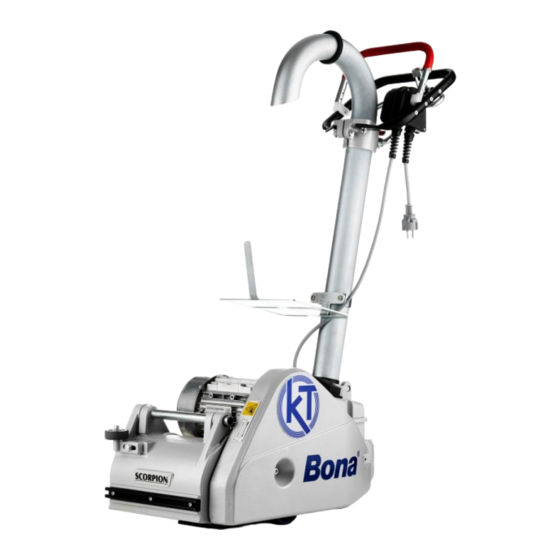

- Page 1 Scorpion Owner & Operation Manual...
- Page 2 SCORPION User Manual Foreword This manual contains important information on the safe use and operation of this machine. Failure to read this manual before operating, adjusting or performing maintenance on this machine could cause injury or damage to persons or objects.
-
Page 3: Table Of Contents
Wheel adjustment (on a surface parallel to the axis of the drum) Adjusting handle height Wall edge castor Abrasive assembly procedures Scorpion Expansion (centrifugal drum) Scorpion EasyFit (with bubble surface) Scorpion Classic Routine maintenance to be performed Sawdust chamber (for the user) Drums (for the user) -
Page 4: Key To Machine Symbols
HAZARD: Failure to read the SCORPION machine manual before operating, adjusting or performing maintenance operations on the machine could cause injury or damage to persons or objects. Anyone operating the machine should understand how to use and operate it before starting it up. -
Page 5: Storage
SCORPION User Manual_ February 2013 Edition Storage It is advisable to store the machine in its original packaging. Doing so makes it possible to form a column of two packages maximum, with one on top of the other. If the machine is removed from the original packaging and is not used for some time ensure the wheels and drum are not in contact with the ground. -
Page 6: Transport With Two People
If a situation arises which has not been described in this manual contact your dealer or Kunzle & Tasin s.r.l. Correct use The Scorpion wood flooring sander is suitable for the dry sanding of wood floors. Any other use without the consent of the manufacturer is prohibited. -
Page 7: Machine Data Plate
SCORPION User Manual_ February 2013 Edition Introduction Machine data plate The following information can be found on the machine data plate: 1. Machine model 2. Safety symbols 3. Motor power 4. Frequency 5. Supply voltage 6. Name of manufacturer 7. Country of manufacture 8. -
Page 8: Instructions For Electrical Connection
SCORPION User Manual_ February 2013 Edition Placing into service Instructions for assembly following transportation Insert the plug (pos. 6) in the socket (pos. 7) Lift the drum with the lever (pos. 1 fig. A) HAZARD Using the machine when not fully assembled may cause injury or damage to people or objects. -
Page 9: Instructions On Removing Sawdust Generated During Use
SCORPION User Manual_ February 2013 Edition Placing into service Cables, extensions and plugs ATTENTION MACHINE WITH 230V 50Hz SINGLE PHASE MOTOR For machines with a 230-240V~50Hz single phase motor (Europe), a HO5VV-3x1.5 mm2 HAR-approved power supply cable must be used along with an approved SCHUKO 2P+T16A 200-250V plug. -
Page 10: Compliance With Safety Measures And Warnings
SCORPION User Manual_ February 2013 Edition Recommendations on prevention measures for users Compliance with safety measures and warnings HAZARD Using the machine when not fully assembled may cause injury or damage to people or objects. Do not use the machine when it is not fully assembled. Keep all fittings tightly secured. -
Page 11: Instructions On Correct Machine Use
SCORPION User Manual_ February 2013 Edition Recommendations on prevention measures for users Instructions on correct machine use Read this manual carefully and become familiar with the machine. The equipment is suitable for industrial use e.g. in hotels, schools, hospitals, offices, factories and shops. -
Page 12: Machine Characteristics
SCORPION User Manual_ February 2013 Edition Machine characteristics Abrasive dimensions per drum: Expansion 200 x 480 mm (ring) EasyFit 200 x 470 mm (sheet) Classic 200 x 550 mm (sheet) Drum width: Expansion 200 mm EasyFit 203 mm Classic 200 mm... -
Page 13: Machine Warnings
SCORPION User Manual_ February 2013 Edition Machine warnings Prohibited use WARNING This equipment is not to be used by anyone (children included) with physical or mental disabilities, or anyone without the relevant experience and knowledge, unless they have received instructions on using the equipment and are supervised by a responsible person to ensure their safety. - Page 14 SCORPION User Manual_ February 2013 Edition Starting the machine 8. Close the abrasive cover (pos. 2 fig. B) Ensure the lever is engaged (pos. 1 fig. A) and the drum is raised off the floor. 9. Put the plug Release the safety lever (pos. 8 fig. A) and press the start handle in the socket.
-
Page 15: Machine Adjustment Procedures
SCORPION User Manual_ February 2013 Edition Machine adjustment procedures Adjusting sanding pressure To vary drum pressure on the floor, use the adjustment knob (pos. 3 fig. B) and proceed as follows: 1. Turn adjustment knob clockwise to decrease drum pressure on the floor. -
Page 16: Wall Edge Castor
SCORPION User Manual_ February 2013 Edition Machine adjustment procedures Adjusting handle height 3. Loosen the screws (pos. 11) until the 5. Tighten the screws (pos. 11), insert the bar (pos. 4) into the cylinder (pos. 2) and lower the tube (pos. 3 handle unit is mobile. -
Page 17: Abrasive Assembly Procedures
Using a damaged abrasive which could then tear while sanding may damage the machine or floor. Scorpion EasyFit (drum with bubble mat surface) Loosen the fastening screws (pos. 1 fig. D) on the paper press (pos. 2 fig. D) on the drum with the correct screwdriver, being careful not to remove the screws and paper press from the drum Insert one end of the abrasive (pos. -
Page 18: Scorpion Classic
SCORPION User Manual_ February 2013 Edition Abrasive assembly procedures Scorpion Classic (drum with slot) The abrasive must be prepared according to the dimensions shown in fig. E, and cut offset as shown in the figure alongside. Using the Allen keys turn the two tensioning shafts (pos. 1 and 2 fig. F) until the two plates on the shafts are facing. -
Page 19: Routine Maintenance To Be Performed
February 2013 Edition Machine adjustment procedures Scorpion Classic (drum with slot) The aforementioned procedure is suited to fitting large grain abrasive (20-24). For medium and fine grain abrasive (36-60-80 etc.) one or more strips of abrasive must be placed between the two edges, which are as wide as the drum and approximately 30 mm in length, to compensate for the difference in thickness between the large grain and medium/fine grain abrasive. -
Page 20: Wheels (For The User)
SCORPION User Manual_ February 2013 Edition Routine maintenance to be performed Wheels (for the user) Remove dirt from the machine unit and wheels regularly. Dirt may cause uneven sanding. Dust bag (for the user) Remove the bag and shake it well to remove sawdust. -
Page 21: Belt Tension
SCORPION User Manual_ February 2013 Edition Belt tension (for the user) Check the belt tension every 500 hours of operation by removing the belt cover (pos. 8 fig. B) after removing the two screws and loosening the 4 motor fastening screws (pos. 1 fig. H) Belt tension can be adjusted using the screws (pos. -
Page 22: Emergency Situations (For The User)
SCORPION User Manual_ February 2013 Edition Emergency situations (for the user) FAULTS CAUSES SOLUTIONS Insufficient cutting Unsuitable or worn abrasive Replace the abrasive Insufficient drum pressure Increase drum pressure Insufficient belt tension Increase belt tension Worn belt Replace the belt... -
Page 23: Declaration Of Conformity
SCORPION User Manual_ February 2013 Edition DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY 2006/95 EC, 2006/42 EC 2004/108 EC, 2002/95 EC 2002/96 EC KUNZLE & TASIN S.r.l. Manufacturer and entity authorised to compile and maintain the technical file Registered headquarters Business Management and Production Site Via Circonvallazione Est. -
Page 24: Disposal
SCORPION User Manual_ February 2013 Edition Disposal Smaltimento di apparecchiature da rottamare da parte di privati nell’Unione Europea. Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme ad altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. -
Page 25: Diagrams
SCORPION User Manual_ February 2013 Edition Diagrams... - Page 26 SCORPION User Manual_ February 2013 Edition Diagrams...
-
Page 27: Notes
SCORPION User Manual_ February 2013 Edition Notes _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________... - Page 28 February 2013 Edition...
