Summary of Contents for Chauvet D-Fi Stream 6

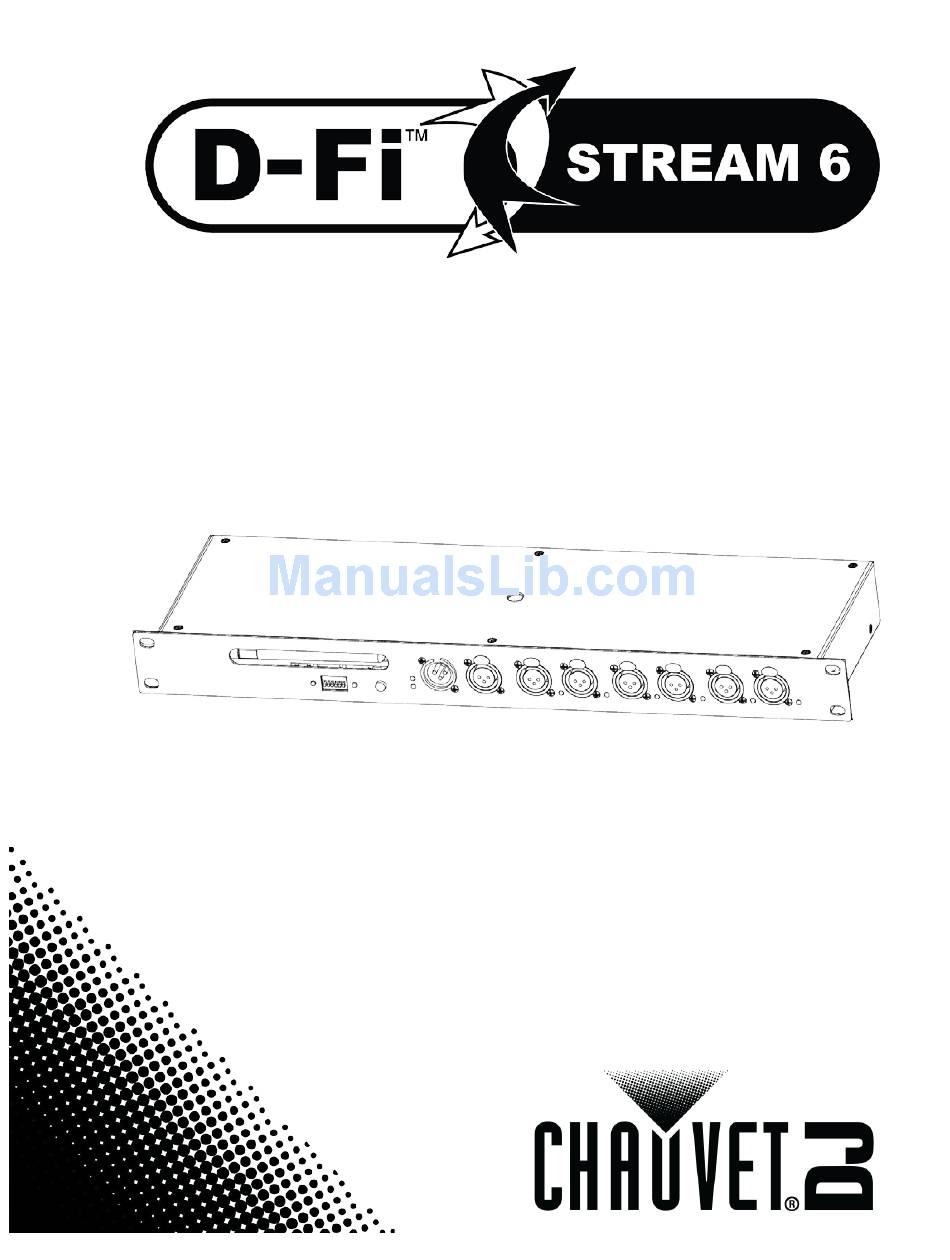

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before you Begin ........................ 3 What Is Included ............................ 3 Unpacking Instructions .......................... 3 Claims ................................3 Text Conventions ........................... 3 Symbols ..............................3 Disclaimer .............................. 3 Product at a Glance ..........................4 Safety Notes ............................4 2. -
Page 3: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Use on Dimmer Auto Programs Product at a Outdoor Use Power Cord Glance Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with this product. They include important safety information about its installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview DMX In Antenna In/Throughput LED Indicators LED ON Indicator D-FI™ Auto Sync Button DIP Switches DMX Outputs Antenna Storage LED Wireless Signal Front View Indicator Power In Back View Fuse Holder Mounting Hole D-Fi™ Stream 6 User Manual Rev. 1 Page 5 of 12... -
Page 6: Product Dimensions
Product Dimensions 1.8 in 46 mm 19 in 483 mm 5.3 in 134 mm (10mm Mounting Hole) Page 6 of 12 D-Fi™ Stream 6 User Manual Rev. 1... -
Page 7: Setup
3. S ETUP AC Power This product has an auto-ranging power supply and it can work with an input voltage of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for this product (power outlet and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Operation
4. O PERATION Configuration The D-Fi™ Stream 6 is configured with the DIP switches on the front just under the antenna. The D-Fi™ Stream 6 can transmit D-Fi™ or receive D-Fi™. The D-Fi™ channel can be selected manually or automatically. There is a DIP switch settings table affixed to the top of the product, and the DIP switches and settings are described in the following sections. -
Page 9: Dip Switch Settings
Or Receive Auto-Sync mode can be used in conjunction with the Transmit or Receive mode Information about using D-Fi™ lights and controllers is in the product manuals at the Chauvet website http://www.chauvetlighting.com/product-manuals-literature/. Information about CHAUVET® Primer http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. When using the Transmit D-Fi™ mode or the Receive D-Fi™ mode, manually select a channel or set to Auto-Sync mode. -
Page 10: Technical Information
5. T ECHNICAL NFORMATION Technical Specifications Length Width Height Weight Dimensions and Weight 19 in (483 mm) 5.3 in (134 mm) 1.6 in (46 mm) 5.8 lb (2.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Rackmount Size Power Supply Type Range Voltage Selection... -
Page 11: Returns
Contact Us). · If you live in any other country, DO NOT contact Chauvet. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. If you live outside the U.S., United Kingdom, or Ireland, contact your distributor of record and follow their instructions on how to return Chauvet products to them. -
Page 12: Contact Us
+52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, or Mexico, contact the dealer of record and follow their instructions to request support or to return a product. Visit the Chauvet website for contact information. D-Fi™ Stream 6 QRG Rev. 1 ML ©...
