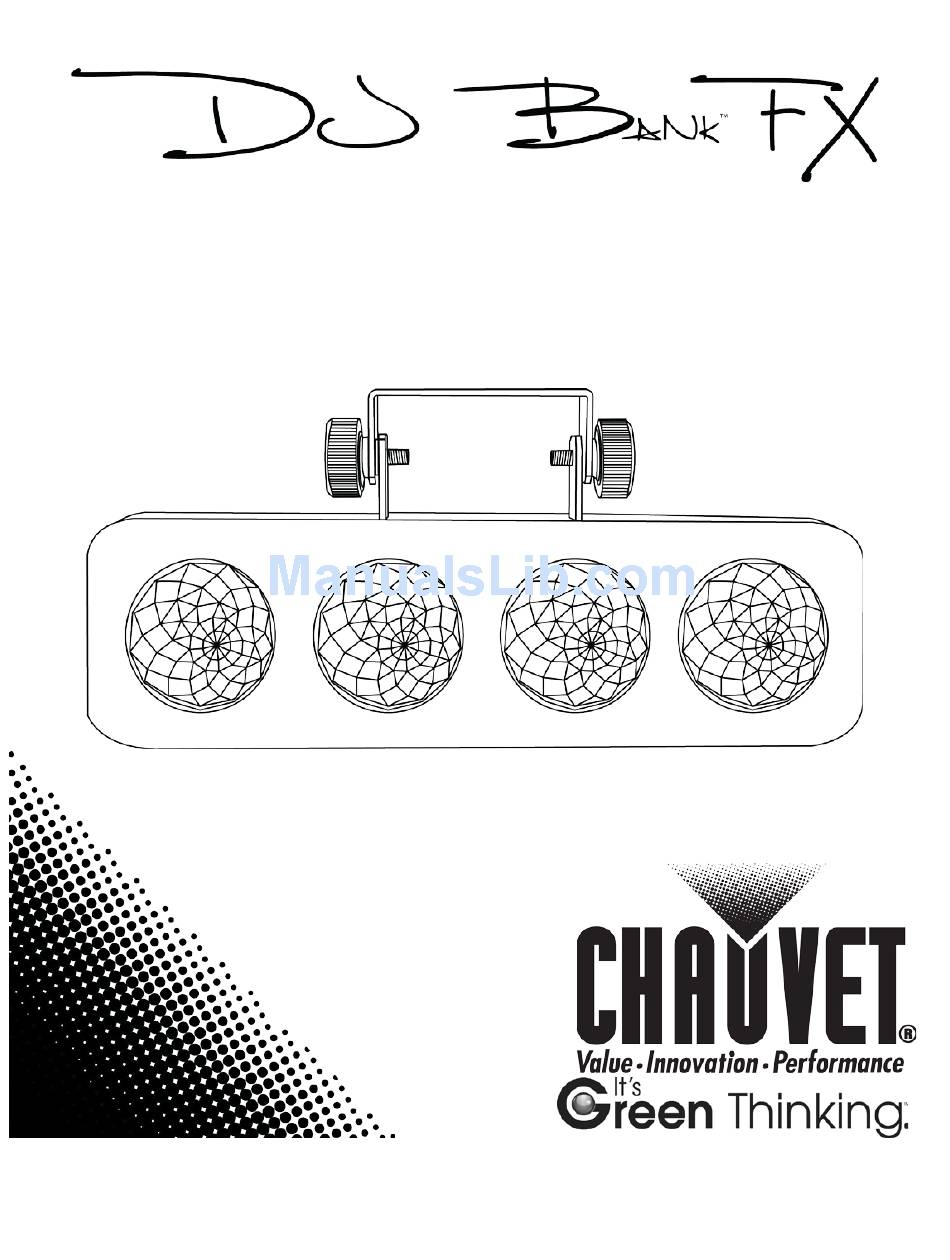

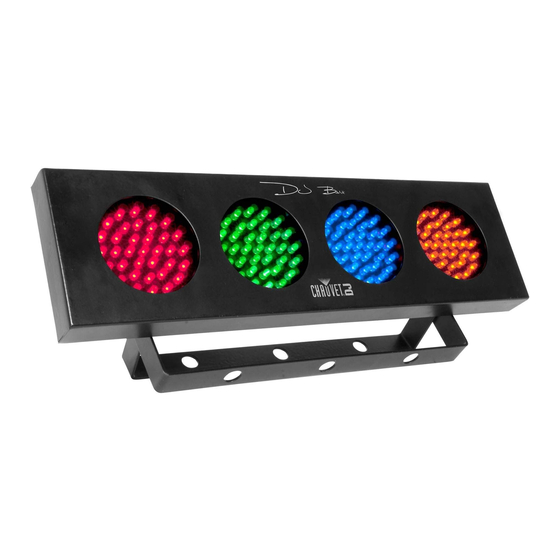

- Page 1 User Manual...
-
Page 2: Table Of Contents
Configuration ..........................10 Sound-Active Mode ..........................10 Speed ..............................10 5. Technical Information ....................11 Product Maintenance ........................ 11 6. Technical Specifications ....................12 Returns ............................. 13 Contact Us ..........................13 Page 2 of 13 DJ Bank™ FX User Manual (Rev. 1) -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Convention Meaning Text 1–512... -
Page 4: Product At A Glance
This product is not intended for permanent installation. · Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 13 DJ Bank™ FX User Manual (Rev. 1) -
Page 5: Introduction
2. I NTRODUCTION Overview Sound Sensitivity Power Out Adjustment Knob Speed Adjustment Knob Fuse Holder Power In Back Panel View DJ Bank™ FX User Manual (Rev. 1) Page 5 of 13... -
Page 6: Dimensions
Dimensions 14.7 in 375 mm 7 in 178 mm Page 6 of 13 DJ Bank™ FX User Manual (Rev. 1) -
Page 7: Setup
3. S ETUP AC Power The DJ Bank™ FX has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Power Linking
Diagram Additional Products You can power link up to 94 DJ Bank™ FX units on 120 VAC or up to 97 DJ Bank™ FX units on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET®... -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The DJ Bank™ FX may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and adjustments. -
Page 10: Operation
4. O PERATION Configuration Plug in the DJ Bank™ FX to a suitable power outlet. Sound-Active To adjust the built-in Sound-Active mode, follow the instructions below: Turn the music on. Mode Adjust the sound sensitivity adjustment knob until the product starts responding to the beat of the music. -
Page 11: Technical Information
· Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint. Always dry the external optics and glass/transparent surfaces carefully after cleaning them. DJ Bank™ FX User Manual (Rev. 1) Page 11 of 13... -
Page 12: Technical Specifications
Photo Optic Parameter Coverage angle 77º Thermal Maximum External Temp. Cooling System 104° F (40° C) Convection Ordering Product Name Item Code UPC Number DJ Bank™ FX 07050675 781462210236 Page 12 of 13 DJ Bank™ FX User Manual (Rev. 1) -
Page 13: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
