Snapshot OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave Autoswitching USER MANUAL Transformer Replaceable Fuse User Serviceable Duty Cycle 1. B EFORE EGIN What is included 1 x D-Fi™ PLUS 1 x Antenna 1 x 12VDC 500mA (external power supply) ...
Maximum recommended number of fixtures on a serial data link: 32 fixtures Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. 2. I NTRODUCTION Features...

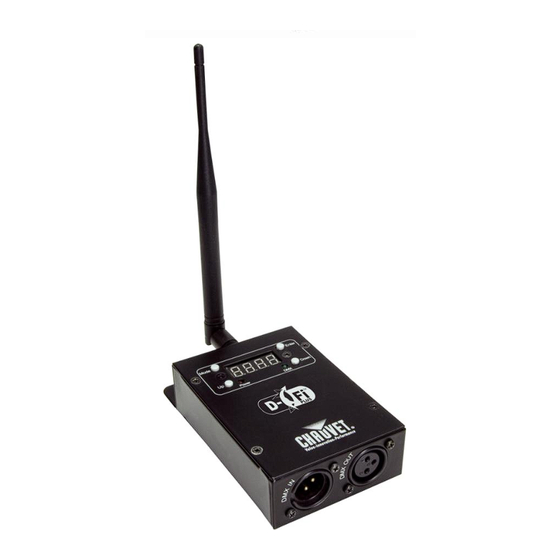

Product Overview Antenna (included) Enter button Down button Mode button Signal LED indicator Up button Power LED indicator DMX Out DMX In Mounting/ hanging bracket Antenna connection DC power input D-Fi™ PLUS User Manual 4/27/2009 11:39 AM...
Page 4
3. S ETUP D-Fi™ PLUS Configuration Options Configurations 1. A transmitter is connected to the output of the controller, and a receiver is connected at the input of the first DMX fixture. 2. A transmitter is connected to the output of a DMX fixture, and a receiver is connected to the input of the next DMX fixture.
Note: A system is simply one D-Fi™ PLUS transmitting and one or more D-Fi™ PLUS(s) receiving on the same frequency. A minimum of 2 D-Fi™ PLUS transceivers are required for operation. Contact Us Wor l d Wi de General Information CHAUVET 3000 North 29 Court Hollywood, FL 33020 voice: 954.929.1115 fax: 954.929.5560...
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call CHAUVET and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
