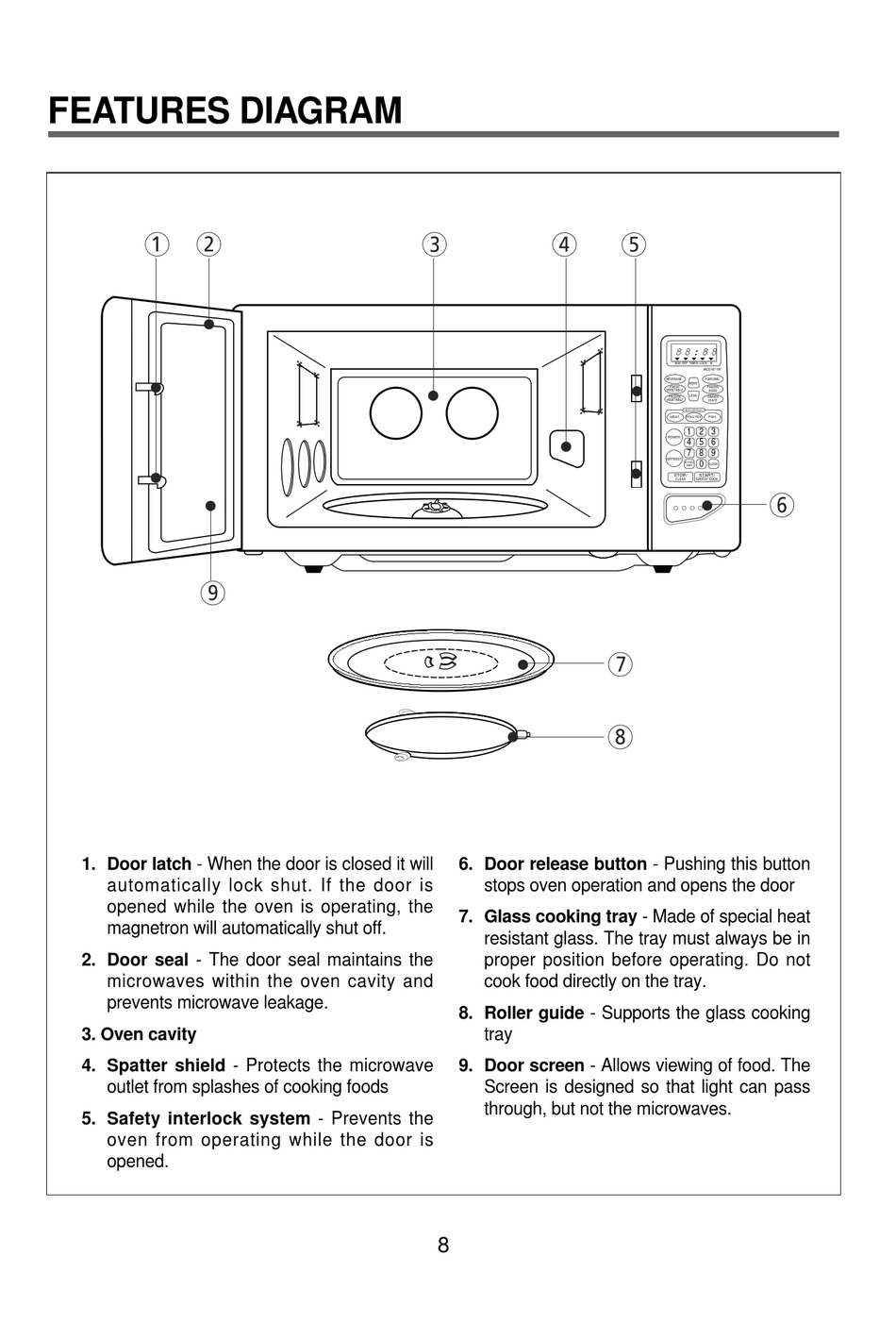

FEATURES DIAGRAM

1 2
9
1. Door latch - When the door is closed it will
automatically lock shut. If the door is
opened while the oven is operating, the
magnetron will automatically shut off.
2. Door seal - The door seal maintains the
microwaves within the oven cavity and
prevents microwave leakage.
3. Oven cavity
4. Spatter shield - Protects the microwave
outlet from splashes of cooking foods
5. Safety interlock system - Prevents the
oven from operating while the door is
opened.
3 4
6. Door release button - Pushing this button
stops oven operation and opens the door
7. Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not
cook food directly on the tray.
8. Roller guide - Supports the glass cooking
tray
9. Door screen - Allows viewing of food. The
Screen is designed so that light can pass
through, but not the microwaves.
8
5
8 8 : 8 8
M/W DEF TIMER LOCK lb
MCD1611W
BEVERAGE POPCORN
MORE
FRESH FROZEN
VEGETABLE
PIZZA
LESS
FROZEN DINNER
VEGETABLE
PLATE
AUTO DEFROST
MEAT POULTRY FISH
1 2 3
POWER
4 5 6
7 8 9
DEFROST
0
KITCHEN
CLOCK
TIMER
STOP/ START/
CLEAR SPEEDY COOK
6
7
8
