Intersil ISL54302EVAL1Z User Manual

®

Before Getting Started

Voltage Supplies

This document supplements the ISL54302 data sheet
FN6592. Evaluation board users should review that
document to obtain information on the part's basic
functionality and power requirements. Important Note:
before powering up the board, review the Power-Up
Sequence section in the ISL54302 data sheet. There are
many DC sources utilized, so a user may inadvertently
misapply the power sources causing damage to the part.
Take time to review the ISL54302 Data Sheet (FN6592) and
become familiar with the part's basic functions and power
options. Note also that FN6591 supersedes this document
with respect to updates and modifications. Always refer to
that document if discrepancies occur.
No signal should be more positive than VPLUS or more
negative than VSS. Also, all voltages are reference to the
GND Pin. Under all circumstances, VLOGIC should be 3.0V
±10% and VDD should also be 3.0V above VSS.

Software Installation

This ISL54302EVAL1Z Evaluation board comes with
software for operating the switch conditions of the board.
This feature is based in a USB interface dongle that Intersil
uses in many applications. This dongle comes pretested and
plugged into the ISL54302EVAL1Z Evaluation board. Care
should be taken not to inadvertently remove the dongle from
the evaluation board as it is detachable. It is detachable so
the user can remove the Dongle and connect a customer
specific control if desired.
Before attaching the USB cable or applying power to the
Evaluation board banana jacks, the user must execute the
installation program.
Intersil_ISL54302_Installer.Exe. This program not only installs
the Evaluation Software, but also installs the USB drivers
needed to communicate with the Intersil USB Dongle.
Double click on the installer program to execute and follow
the defaults for performing the installation.
All Intersil Evaluation Software is placed in a directory in the
Windows "Program Files" Directory. After installation the
software is available at: All Programs/Intersil/Intersil_54302.
In that directory will be both the execution program and the
uninstaller.
Once installation is complete, connect the USB cable. You
will receive audio notice that the new device is ready for use.
Once this occurs, double click on the ISL54302 application.
The operator interface screen will appear on your desktop.
Application Note
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
ISL54302EVAL1Z Evaluation Board
March 18, 2008
Two buttons are located on the right hand side of the user
screen. They provide a quick means of testing the computer
to Dongle communications. Clicking on the "Led's On" will
turn on the Green and Red Led's located on the USB
Dongle. Clicking "Led's Off" will turn them off again.
If the LED's fail to respond:
1. Exit the application and restart the application.
2. Exit the application, disconnect the USB cable, wait for
the USB disconnect tone, then connect the USB, wait for
the connect tone and restart the application.
Once you can successfully turn the Dongle Led's on and off,
you are ready to start working with ISL54302 device.

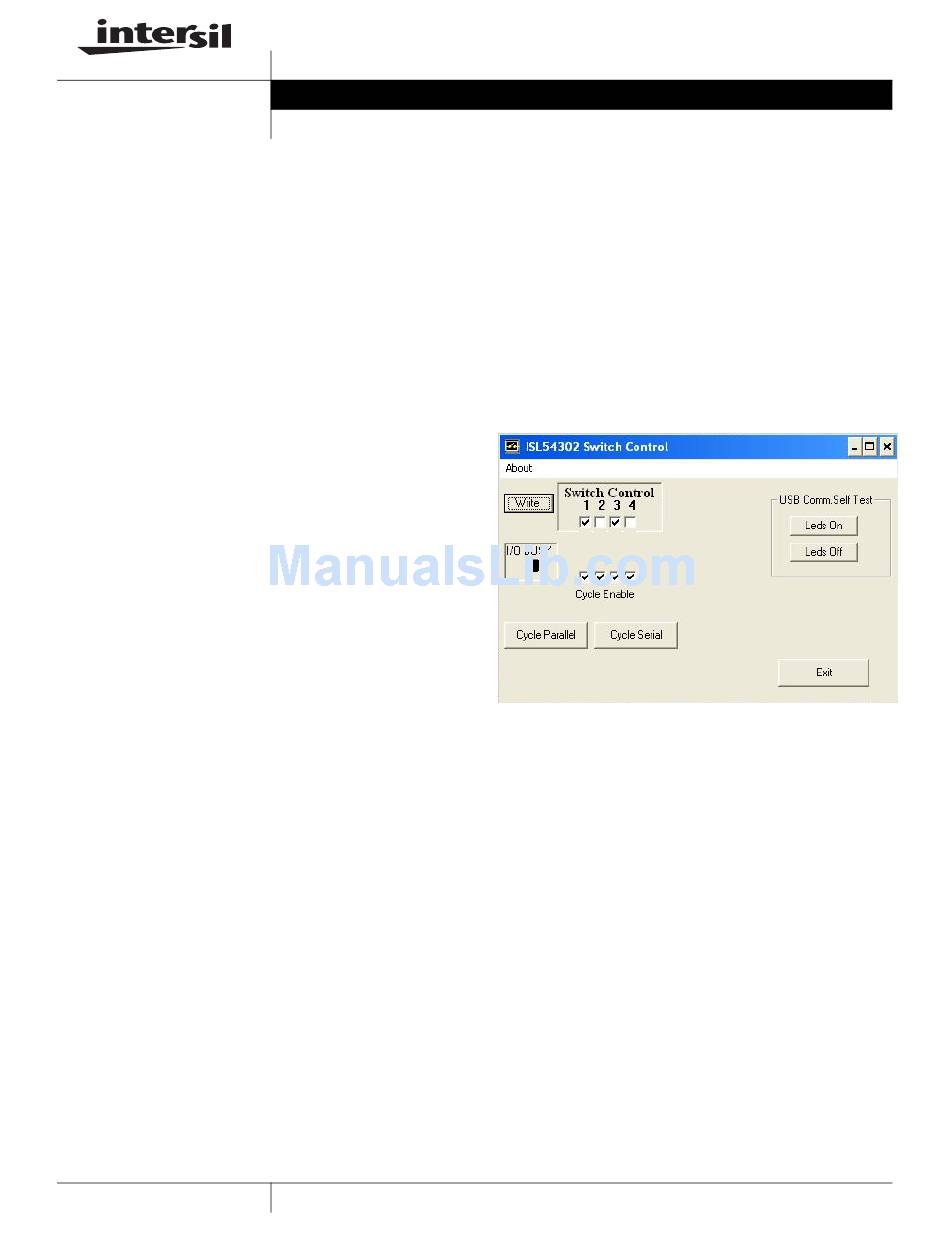

FIGURE 1. ISL54302 SWITCH CONTROL

Device Power Supply Banana Jacks

There are five banana jacks located on the edge of the
board.
• GND - the reference for all supplies always 0Vs
• VSS - the negative switch operating range (-3V to 0V)
• VDD - digital logic supply, always VSS + 3V
• VLOGIC - digital interface reference always 3V
• VPLUS - Positive switch operation range, 5V to 9V
Apply these voltages in the order detailed in the device
specification.

Test Setup Voltages

The user may wish to adopt the procedure outlined in the
"Initial Power-Up" section on page 2.
|
