Intersil ISL5761EVAL1 User Manual

TM

Description

The ISL5x61EVAL1 and EVAL2 evaluation boards provide a
quick and easy method for evaluating the
ISL5761/5861/5961 (10-, 12-, or 14-bit), 130/210MSPS high
speed DACs. EVAL1 is populated with an SOIC package and
EVAL2 is populated with a TSSOP package. The board is
configured so that the converter outputs differential current
into a transformer circuit to form an output voltage. The
amount of current out of the DAC is determined by an
external resistor and either an internal or external reference
voltage. The CMOS digital inputs have optional external
termination resistors. The evaluation board includes a ribbon
cable digital interface that is compatible with Intersil DUC
(Digital Up Converter) evaluation boards like the ISL5217.

Features

• 210MSPS 10-, 12- or 14-Bit CMOS DAC
• Transformer-Coupled or Single-Ended SMA Outputs
• Interface compatible to the ISL5217 Digital Up Converter
allows complete Baseband-to-IF Demonstration

Ordering Information

TEMP.
PART RANGE
o
NUMBER ( C)
ISL5761EVAL1 25
ISL5861EVAL1 25
ISL5961EVAL1 25
ISL5761EVAL2 25
ISL5861EVAL2 25
ISL5961EVAL2 25
ISL5x61EVAL1 and EVAL2 User's Manual
Application Note
NUMBER CLOCK
PACKAGE OF BITS SPEED
SOIC 10 210MHz
SOIC 12 210MHz
SOIC 14 210MHz
TSSOP 10 210MHz
TSSOP 12 210MHz
TSSOP 14 210MHz
1
September 2001

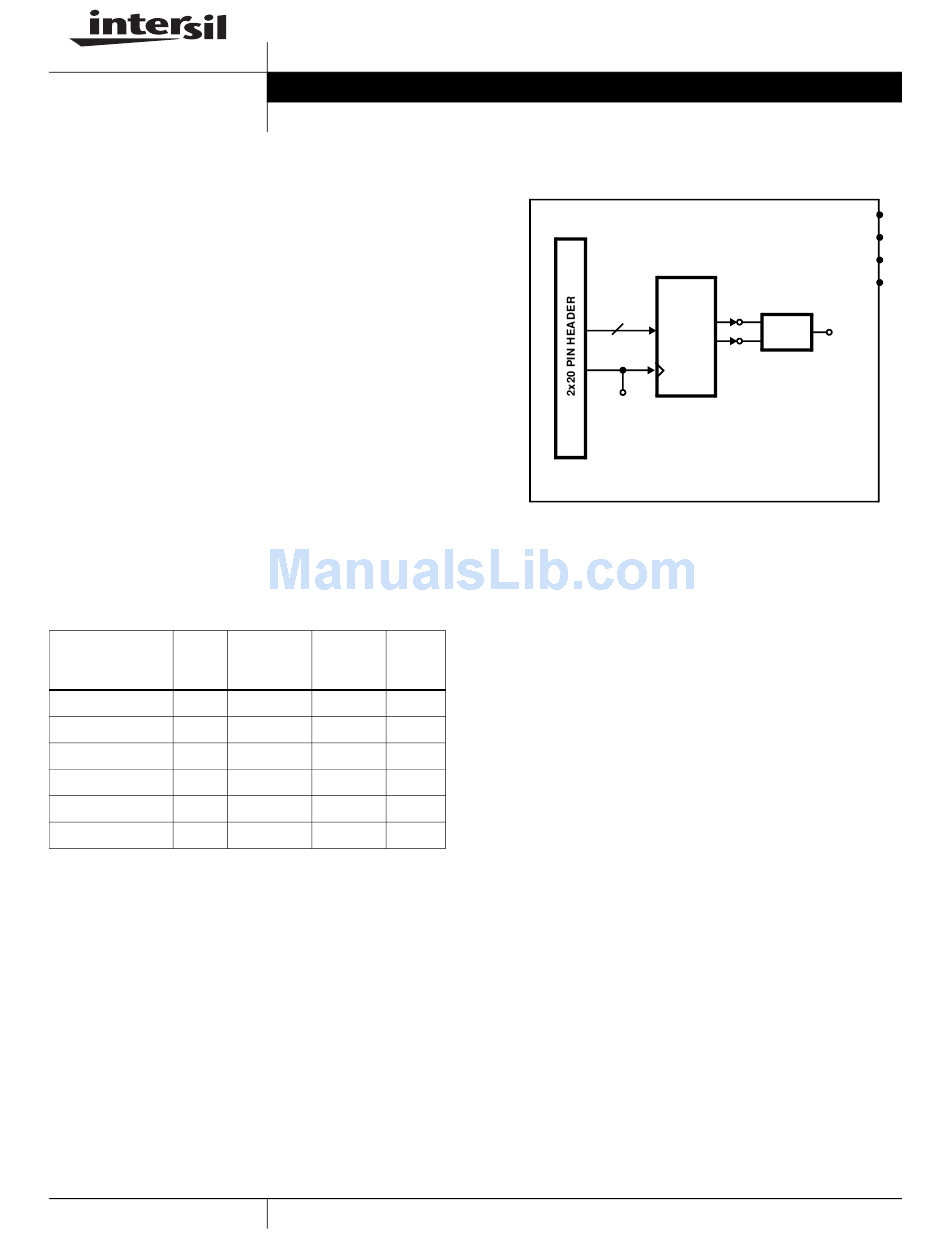

Functional Block Diagram

10-14 BITS
CLOCK

Getting Started

See Figure 1. A summary of the equipment, external
supplies and signal sources needed to operate the board is
given below:
1. +3.3V supply for ISL5x61 DAC.
2. Pattern generator (pattern source).
3. Square wave, DC-biased clock source (usually part of the
pattern generator).
4. Spectrum analyzer or oscilloscope for viewing the output
of the converter.
Attach the evaluation board to the power supply(s). Connect
the bits from the data generator to the evaluation board
using the 2x20 pin connector (J1). Connect the clock source
to the evaluation board, either through the 2x20 pin
connector (J1) or via the provided SMA (J2).
Using a coaxial cable with the proper SMA connector, attach
the output of the converter, I
equipment that will be evaluating the converter's
performance. Make sure that the jumpers are in their proper
placement (default placement should be J5 and J10
populated, all others not populated).
Set the clock signal and data levels to swing from 0-3V. Turn
the power supply on. Turn the pattern and clock on and
measure the result at the analog output SMA (J11).
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
IOUTA
SMA
T1
XFMR
DAC
IOUTB
SMA
CLK
SMA
(J11), to the measurement
OUT
|
Intersil and Design is a trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2001, All Rights Reserved
AN9966
DVDD PLANE
DGND PLANE
AVDD PLANE
AGND PLANE
IOUT
SMA
