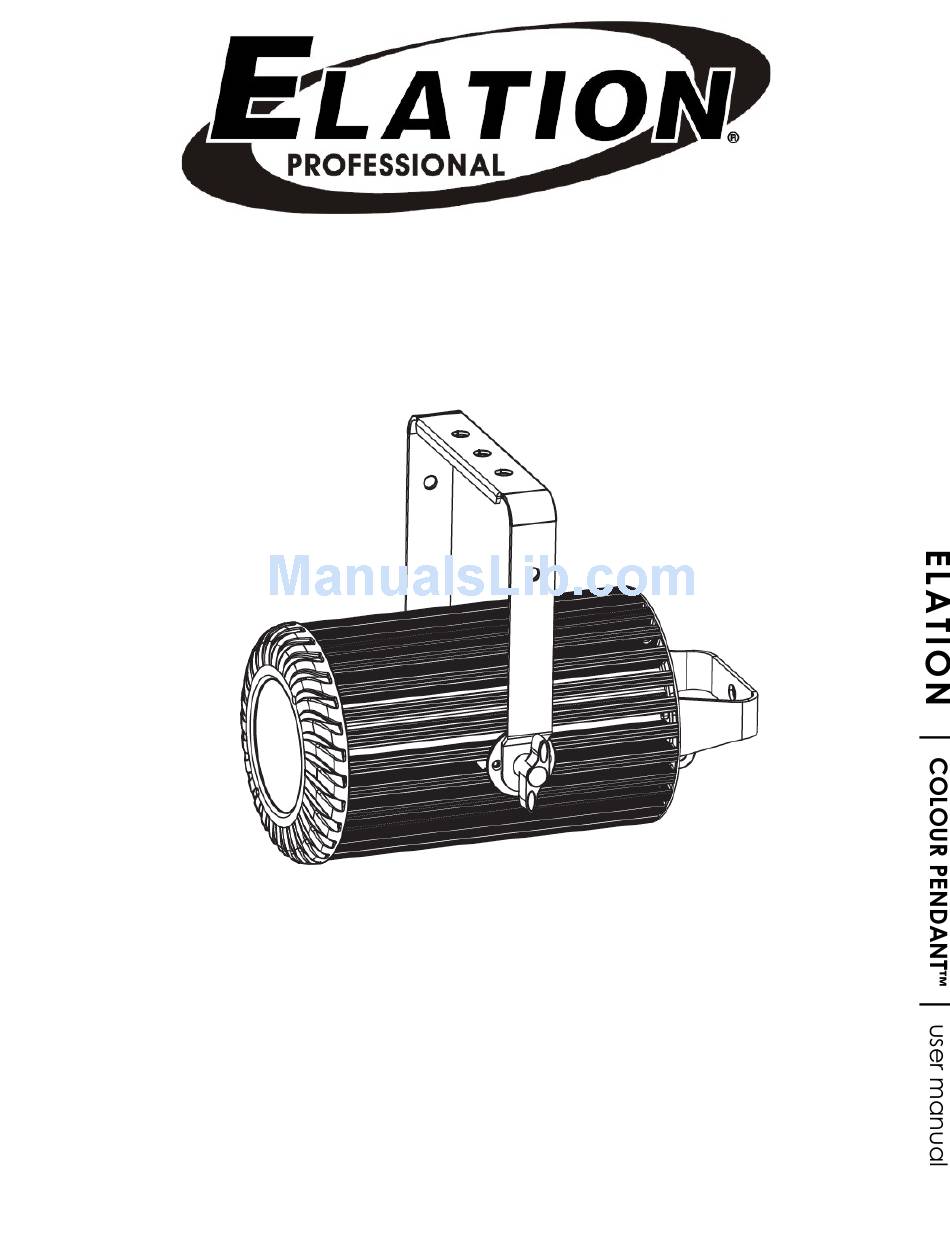

- Page 1 COLOUR PENDANT™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | TRIw.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories COLOUR PENDANT™ User Manual Ver. 1... -
Page 4: General Information
Please do not return this unit to your dealer without first contacting customer support at the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) powerCON Cable Manual & Warranty Card COLOUR PENDANT™ User Manual Ver. 1... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. COLOUR PENDANT™ User Manual Ver. 1... -
Page 8: General Guidelines
Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. COLOUR PENDANT™ User Manual Ver. 1... -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W 1. powerCON IN 2. 5pin DMX IN/OUT 3. E-FLY Wireless DMX Antenna 4. E-FLY Signal Indicator 5. MODE, UP, DOWN, ENTER Buttons 6. Safety Cable Attachment Point 7. LCD MENU Control Display COLOUR PENDANT™ User Manual Ver. 1... -
Page 10: Fixture Installation
The fixture provides an integrated yoke/rigging bracket. When mounting this fixture to truss be sure to secure an appropriately rated clamps to the yoke/rigging bracket using a M10 screw fitted through the center hole. COLOUR PENDANT™ User Manual Ver. 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. COLOUR PENDANT™ User Manual Ver. 1...
-
Page 12: Fixture Menu
Press and hold the MODE button for 10 seconds to unlock the LCD display. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Update RGBW Wait... V1.03 Fixture Software Version (Greater than or equal to) COLOUR PENDANT™ User Manual Ver. 1... - Page 13 B:000-255 Manual Set RGBW and Strobe Values manually. W:000-255 S:000-255 DimCurve Standard, Stage, TV, Architec, Theatre Set desired Dimming Curve. NO DMX Hold, Blackout, Look Define how fixture reacts when NO DMX signal present. COLOUR PENDANT™ User Manual Ver. 1...
- Page 14 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architectural, Theatre, or Default. (See diagram below for more details) Dimmer COLOUR PENDANT™ User Manual Ver. 1...
-
Page 15: Dmx Channel Functions And Values
COOL WHITE 192-255 NO Function COLOR SPEED Static 1-255 Color Scroll SLOW to FAST COLOR RANGE FULL Spectrum Variable Limit of 1-255 Spectrum Color Scrolling COLOR STEPS Variable Control of 0-255 Smoothness of Color Scrolling COLOUR PENDANT™ User Manual Ver. 1... - Page 16 0-100% GREEN 0-255 0-100% BLUE 0-255 0-100% WHITE 0-255 0-100% MASTER DIMMER 0-255 Intensity 0 to 100% DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting COLOUR PENDANT™ User Manual Ver. 1...
-
Page 17: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 18: Technical Specifications
-14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS CE | | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. COLOUR PENDANT™ User Manual Ver. 1... -
Page 19: Photometric Data
. e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. COLOUR PENDANT™ User Manual Ver. 1... -
Page 20: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp EFL001 E-FLY Wireless DMX Transceiver AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available COLOUR PENDANT™ User Manual Ver. 1... - Page 21 . e l a t i o n l i g h t i n g . c o m N O T E S COLOUR PENDANT™ User Manual Ver. 1...
