GB
D144H002 Ed.03
Thermometers and temperature controllers
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKO-D140 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AKO AKO-D140 Series

Summary of Contents for AKO AKO-D140 Series

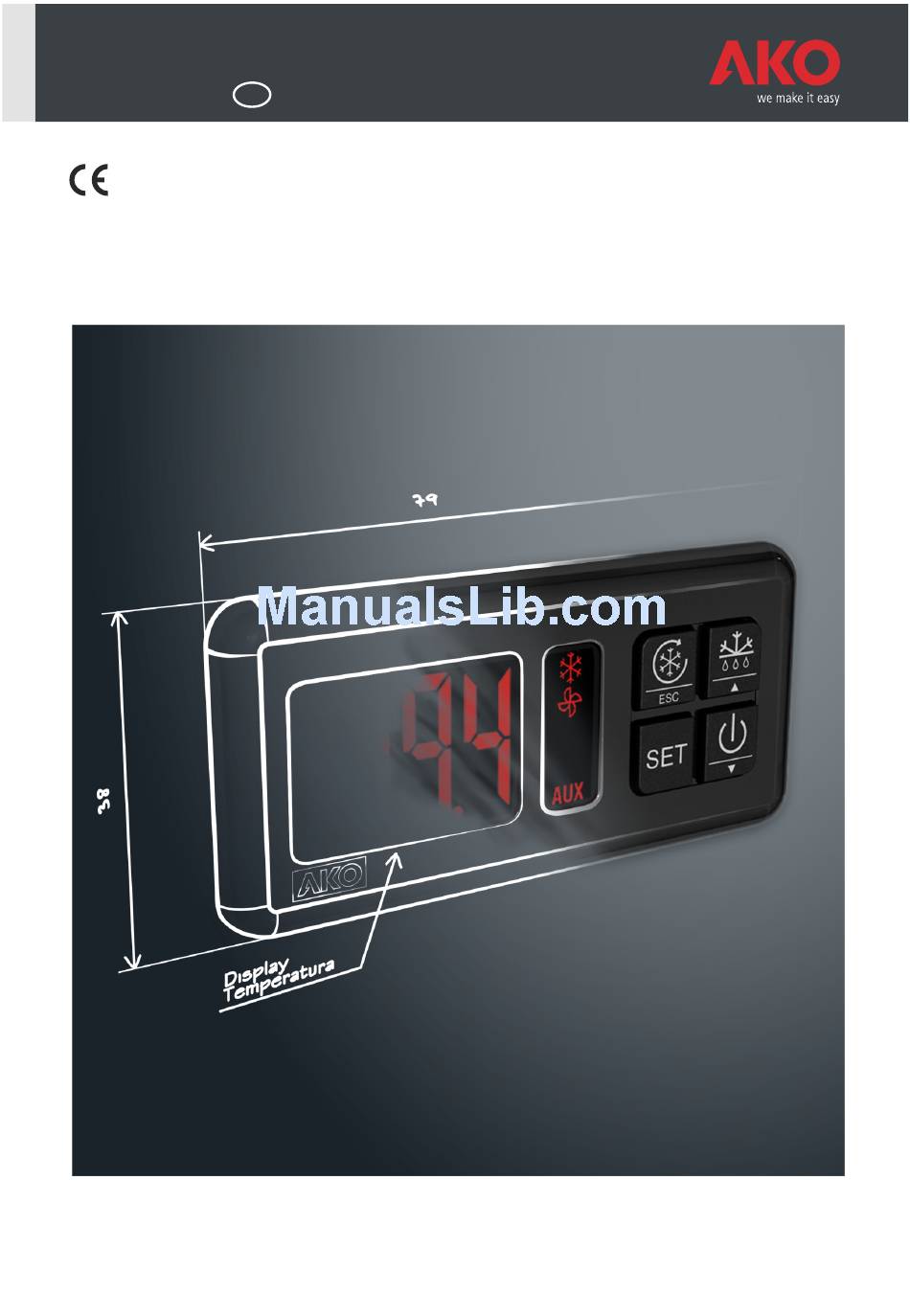

  • Page 1 D144H002 Ed.03 Thermometers and temperature controllers User Manual...

  • Page 2: Table Of Contents

    Only qualified personnel should install or perform technical assistance on this product. This product is designed to be used in the applications described in the product manual. AKO Electromecánica gives no guarantee of its operation in any use not foreseen in the manual, and is not responsible for any damage resulting from improper use, configu- ration, installation or commissioning.

  • Page 3: Chapter 1: Introduction

    The second display shows icons for the various outputs. The built-in gasket on the front panel (Only AKO-D14xxx models) afford the unit a high degree of IP protection and new features have been added which allow more efficient refrigeration management, thus saving energy.

  • Page 4: Chapter 2: Description

    2.- Description Program Display Mode 1 Key 3 Keys 4 Keys FAN relay active ECO relay COOL relay active (P0=0)* active Keyboard Extended panel version Fast freezing AUX relay active* Switches mode* RES relay active (P0=1) or lights on (P6=3) Standby active DEF relay energised*...

  • Page 5: Display Messages

    2.2.- Display messages Flashing 0: Access code (Password) request You must enter the access code configured on L5 to execute the requested function (p. 9 and 22). See also parameter P2 (p. 27) Probe 1, 2 or 3 faulty (open circuit, crossover or temperature outside the probe limits; NTC: -50 To 99 ºC;...

  • Page 6: Versions And Part Numbers

    Using the equipment without following the manufacturer's instructions may affect the device's safety requirements. To ensure that the device operates correctly, only probes supplied by AKO should be used. The unit must be installed in a location protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed that shown in the technical data.

  • Page 7: Chapter 3: Initial Setup

    3.- Initial Setup 3.1.- Wizard (not available in thermometers) The Darwin range controllers have a setup wizard to configure the main parameters for the type of application chosen (see table). The other parameters will be configured according to the "Def" column in the parameter table (see section 7.1.3). For the meaning of each parameter, see section 7.1.3.

  • Page 8: Basic Settings

    3.2.- Basic settings Type of operation (only 1-relay controllers) Specifies how the controller will control temperature (see page 10) P0=0 Direct mode, refrigeration applications P0=1 Reverse mode, heating applications Type of inputs (only 4-key controllers) Some units have 3 programmable inputs to function as probes or as digital inputs as needed. This configuration parameter is defined by P4, with the following options: P4=1: 1 probe input (S1: control probe) + 2 digital inputs (D1 and D2).
  • Page 9 Digital input function (only 4-key controllers) The digital input function is defined by parameters P10 (D1) and P11 (D2), with the following options: P10/P11=0: Off (no function) P10/P11=1: Door contact, controls the activation/deactivation of ECO mode. (p. 11) P10/P11=2: External alarm, controls activation/deactivation of the external alarm (p. 17). P10/P11=3: Severe external alarm, controls activation/deactivation of the severe external alarm (p.

  • Page 10: Chapter 4: Operation

    eters) 4.- Operation 4.1.- C ompressor c ontrol (not available in thermometers) NORMAL OPERATION (COOL) When the temperature in probe 1 reaches the set point value (SP) plus the probe differential (C1), COOL e 1 reaches the set the COOL relay is activated, starting the compressor and leading to a drop in temperature.
  • Page 11 ECO MODE (only 4-key controllers) frigeration cabinet is not used This mode saves energy during periods in which the refrigeration cabinet is not used much. While this mode is active, the screen will display the ECO icon. It is activated after a certain period (set in parameter C11) of cabinet door inactivity, for e ECO icon.

  • Page 12: Defrost Control (Not Available In Thermometers)

    4.2.- Defrost control (not available in thermometers) On units with 1 relay, defrost can only be set by compressor shutdown. On units with 2 or 3 relays, the auxiliary relay must be set as "defrost" (P6=1), except for defrost by compressor shutdown. Max.
  • Page 13 Defrost termination The defrost will terminate if: -The temperature programmed in parameter 24 has been reached in probe 2 (requires an additional input for the second probe and activating it via parameter P4). -Time set in parameter d1 has passed (maximum duration of defrost). -The H key is pressed for 5 seconds.
  • Page 14 Example of Master - Slave defrost function AKO-D144xx-RC AKO-D143xx I max.: 16 A I max.: 16 A Master Slave 10 11 Settings Settings: d7=0 P4=2 d7=0 P4=2 P6=5 P6=1 P10=4 AKO-D143xx Slave Settings: d7=0 P4=2 P6=1 P10=4 AKO-D143xx Slave Settings:...

  • Page 15: Fan Control (Only Controllers With Two Or More Relays)

    in the probe (E2), the fans will always run ers F2 to F5. s and parameter F5 defines the status of the gital inputs as door contact (P10 or P11=1). 4.3.- Fan control (only controllers with two or more relays) Fan control s activated only for defrost by resistors, cycle COOL...

  • Page 16: Pump Down Function (Only Four-Relay Controllers)

    4.5.- Pump down function (only four-relay controllers) This function prevents compressor problems caused by movement of the refrigerant, using a stop/start technique of the unit controlled by liquid solenoid, the low pressure switch and the compressor. For this feature to be active, the auxiliary relay must be set as "Pump down" (P6=4), which automatically configures digital input 1 as "low pressure switch"...

  • Page 17: Alarms

    4.6.- Alarms The unit alerts users via a message on the screen, by activating a relay* or both, when the programmed parameter criteria are met. Max/Min Temperature Alarm Shows the AH or AL message when the temperature in probe 1 reaches the value set in the A1 (maximum temperature) and A2 (low temperature) parameters.

  • Page 18: Chapter 5: Wiring

    A9=0 relay active (ON) in case of alarm (no alarm OFF); A9=1 Inactive relay (OFF) in case of alarm (no alarm ON) 5.- Wiring 5.1.- Thermometers AKO-D14012 AKO-D14023, AKO-D14024 230 V~ 12 V 50/60 Hz Probe 1...

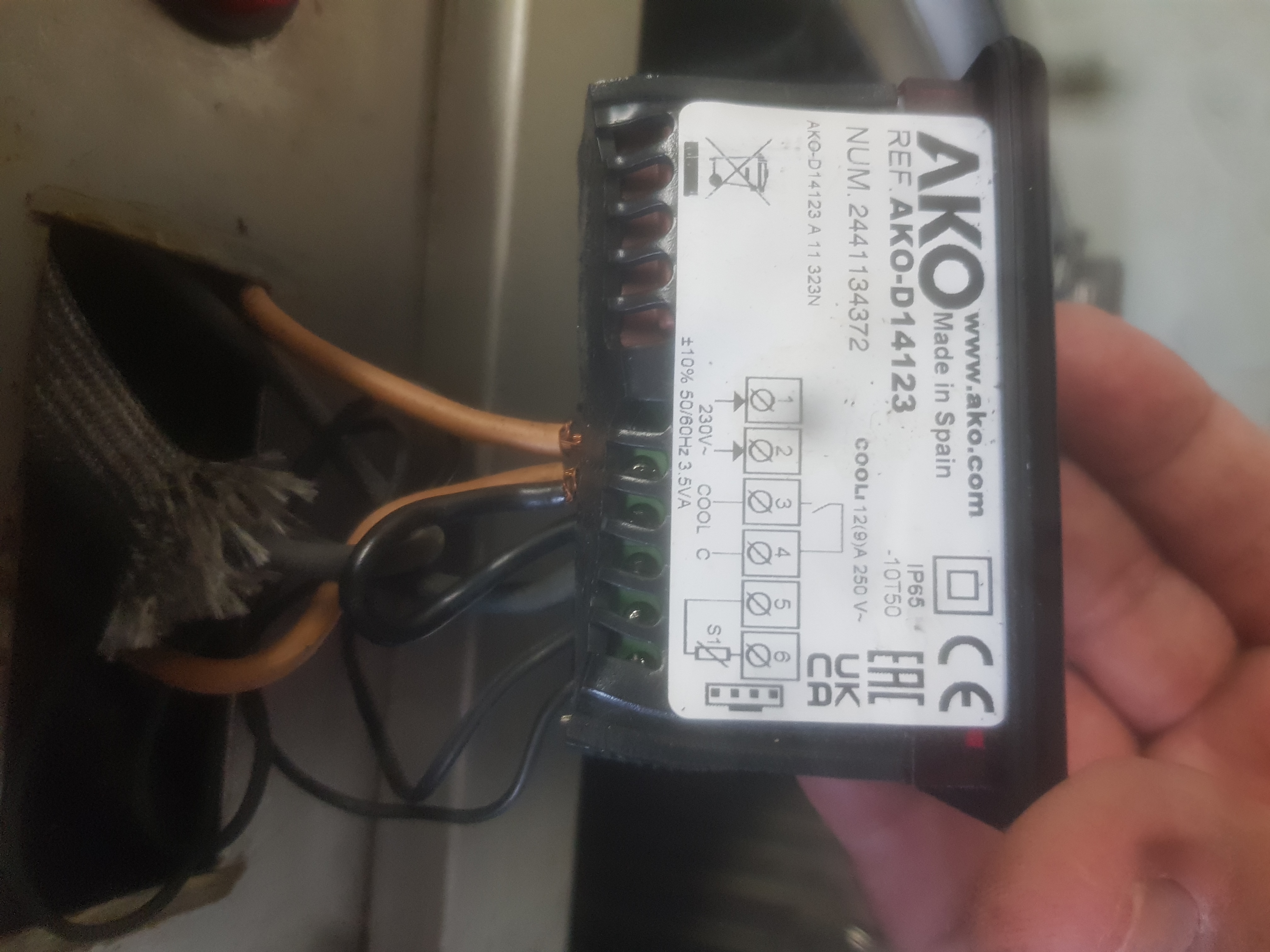

  • Page 19: 1-Relay Controller

    5.2.- 1-relay controller AKO-D14112 AKO-D14120 / D14123 / D14125 / D10123 I max.: 16 A I max.: 16 A 16 A 16 A 10 11 12 V AKO-D14120 COOL / 120 V~ Probe 1 50/60 Hz 24 V AKO-D14123/14125/10123 COOL...

  • Page 20: 2-Relay Controller

    5.3.- 2-relay controller AKO-D14212 / D14220 / D14223 / D10223 I max.: 16 A 16 A 10 11 AUX. AKO-D14212 COOL 12 V AKO-D14220 120 V~ 50/60 Hz C.HEATER AKO-D14223/10223 230 V~ 50/60 Hz 5.4.- 3-relay controller Modbus AKO-D14312 / D14320 / D14323 / D10323 AKO-D14323-C I max.:...

  • Page 21: 4-Relay Controller

    Models with communication capabilities (see table on page 6) have an RS485 (MODBUS) data connection port, which allows users to manage them remotely via a PC with the AKO-5004 programme or an AKO-5005 server. A different address must be assigned to each unit on the same network. This address is defined by parameter P5.

  • Page 22: Chapter 7: Parameter Setup

    7.- Parameter setup Through the programming menu users can set different parameters to adjust the operation of the controller to the needs of their installation. 7.1.- Programming Menu To change the set point, press the SET button for 5 seconds, or until the "SP" is displayed on the screen (not available in thermometers).

  • Page 23: Changing The Operating Parameters

    7.1.2.- Changing the operating parameters Press the SET button for 10 seconds or until "PrG" appears on the screen. After 20 seconds with no key being pressed, the equipment will return to the previous level. If you are on level 3, the changes will not be saved.

  • Page 24: Parameters

    B: Available in AKO-D14120 / D14123 / D14124 / D14125 / D10123 C: Available in AKO-D14112 / D14123-2 / D14123-2-RC D: Available in AKO-D14212 / D14220 / D14223 / D14312 / D14320 / D14323 / D14323-C / D10223 / D10323 E: Available in AKO-D14412-RC, AKO-D14423-RC...
  • Page 25 B: Available in AKO-D14120 / D14123 / D14124 / D14125 / D10123 C: Available in AKO-D14112 / D14123-2 / D14123-2-RC D: Available in AKO-D14212 / D14220 / D14223 / D14312 / D14320 / D14323 / D14323-C / D10223 / D10323 E: Available in AKO-D14412-RC, AKO-D14423-RC...
  • Page 26 B: Available in AKO-D14120 / D14123 / D14124 / D14125 / D10123 C: Available in AKO-D14112 / D14123-2 / D14123-2-RC D: Available in AKO-D14212 / D14220 / D14223 / D14312 / D14320 / D14323 / D14323-C / D10223 / D10323 E: Available in AKO-D14412-RC, AKO-D14423-RC...
  • Page 27 B: Available in AKO-D14120 / D14123 / D14124 / D14125 / D10123 C: Available in AKO-D14112 / D14123-2 / D14123-2-RC D: Available in AKO-D14212 / D14220 / D14223 / D14312 / D14320 / D14323 / D14323-C / D10223 / D10323 E: Available in AKO-D14412-RC, AKO-D14423-RC...
  • Page 28 B: Available in AKO-D14120 / D14123 / D14124 / D14125 / D10123 C: Available in AKO-D14112 / D14123-2 / D14123-2-RC D: Available in AKO-D14212 / D14220 / D14223 / D14312 / D14320 / D14323 / D14323-C / D10223 / D10323 E: Available in AKO-D14412-RC, AKO-D14423-RC...

  • Page 29: Technical Specifications

    AKO-D14012/D14112 ........
  • Page 30 8.1- Dimensions AKO-D14xxx 79 mm AKO-D10xxx 165 mm 31.5 mm 20.8 mm 181 mm AKO-D14012/D14023/D14024/D14120 Other models D14123/D14124/D14125/D10123 7,1 mm 41,1 mm 7,1 mm 60,4 mm 8.2- Mounting AKO-D14xxx AKO-D10xxx 1 6 5 m m 7 1 m m 1 3 6 m m...
  • Page 32 AKO ELECTROMECÁNICA, S.A.L. Av. Roquetes, 30-38 | 08812 Sant Pere de Ribes | Barcelona | España Tel. (34) 938 142 700 | Fax (34) 938 934 054 | e-mail: ako@ako.com | www.ako.com Updated information on our website: www.ako.com...
