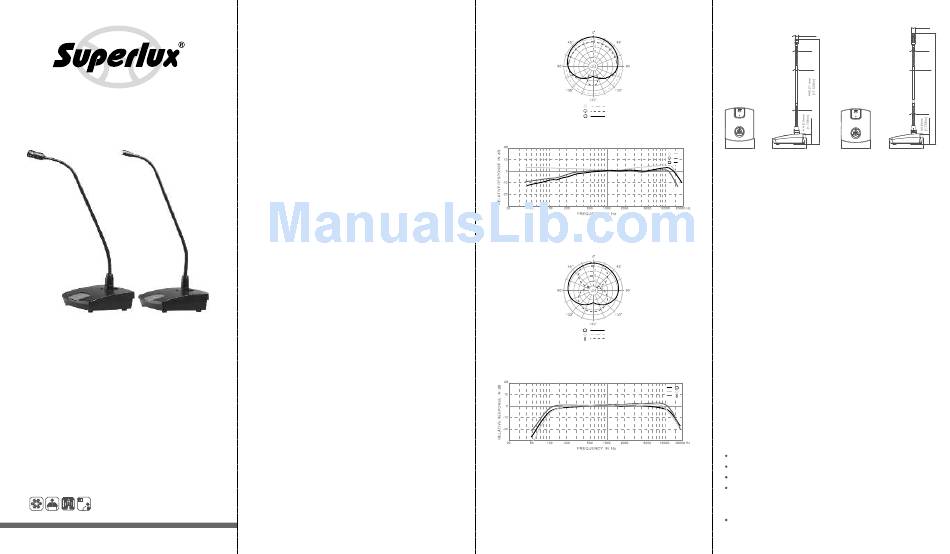

Superlux E361 User Manual

J U S T P L A Y I T
E361 E309D PRO
E309D PRO
High Quality Condenser Gooseneck Microphone
E361
Continuously Variable Pattern Gooseneck Microphone
User Guide
G O A N G - F A N N C O . , L T D .
© 2010, SUPERLUX I
LB100E36101EN

Specifications

Transducer
Back Electret
Polar Pattern
E309D PRO: Select from 3 capsules: cardioid, supercardioid
and omni-directional. The three model numbers are as bellow:
E309DU PRO with incorporated cardioid capsule
E309DH PRO with incorporated supercardioid capsule
E309DO PRO with incorporated omni-directional capsule
E361: Dual capsule design with continuously variable polar pattern
Frequency Response:
E309D PRO: 20-20,000 Hz
E361: 80-18,000 Hz
Dynamic Range (standard)
E309D PRO: 105 dB
E361: 107 dB
Signal-to-Noise Ratio
E309D PRO: 75 dB
E361: 81 dB
Equivalent Noise Level
E309D PRO: 19 dB
E361: 15 dB
Max. SPL
E309D PRO: 124 dB SPL
E361: 120 dB SPL
Sensitivity
E309D PRO: - 38±2 dBV/Pa
E361: - 31±2 dBV/Pa
Finish
Matte-black
Power Requirement
E309D PRO: P48, 5.5mA
E361: P48, 8.6 mA
Output Impedance
200 ohms
Connector
3-pin XLR male jack
Dimensions
E309D PRO: see figure 1
E361: see figure 2
Net Weight
E309D PRO: 938 g (33.1 oz)
－1
E361: 943 g (33.3 oz)
nc.
E309D PRO
Polar Pattern (Figure 3)
123.0mm
[4.843in]
E309D PRO Dimensions(Figure 1)
Over view
The E309D PRO Miniature Gooseneck Microphone delivers the professional
features needed to achieve optimum speech pickup in board meetings,
E309D PRO
conferences, presentations, houses-of-worship and more. The E309D PRO
Frequency Response (Figure 4)
features a highly sensitive condenser capsule and is available in a cardioid,
super-cardioid or omni-directional pickup pattern for maximum flexibility and
control. The three model numbers for E309D PRO with different capsule are
as bellow:
E309DU PRO with incorporated cardioid capsule
E309DH PRO with incorporated supercardioid capsule
E309DO PRO with incorporated omni-directional capsule

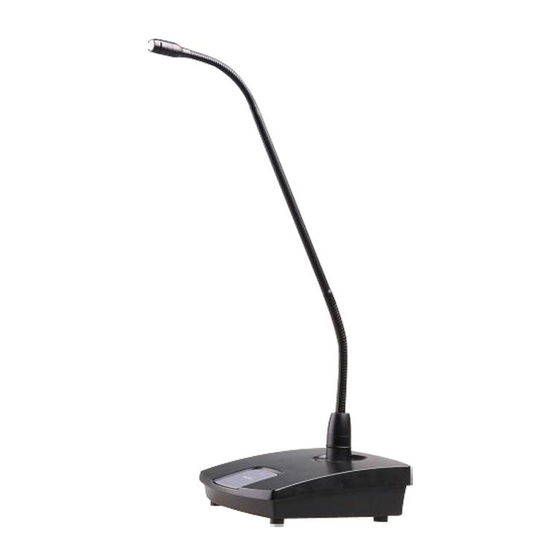

The E361 is a condenser gooseneck microphone with a continuously-variable
pickup pattern achieved by its dual capsule design. The variable pattern
control is selected by the button on its base, making the E361 flexible for a
variety of applications.
E361
Both the E309D PRO and E361 feature a brand-new design in a high-quality
Polar Pattern (Figure 5)
gooseneck. They are immune to radio-frequency (RF) interference from cell
phones, PDAs, wireless internet devices, two-way radios, etc. An On/Off
switch doubles as a power LED, providing status indication. The integrated
desk stand features a programmable membrane switch. The base features
both a 3-pin XLR male output connection and a 4-pin connector to allow a
hard-wired cable to be led out from either the bottom or the rear of the base.
Features
E361
Frequency Response (Figure 6)
－2
Ø16 .0mm
Ø11.5mm
[0.453in] [0.630in]
Ø6.0mm Ø6.0mm
[0.236in] [0.236in]
Ø7.3mm Ø7.3 mm
[0.287in] [0.287in]
465.17mm
[18.314in]
Ø8.0mm
[0.315in]
Ø8.0mm
[0.315in]
143.0mm 123.0mm 143.0mm
[5.630in] [4.843in] [5.630in]
E361 Dimensions(Figure 2)
High quality condenser capsule
Durable, high quality gooseneck structure
Integrated programmable stand
Selectable capsules from cardioid, super-cardioid and omni-
directional for E309D PRO only
E361 features dual capsule design and continuously variable pattern
RF immunity
－3
