LG LND7210 series Owner's Manual

OWNER'S MANUAL
High Definition Network
Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LND7210 series
LND7210R series
Specification
Item LND7210R series LND7210 series
Image Device 6.49 mm (1/2.8 type) CMOS (2 Mega Pixels)
Lens Type 3 mm to 9 mm F1.2
Day/Night ICR
Color 0.05 lx (F1.2, Gain : High, 1/30 sec)
Minimum
0.003 lx (F1.2, Gain : High,
Illumination
B/W 0 lx (LED On)
1/30 sec)
IR Distance (LND7210R only) 20 m
WDR Support
Backlight Compensation, 2D+3D-DNR, De-fog, Exposure
Image Enhancement Control, AGC, White Balance, Privacy Masking, Sharpness,
EIS, Pivot, SmartIR (LND7210R only)
Video Analytics Motion detection, Tampering alarm, Face detection
Resolution (Maximum) Up to 1 920 x 1 080
Output RJ-45 (Network), RCA (Installation)
Frame Rate (Maximum) 60 fps @ 1 920 x 1 080
Compression H.264, H.264_High, MJPEG
Multi-Streaming Master, Slave
ROI (Smart-Codec) Support
Audio In/Out 1/1
Audio Compression G.711, G.726
2-way Audio Support
Audio Detection Support
SD Slot micro SD
Alarm In/Out 1/1
EVENT Event Notification Relay Out, Email, FTP
Pre Event Buffering Support
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this
product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces
or shall be provided with brushings.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
AB28
Integrated Client LVi510
LG Ipsolute VMS Suite, Mobile application (iPhone,
Remote S/W
Android, iPad)
Connections Up to 20
Password protection, HTTPS (SSL, TLS), IP filtering, IEEE
Security
802.1X
Ethernet 10/100 Ethernet
IPv4 and IPv6 TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, DHCP, ICMP, QoS
Protocol
IPv4 FTP, SMTP, NTP, ARP, SNMP v1/v2c/v3, DDNS(LG)
Open Protocol ONVIF 2.2 Profile S, PSIA 1.1
Operation Temperature/Humidity -10 ºC to 50 ºC / 0 % RH to 80 % RH
Power Source PoE, DC 12 V
Power Consumption 8.7 W (DC 12 V), 10.4 W (PoE 48 V)
Input current Maximum 730 mA (DC 12 V), Maximum 280 mA (PoE)
Dimension (Ø x H) 140 mm x 122 mm
Weight 612 g
Contents
Camera, CD (Software and Owner's Manual), Installation Manual, Test monitor cable,
Screws (4 EA), Installation sticker, Camera mounting bracket
Warning: Do not install this equipment in a
confined space such as a bookcase or similar
unit.
Warning: Wiring methods shall be in
accordance with the National Electric Code,
ANSI/NFPA 70.
Warning: This is a class A product. In a
domestic environment this product may cause
radio interference in which case the user may
be required to take adequate measures.
Warning: To reduce a risk of fire or electric
shock, do not expose this product to rain or
moisture.
Caution: This installation shall be made by a
qualified service person and shall conform to
all local codes.
Caution: To avoid electrical shock, do not
open the cabinet. Refer servicing to qualified
personnel only.
Caution: The apparatus shall not be exposed
to water (dripping or splashing) and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
To disconnect power from mains, pull
out the mains cord plug. When installing
the product, ensure that the plug is easily
accessible.
LG Electronics hereby declares
that this/these product(s) is/are
in compliance with the essential
requirements and other relevant
provisions of Directive 2004/108/
EC and 2011/65/EU.
Contact office for compliance of this
product:
LG Electronics Inc.
EU Representative, Krijgsman 1,1186 DM
Amstelveen, The Netherlands

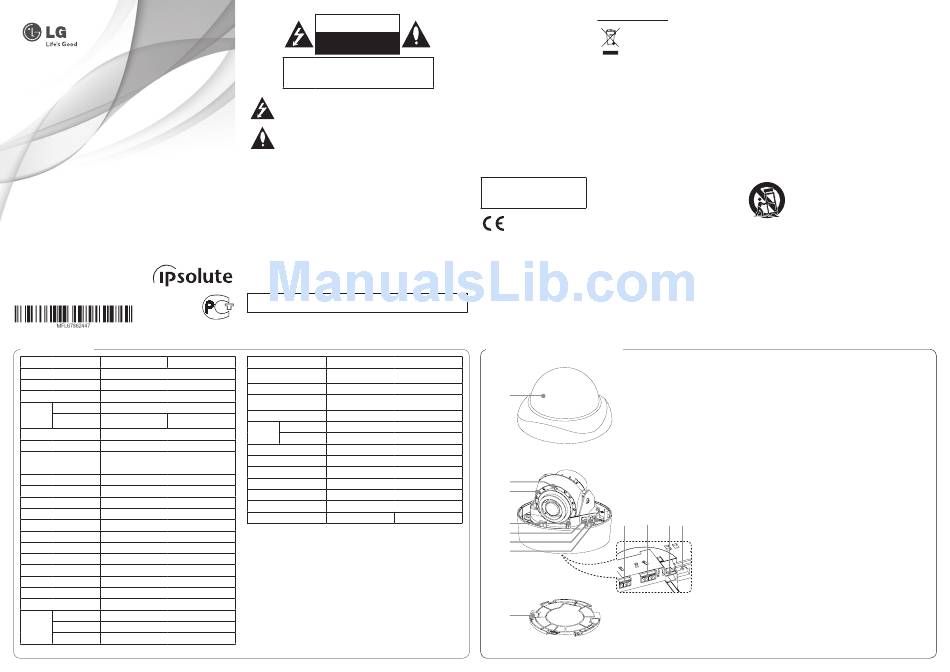

Part Names and Functions
a
b
c
607 g
d
e
f
g
l
Disposal of your old appliance as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
1. When this crossed-out produce heat.
wheeled bin symbol is 9. Do not defeat the safety purpose of
attached to a product
the polarized or grounding-type plug.
it means the product is
A polarized plug has two blades with
covered by the European one wider than the other. A grounding
Directive 2002/96/EC.
type plug has two blades and a third
2. All electrical and electronic
grounding prong. The wide blade or the
products should be third prong are provided for your safety.
disposed of separately from
If the provided plug does not fit into
the municipal waste stream
your outlet, consult an electrician for
via designated collection replacement of the obsolete outlet.
facilities appointed by the 10. Protect the power cord from being
government or the local
walked on or pinched particularly at
authorities.
plugs, convenience receptacles, and the
3. The correct disposal of point where they exit from the apparatus.
your old appliance will help
11. Only use attachments/accessories
prevent potential negative
specified by the manufacturer.
consequences for the 12. Use only with the cart, stand, tripod,
environment and human bracket, or table specified by the
health.
manufacturer, or sold with the apparatus.
4. For more detailed When a cart is used, use caution when
information about disposal moving the cart/apparatus combination
of your old appliance,
to avoid injury from tip-over.
please contact your city
office, waste disposal
service or the shop
where you purchased the
product.
EEE Compliance with Directive.
13. Unplug this apparatus during lightning
(for Turkey only)
storms or when unused for long periods
of time.
Important Safety
14. Refer all servicing to qualified service
Instructions
personnel. Servicing is required when
the apparatus has been damaged in any
1. Read these instructions.
way, such as power-supply cord or plug
2. Keep these instructions.
is damaged, liquid has been spilled or
3. Heed all warnings.
objects have fallen into the apparatus, the
4. Follow all instructions.
apparatus has been exposed to rain or
5. Do not use this apparatus near water.
moisture, does not operate normally, or
6. Clean only with dry cloth.
has been dropped.
7. Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such
a Dome Cover
b IR Sensor (LND7210R only)
c IR LED (LND7210R only)
d micro SD card slot
Insert the micro SD card.
e Jog button
Use this button for control the Zoom / Focus of the camera.
f Video Out Connector
Use this jack for checking the picture with portable monitor when install the camera.
g RESET button
Push the button more than 3 seconds, this would restore the factory default network
related settings.
h AUDIO IN / OUT (Line Level Input / Output)
i ALARM IN & OUT / ALARM IN & OUT RETURN
Provides physical interface for sensor and Alarm/Relay.
j Power input terminal
Connects to a DC 12 V power supply using proper cables. This camera must always be
h i j k
operated a DC 12 V. Certified/Listed Adaptor which comply with LPS.
k ETHERNET/PoE Port
Connects to a PC or a network via a hub with a 10 BASE-T/100 BASE-TX cable attached
RJ-45 connector.
NOTE:
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as a network
camera, using the same cable as that used for network connection. It eliminates the need
for power outlets at the device locations and enables easier application of uninterruptible
power supplies (LPS).
l Camera mounting bracket
You can lock the camera mounting bracket by tighten the screws.
Handling of the unit
Be careful not to spill water or other liquids on
the unit. Be cautious not to get combustible or
metallic material inside the body. If used with
foreign matter inside, the camera is liable to
fail or to get cause of fire or electric shock.
• Remove dust or dirt on the surface of the
lens with a blower.
• Use a dry soft cloth to clean the body. If it
is very dirty, use a cloth dampened with a
small quantity of neutral detergent then
wipe dry.
• Avoid the use of volatile solvents such
as thinners, alcohol, benzene and
insecticides.
They may damage the surface finish and/
or impair the operation of the camera.
• This camera is designed for mounting
on the ceiling or wall. If you install this
camera upside down, it may cause
malfunction.
Operating and storage
location
Avoid viewing a very bright object (such as
light fittings) during an extended period. Avoid
operating or storing the unit in the following
locations.
• Extremely hot or cold places (operating
temperature -10 °C to 50 °C, however, we
recommend that the unit be used within
a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful
electromagnetic radiation such as radio
or TV transmitters.
• Do not use the camera in such place
where rapid temperature fluctuation by
switching an air conditioner on and off.
