Ozito PSCD-750 Instruction Manual

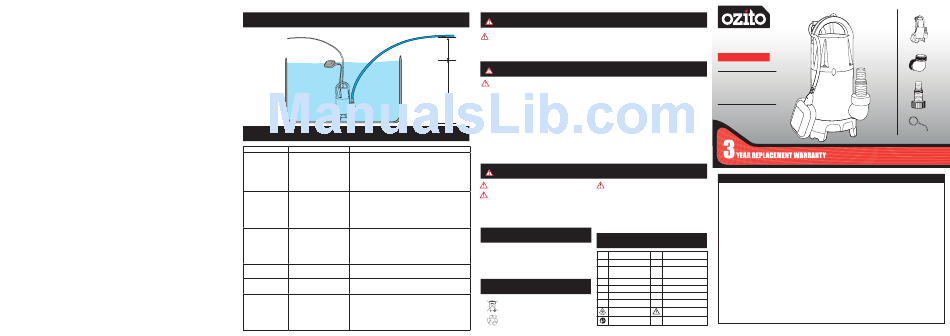

INSTALLATION
Discharge Point
Power
Cable:11m
Max.Head: 8m
Water Level
Float Switch
Max.
Immersion
Depth 7m
Water Pump
Container

TROUBLESHOOTING

Problem Possible Cause Solution
The pump does not start, Pump is not connected to the power supply Check that the pump is connected to the mains power supply
or pump water
Float switch has not been activated, water Manually raise the position of the float switch
level too low
The impellor is stuck Turn pump off and inspect and clean obstruction
The thermal overload protection is activated Wait for the motor to cool and it will automatically start operation
The motor is damaged Contact Ozito customer service
The pump does not supply water Air bleed valve blocked Clean the air bleed valve (Refer section 6 "air bleed valve")
when the motor is running
The suction base is obstructed/blocked Clean the suction base of any foreign matter and debris
Air lock in the hose/tube and/or pump (air Perform several start-ups in order to remove all the air or lift and tilt the pump slightly while the
bubbles) pump is running
Discharge hose/tube (not included) is kinked Un-kink the discharge hose/tube. Or replace hose/tube
or damaged Disconnect the mains power and check the discharge outlet and filter for any foreign matter
The pump flow rate is reduced The suction base is partially obstructed/ Clean the suction base of any foreign matter and debris
blocked
The hose/tube is obstructed Remove the obstructions
Air leak in the suction line or joints Check the suction line connections for air leaks and tighten or fix where found
Ensure the discharge lines are the correct length and all assembly instructions are adhered to
Incorrect assembly leads to air and water
leakage in the discharge lines
Pump will not turn off, even The float switch is stuck in the "on" position Ensure that the float switch is free to operate normally. Contact Ozito customer service if the
though the water level is low problem still occurs
Hose/tube does not stay on the The hose/tube is slightly wider than the An adhesive can be used inside the hose/tube to prevent this or teflon tape can be fixed
universal adaptor when water is dimension of the universal adaptor around the universal adaptor or a hose clamp can be used
travelling through
The pump operates intermittently The suction base is obstructed/blocked Clean the suction base of any foreign matter and debris
Ensure the pump is connected into 230-240V power supply
Incorrect voltage is being used
Ensure the pump is not being used with particles thicker than 30mm.
The fluid contains particles thicker than 35mm
The motor is faulty or damaged Contact Ozito customer service
Ensure the water level is above 50mm
Water level is below 50mm

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the leakage circuit breaker. If the power outlet is external, ensure that it is weather proof. If the supply cord is
following,shouldalwaysbefollowedtoreduceriskoffire,electricshock,personalinjuryand . damaged, it must be replaced by an electrician or a power tool repairer to avoid a hazard. The water pump has
a built-in thermal protection overload switch. The water pump stops if an overload occurs. The motor restarts
material damage
Read and understand the manual prior to operating this pump . automatically after it has cooled down.
Save these instructions and other documents supplied with this pump for future reference. The electric motor has Using an Extension Lead
been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the
Always use an approved extension lead suitable for the power input of this product. Before use, inspect the
rating plate .
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. Then
Note: The supply of 230V and 240V on Ozito pumps are interchangeable for Australia and New Zealand.This using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for
pump is earthed in accordance with AS/NZS 60335-2-41. the power input of this product or which is damaged or defective may result in a risk of fire and electric shock.
Note: The power outlet used for the water pump must be protected by a 30mA residual current device or earth

GENERAL SAFETY WARNINGS

WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and b. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying pump
with your finger on the switch or plugging in pumps that have the switch on invites accidents.
instructions may result in electric shock, fire and/or serious injury.
Save these instructions c. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
1. Work area safety refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. d. When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord
b.  D onotoperatepumpsinexplosiveatmospheres,suchasinthepresenceofflammableliquids, suitable for outdoor use reduces the risk of electric shock.
gases or dust. Pumps create sparks which may ignite the dust or fumes.
4. Pump use and care
c. Keep children and bystanders away while operating a pump. Distractions can cause you to lose control.\ a. Disconnect the plug from the power source before making any adjustments, changing accessories,or
2. Electrical safety storing pumps. Such preventive safety measures reduce the risk of starting the pump accidentally.
a. Pump plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
b. Maintain pumps. Check for misalignment or binding of moving parts, breakage of parts and any other
with earthed (grounded) pumps. Unmodified plugs and matching outlets will reduce risk of electric shock.
condition that may affect the pumps operation. If damaged, have the pump repaired before use. Many
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and accidents are caused by poorly maintained pumps.
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Use the pump, and accessories etc., in accordance with these instructions and in the manner
c. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord intended for the particular type of pump, taking into account the working conditions and the work to
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of be performed. Use of the pump for operations different from intended could result in a hazardous situation.
electric shock. 5. Service
d. When operating a pump, use an extension cord suitable for wet conditions. Use of a cord suitable for a.  H aveyourpumpservicedbyaqualifiedrepairpersonusingonlyidenticalreplacementparts.This will
ensure that the safety of the pump is maintained.
wet use reduces the risk of electric shock.
a. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
e. This pump must be used with a residual current device with rated residual current of 30mA or less.
Use of an RCD reduces the risk of electric shock. qualified persons in order to avoid a hazard.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a pump. Do not use
apumpwhileyouaretiredorundertheinfluenceofdrugs,alcoholormedication. A moment of
inattention while operating a pump may result in serious personal injury.

ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS

WARNING! WARNING! The water pump together with associated pipework operate under pressure. Do not
This product is intended for pumping water in a Home Domestic application. Do
not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will disconnect water pump or pipework until internal pressure has been released. Failure to do this
could result in personal injury and damage to property.
damagethewaterpumpand/orcreateafirehazard.Failuretofollowallinstructionslistedbelow
mayresultinelectricshock,fireand/orseriousinjury. • Avoid inserting hands into the inlets/outlets of the water pump while it is connected to power.
• Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged.
WARNING! This product is not suitable for use with drinking (potable) water. If the water pump is damaged, contact Ozito customer service.
• The water pump has a built-in thermal protection overload switch. The water pump stops if an overload
This appliance is not intended for use by person (including children) with reduced physical, sensory or occurs. The motor restarts automatically after it has cooled down.
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or • The pump must not be used when people are in the water.
instruction concerning use of the appliance by a person responsible for their safety. • Never work or perform maintenance on the pump without first making sure it has been disconnected from the
Children should be supervised to ensure that they do not play with the appliance. mains power.
• Ensurethewaterpumpisdisconnectedfrommainspowerwheninstalling. • Pollution of the liquid could occur due to leakage of lubricants Important:
• Donotinstalloroperatethewaterpumpinanexplosiveenvironmentornearflammablematerial. Avoid inserting hands into the mouth of the pump if it is connected to the mains.
The electrical connection must always be made in a dry area. Make sure that electrical connections are protected
• Donotoperatethewaterpumpwithoutliquid.
from inundations.
• Donotrunthewaterpumpdry.
Protect the plug and the power cable from heat, oil or sharp edges.
If damaged, The power cable must be replaced by a qualified electrician.

SPARE PARTS

DESCRIPTION OF SYMBOLS

Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
V Hz
Volts
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service: ~ Alternating current W
Australia 1800 069 486 New Zealand 0508 069 486 n
/min Revolutions or o
E-mail: enquires@ozito.com.au reciprocation per minute
l Litres ºC

CARING FOR THE ENVIRONMENT

p/hr Per hour kPa
bar Pressure rating F
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please PVC Polyvinyl chloride IPX8 Ingress protection from water
recycle where facilities exist. Check with your local council authority
for recycling advice.
Regulator compliance mark
Recycling packaging reduces the need for landfill and raw materials.
Reuse of recycled material decreases pollution in the environment.
Read instruction manual
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.

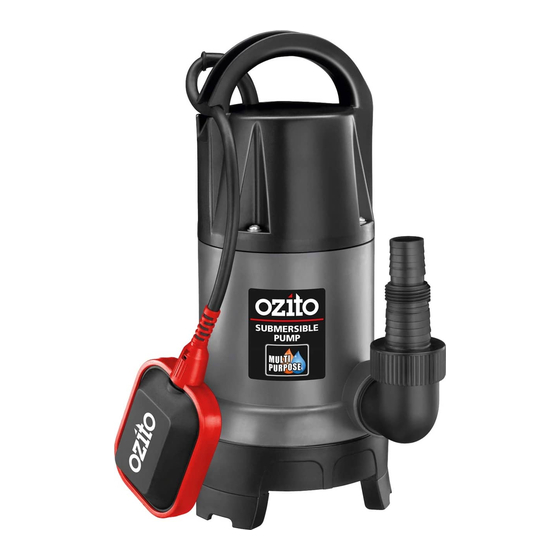

SUBMERSIBLE
WATER PUMP
750W
INSTRUCTION MANUAL

SPECIFICATIONS

Motor: 750W
Max. Flow Rate: 13,000l/h
Max. Head 8m
Max. Immersion: 7m
IP Rating: IPX8
Max Particle Size: Ø30mm
Water Temp. : 1°C - 35°C
Weight: 5.0kg
ozito.com.au

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS
The benefits provided under this warranty are in addition
WARRANTY YOU MUST RETURN THE PRODUCT to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
at law. You are entitled to a replacement or refund for a major
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
failure and for compensation for any other reasonably foreseeable
RETURNING YOUR PRODUCT FOR WARRANTY
loss or damage. You are also entitled to have the goods repaired
PLEASE TELEPHONE OUR CUSTOMER SERVICE or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
HELPLINE:
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
Australia 1800 069 486
any additional direct loss as a result of a defective product you
New Zealand 0508 069 486
may be able to claim such expenses by contacting our customer
service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE
3 YEAR REPLACEMENT WARRANTY
HAVE THE MODEL NUMBER AND DATE OF
Your product is guaranteed for a period of
PURCHASE AVAILABLE. A CUSTOMER SERVICE
Hertz
original date of purchase and is intended for DIY (Do It Yourself)
REPRESENTATIVE WILL TAKE YOUR CALL
use only. If a product is defective it will be replaced in accordance
Watts
AND ANSWER ANY QUESTIONS YOU MAY with the terms of this warranty. Warranty excludes consumable
No load speed parts, for example: o-rings, bearing, seals, gaskets, universal
HAVE RELATING TO THE WARRANTY POLICY
adaptors, L-shaped connector.
OR PROCEDURE.
WARNING
Degrees celsius
The following actions will result in the warranty being void.
Pressure rating (kilopascals)
• If the tool has been operated on a supply voltage other
Insulation class
• If the tool shows signs of damage or defects caused
• Failure to perform maintenance as set out within the
Warning
• If the tool is disassembled or tampered with in any way.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WHAT'S IN THE BOX
Submersible Pump
L-Shape Connector
Universal Adaptor
Air Bleed Valve Tool
PSCD-750
36 months from the
than that specified on the tool.
by or resulting from abuse, accidents or alterations.
instruction manual.
0214
