Ozito PPW-801 Instruction Manual

Potable pressure pump
Hide thumbs

Advertisement

Table of Contents

POTABLE
PRESSURE
PUMP
800W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor:
800W
Max. Flow Rate:
3,200 l/h
Max. Lift:
8m
Max. Head:
38m
Inlet & Outlet:
25.4mm (1"BSP) Female
Max. Delivery Pressure: 3.8 bar
Water Temp.:
1oC to 35ºC
IP Rating:
IPX4
Weight:
8.4kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
3
4
2
1
5
Bar
6
0
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: O-rings, bearing,
seals gaskets.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
• If the tool shows signs of damage or defects caused
• Failure to perform maintenance as set out within the
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
than that specified on the tool.
by or resulting from abuse, accidents or alterations.
instruction manual.
WHAT'S IN THE BOX
3
2
4
1
5
0
Bar
6

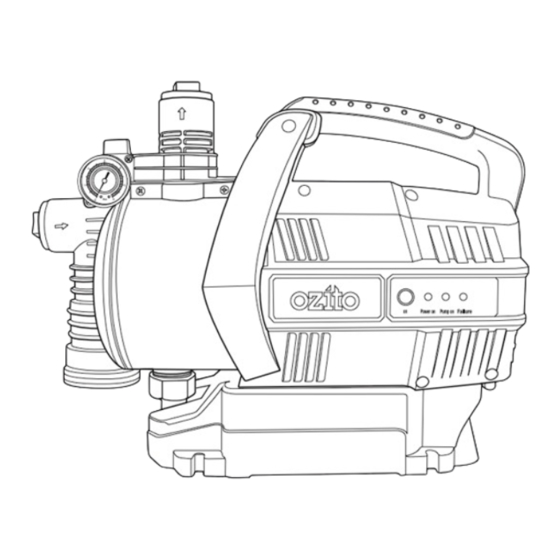

Potable Pressure Pump
PPW-801
0716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPW-801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito PPW-801

Summary of Contents for Ozito PPW-801

  • Page 1 1oC to 35ºC IP Rating: IPX4 Weight: 8.4kg ozito.com.au PPW-801 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition WARRANTY YOU MUST RETURN THE PRODUCT to other rights and remedies which are available to you at law. TO YOUR NEAREST BUNNINGS WAREHOUSE WITH Our goods come with guarantees that cannot be excluded at law.

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION POTABLE PRESSURE PUMP 1. SETTING UP 1. Suction inlet 6. On button 2. Pressure gauge 7. Indicator lights WARNING!: ENSURE THE PUMP IS DISCONNECTED 3. Priming plug 8. Water drain plug FROM THE POWER SUPPLY BEFORE PERFORMING 4.
  • Page 3 2. SUCTION INLET 3. DISCHARGE OUTLET Connecting to Connecting to the suction inlet the discharge outlet 1. Teflon tape (not included) is required on threads to ensure a water tight seal 1. Teflon tape (not included) is required on and prevent any leakage. Wind Teflon threads to ensure a water tight seal and clockwise on fittings.

  • Page 4: Operation

    OPERATION 4. PRIMING THE PUMP 5. STARTING Note: When the pump is fully primed and the air has been flushed out, CAUTION. THE PUMP SHOULD BE FILLED WITH WATER the pump is ready to operate. AFTER EACH NEW CONNECTION OR IF WATER LOSS OR AIR INTAKE HAS OCCURRED.

  • Page 5: Operating The Pump

    ‘YELLOW Power on’ LED flashing A tap downstream of the pump has been turned off increasing the water pressure to the pump’s maximum. The pump motor switches off and is in a standby mode until the tap is opened again. PPW-801...

  • Page 6: Installation

    250 micron mesh must be used to protect the pump from sand, dirt etc. WARNING! MAKE SURE THE PUMP IS DISCONNECTED The Ozito PAPF-001 Pre-filter or equivalent is available from Bunnings FROM ELECTRIC POWER SUPPLY BEFORE stores. PERFORMING MAINTENANCE PROCEDURES.

  • Page 7: Troubleshooting

    Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486...

  • Page 8: Electrical Safety

    Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the Note: The supply of 230V and 240V on Ozito pumps are interchangeable for Australia and extension lead if damaged or defective. Then using an extension lead on a reel, always New Zealand.
