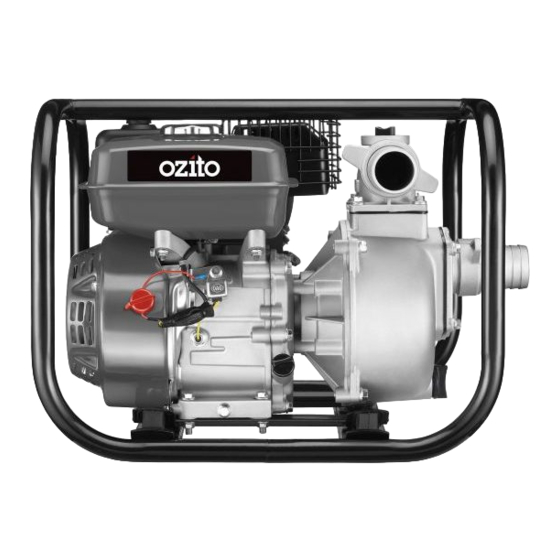

Ozito PTP-165 Instruction Manual

Ozito PTP-165 Instruction Manual

Pterol transfer water pump 208cc 4 stroke

Advertisement

Quick Links

PETROL
TRANSFER
WATER PUMP
208cc 4 STROKE
INSTRUCTION MANUAL
SPECIFICATIONS
Engine:
4 Stroke, air cooled
Engine Output:
4.6kW (6.3HP)
Fuel Type:
Unleaded petrol
Displacement:
208cc
Max. Flow Rate:
23,000l/h
Max. Head:
26m
Max. Lift:
6.5m
Inlet/Outlet:
50.8mm (2")
Delivery Pressure:
2.6 bar
Fuel Tank:
3.6L
Weight:
21.5kg
ozito.com.au
1
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
6.3HP
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1 YEAR WARRANTY
Your product is guaranteed for a period of 12 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be repaired in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: o-rings, bearing, seals, gaskets and adaptors.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
STANDARD EQUIPMENT
6.3HP
Petrol Pump
Spark Plug Wrench &
Filter
Funnel & Screwdriver
Fasteners & Adaptors
PTP-165
0120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTP-165 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito PTP-165

  • Page 1 3.6L Weight: 21.5kg Fasteners & Adaptors ozito.com.au PTP-165 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION PETROL TRANSFER WATER PUMP 1. CONNECTING THE INLET 1. Air Filter 4. Fuel Lever 7. Fuel Tank 2. Throttle Lever 5. Recoil Starter 3. Choke Lever 6. Fuel Cap WARNING! ENSURE THE ENGINE IS SHUT OFF AND THE ON/OFF SWITCH IS IN THE OFF POSITION BEFORE PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
  • Page 3: Connecting The Outlet

    2. CONNECTING THE OUTLET 3. INSTALLATION Connecting the Discharge Outlet WARNING!: ALWAYS CARRY OR LIFT THE PUMP BY THE The pump has 1 outlet (50.8mm), which allows for smaller outlet (25.4 FRAME TO AVOID DAMAGING THE UNIT. or 40mm connector) size to be used to pump water, however this will result in lower pressure and flow rate.
  • Page 4: Operation

    OPERATION 4. PRIMING THE PUMP FOR OPERATION 5. FUEL & OIL Priming the pump prepares the motor for safe operation. Adding Fuel WARNING! BE SURE TO STOP THE ENGINE AND THE CAUTION: DO NOT RUN THE PUMP DRY, THIS MAY ON/OFF SWITCH IS IN THE OFF POSITION BEFORE RESULT IN DAMAGE TO THE PUMP.
  • Page 5: Pre-Operation Inspection

    10-20 seconds. 2. Turn the on/off switch to the off position and move the fuel lever to the left (closed position). Note: Allow the engine to cool down before moving or storing the pump. PTP-165...
  • Page 6 OPERATION 8. ADJUSTING THROTTLE 9. MAINTENANCE Storing the Pump The throttle is used to regulate the rotational speed of the engine, which also controls the water flow out of the discharge outlet. Before storing the pump, it is recommended to empty the pump body of any water. Turn the drain screw 1.
  • Page 7: Maintenance Chart

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local Note: Ozito will not be responsible for any damage or injuries caused council authority for recycling advice. by repair of the pump by an unauthorised person or by mishandling.
  • Page 8: General Power Tool Safety Warnings

    Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. • Never refuel while engine is running or hot. Fuel spilled on a hot engine could result in a fire or explosion. If the water pump is damaged, contact Ozito customer service. •  U secautionwhenhandlingpetrol.Refuelinwell-ventilatedarea.Donotoverfillfueltankanddonot •...
