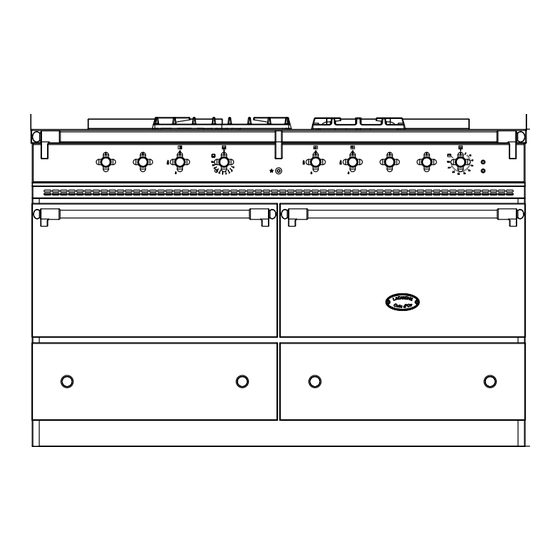

- Page 1 Lacanche Range Cooker SULLY CHALONNAIS LG 1432 GE/ EE/ GCT/ ECT LCF 1432 GE/ EE/ GCT/ ECT LVTR 1442 EE/ ECT Sully - Ft 124a - GB - Rév 06 - Modifié le : 07/10/2013 1/42...
-
Page 2: Table Of Contents
CONTENTS SULLY - CHALONNAIS (UK) TECHNICAL DATA —————————————————————————————————————————3 INSTALLER’S MANUAL INSTALLATION / POSITIONING —————————————————————————————————————————9 GAS CONNECTION —————————————————————————————————————————11 OPENING AND CLOSING THE HOB —————————————————————————————————————————12 CHANGING GAS TYPE —————————————————————————————————————————13 ELECTRIC CONNECTION —————————————————————————————————————————17 SERVICING / REPAIRS —————————————————————————————————————————18 ELECTRIC CIRCUIT DIAGRAMS —————————————————————————————————————————19 GAS CIRCUIT —————————————————————————————————————————21 USER’S MANUAL CAUTION... -
Page 3: Technical Data
TECHNICAL DATA SULLY - CHALONNAIS (UK) CLASSIC AND TRADITIONAL : GAS HOBS 1405 The height of the cooker is adjustable between 900 and 916 mm. Front body panels : Stainless steel or enamelled steel. ► Hob : Pressed stainless steel. ►... - Page 4 TECHNICAL DATA Gas Oven : Enamelled sheet metal. ► Dimensions L x H x P : 530 mm x 305 mm x 455 mm, 74 litre. ► 3 shelf levels with 70 mm spacing in between. ► Thermostatically controlled oven with thermocouple. ►...
- Page 5 TECHNICAL DATA SULLY ELECTRIC - CHALONNAIS ELECTRIC (UK) RADIANT HOB 1405 The height of the cooker is adjustable between 900 and 916 mm. Front body panels : Stainless steel or enamelled steel. ► Hob : Pressed stainless steel. ► : ELECTRIC ►SULLY-CHALONNAIS (UK) RADIANT HOB...
- Page 6 TECHNICAL DATA Static Electric Oven : Enamelled sheet metal. ► Dimensions L x H x P : 530 mm x 305 mm x 455 mm, 74 litre. ► 3 shelf levels with 70 mm spacing in between. ► Thermostatically controlled roof and base heating elements, safety thermostat. ►...
-
Page 7: Installer's Manual
Lacanche Range Cooker SULLY CHALONNAIS INSTALLER’S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual should be handed over to the user after installation. Sully - Ft 124a - GB - Rév 06 - Modifié le : 07/10/2013... -
Page 9: Installation / Positioning
INSTALLATION / POSITIONING CAUTION : The purchaser undertakes to install or arrange for his/her equipment to be installed in a workmanlike manner and in accordance with the applicable regulations and standards. Any servicing or repair work on this appliance must be performed by a qualified engineer. Never attempt to lift the cooker by holding the hand rails. - Page 10 INSTALLATION/ POSITIONING Ensure that the materials adjacent to the lateral panels of the oven are not flammable. If the adjacent parts contain heat-sensitive materials, ensure there is a 50-mm gap between the side of the oven and the parts in question. ...
-
Page 11: Gas Connection
GAS CONNECTION Recommendations : Ensure that the oven is set to the type of gas used (see label on the gas connector). If the gas supply is not compatible with the gas setting of your range the setting must be modified. Refer to the “Changing gas type”... -
Page 12: Opening And Closing The Hob
OPENING AND CLOSING THE HOB It may be necessary to open the hob under the following circumstances : - Making adjustments when changing gas type. - Adjusting thermocouples. - Resetting the safety thermostat on the Radiant. Electric Hob To remove top : 1- Remove the pan racks and burners. -
Page 13: Changing Gas Type
CHANGING GAS TYPE Lacanche ranges are supplied with the appropriate gas fitting for the gas type specified when the order is placed. However, the setting must be fine tuned (COMMISIONED) when the cooker is installed. The cooker is designed to operate with the gases in table 4, appendix 0. - Page 14 CHANGING GAS TYPE Comissioning (fine tuning) gas burner : After connection or changing gas type, it is imperative to adjust for a fine tuning. Ignite all the burners on the hob. ► After a couple of minutes, reduce to lowest setting. ►...
- Page 15 CHANGING GAS TYPE Screw Injector Air ring Setsrew Loosen the small grub screw inside the nut ► (see , figure. ) to release the gas pipe. Carefully release the gas pipe running through the air ring into the burner. Push the burner downwards and then slide ►...
- Page 16 CHANGING GAS TYPE Adjusting the primary air : > Adjust the airflow by moving the adjusting air ring (figure ), table n° 7 appendix 0. > Replace base plate and drawer (figure Adjusting air ring CAUTION : After connection or changing gas type, it is imperative to adjust for a fine tuning.
-
Page 17: Electric Connection
ELECTRIC CONNECTION The cooker must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation. Before connection, check : That the electrical supply of the system is compatible with the voltage and power of the range. ... -
Page 18: Servicing / Repairs
SERVICING / REPAIRS All work on or repair of an appliance must be carried out by a qualified engineer. Greasing gas valve (Hobs and Ovens) The valve may lose its grease through use. It is therefore necessary to grease the valve in order to make it leaktight and facilitate turning. -
Page 19: Electric Circuit Diagrams
ELECTRIC CIRCUIT DIAGRAMS For references and descriptions of the various components refer to table 9 in appendix 0 LG1531G (Gas hob + 1 gas oven) ote: Ignition controller terminal lugs not in use are to be grounded. Static electric oven INSTALLER’S MANUAL Sully - Ft 124a - GB - Rév 06 - Modifié... - Page 20 ELECTRIC CIRCUIT DIAGRAMS Multifunction electric oven Vitroceramic cooktop INSTALLER’S MANUAL Sully - Ft 124a - GB - Rév 06 - Modifié le : 07/10/2013 20/42...
-
Page 21: Gas Circuit
GAS CIRCUIT For references and descriptions of the various components refer to table 9 in appendix 0 65.330004 65.330001 65.330003 65.640006 65.640003 65.640005 65.32638 65.51114 88.064012 65.51110 65.39895 65.226006 1,5 kW = 65.064007 3,0 kW= 65.064007 4,0 kW= 65.064007 5,0 kW= 65.064007 90 000 003 65.080005 65.033018... -
Page 23: User's Manual
Lacanche Range Cooker SULLY CHALONNAIS USER’S MANUAL IMPORTANT It must be installed in accordance with the applicable regulations and standards in an adequately ventilated room. Any changeover to a gas other than that for which the cooker is set up must be carried out by a qualified installer. - Page 24 USER’S MANUAL SULLY - CHALONNAIS (UK) CAUTION —————————————————————————————————————25 GAS FLAME HOB —————————————————————————————————————27 SIMMER PLATE (ON TRADITIONAL HOB) —————————————————————————————————————29 RADIANT ELECTRIC HOB —————————————————————————————————————30 RECOMMENDATIONS BEFORE USING OVENS —————————————————————————————————————33 GAS OVEN —————————————————————————————————————34 STATIC ELECTRIC OVEN —————————————————————————————————————36 DUAL FUNCTION ELECTRIC OVEN —————————————————————————————————————37 CLEANING AND MAINTENANCE —————————————————————————————————————39 Information regarding the elimination of electric and electronic waste —————————————————————————————————————42...
-
Page 25: Caution
CAUTION This appliance is not for use by children. If unfamiliar with this appliance, use should be overseen by a competent person who has read all the relevant information. Before use, it is mandatory to remove all the internal and external plastic packing, failure to do so will cause irreversible damage to the steel walls of the cooker. -
Page 27: Gas Flame Hob
The height of the flame can be checked easily at a glance in order to increase or reduce its power. Lacanche gas hobs for cook’s stoves are fitted with burners of different ratings. These automatically stabilised flame burners offer a very low slow setting to facilitate simmering or high heat for quick sealing. - Page 28 GAS FLAME HOB Use : Simultaneously press down onto and turn the burner dial counterclockwise to setting . Press the ignition button while maintaining pressure on burner dial for about 20 seconds to initialise safety A reduced flowrate position identified by the mark produces the preset minimum burner power (low flame).
-
Page 29: Simmer Plate (On Traditional Hob)
/ holding. By removing the central round disc, the burner below can be used as a conventional open burner. The Lacanche wok ring sits in place of the central disc, for use with a wok for stir or frying. Description : The heating plate is made entirely of enamelled cast iron. -
Page 30: Radiant Electric Hob
RADIANT ELECTRIC HOB The principle of the ra diant electric hob is relatively simple. It involves placing a heat source, generally an electric element, underneath a glass-ceramic surface, that is capable of withstanding high temperatures. Radiant hotplates provide very fast temperature increases and controllability. This feature is useful for all dishes that require rapid variation in the rate of heating. - Page 31 RADIANT ELECTRIC HOB Double-circuit hob (Ring B, 1000/ 2100 W) : Set the heating power controller to position 10 then, when the elements is red- hot, reduce the heat to the position required for cooking. To obtain maximum power from the double element, set the knob to the MAX position.
-
Page 33: Recommendations Before Using Ovens
RECOMMENDATIONS BEFORE USING OVENS Designed to help you enjoy the best performance from your ovens. To ensure you use the oven under optimal conditions and to its best advantage please read the following recommendations which will undoubtedly improve your understanding of the principles of oven cooking. An oven cooks and heats by using a heat source which is generally located inside the oven. -
Page 34: Gas Oven
GAS OVEN The gas oven is a high temperature oven with a minimum temp of 160 °C, and a strong bottom heat. It is ideal for high temp cooking such as roasting, sealing joints, poultry, pizzas, soufflés, ect ... The strong bottom heat is useful for joint roasting (e.g. poraties); it is vital to turn food during the cooking process. - Page 35 GAS OVEN The gas oven marks on you range do not correspond to English gas marks. The following table indicates the approximate temperature of the gas settings on your cooker. Temperature °C / Gas Item oven 160 °C 165 °C 180 °C 195 °C 210 °C...
-
Page 36: Static Electric Oven
REMEMBER : - GRILL FOOD WITH THE OVEN DOOR CLOSED - CHECK THE FOOD every minute or so Lacanche grills are extremely powerful. USER’S MANUAL Sully - Ft 124a - GB - Rév 06 - Modifié le : 07/10/2013... -
Page 37: Dual Function Electric Oven
DUAL FUNCTION ELECTRIC OVEN This oven has two functions: one to set the “Static Electric Oven” mode, and one to set the “Electric Convection Oven” mode. The dual function electric ovens are simple to use. Description : Made of sheet with an acid-resistant enamel coating applied at 850°C. The dual function electric ovens have 3 shelf positions (70 mm spacing) allowing shelves and flatware to slide easily. - Page 38 REMEMBER : - GRILL FOOD WITH THE OVEN DOOR CLOSED - CHECK THE FOOD every minute or so Lacanche grills are extremely powerful. USER’S MANUAL Sully - Ft 124a - GB - Rév 06 - Modifié le : 07/10/2013...
-
Page 39: Cleaning And Maintenance
CLEANING AND MAINTENANCE Before any cleaning work, close the gas supply and/or isolate from the mains electricities supply Do not use a steam cleaner to clean the range. Gas hobs : The burners are made in two parts in order to facilitate cleaning. Clean them separately,. →... - Page 40 CLEANING AND MAINTENANCE Stainless steel bodied Cookers : Use special stainless steel cleaners (ZIP INOX®, JOHNSON INOX®, PPZ INOX®, for instance). Do not use abrasive cleaners. Stainless-steel hop : The entire hob is pressed or comprises pressed recesses for easy cleaning and improved hygiene (no water trap).
- Page 41 CLEANING AND MAINTENANCE If you have a convection oven, clean the back wall protecting the turbine at least once a year. The grease carried by airflow and when the range is used at lower temperatures can create smoke. Do not allow cleaner into the fans. It is advisable to remove the back panel for cleaning: unscrew the 4 screws After cleaning, replace the back panel with the screws and the washers.
-
Page 42: Information Regarding The Elimination Of Electric And Electronic Waste
Information regarding the elimination of electric and electronic waste Government Order No. 2005-829 dated 20 July 2005 relative to the composition of electrical and electronic equipment and the elimination of waste resulting from such equipment implementing European Directives 2002/95/EC and 2002/96/EC. Electrical and electronic equipment (EEE) and Waste from Electric and Electronic ...
