Lacanche Rully Installation Manual

Hide thumbs Also See for Rully:

Advertisement

Quick Links

Download this manual See also: Installation Manual

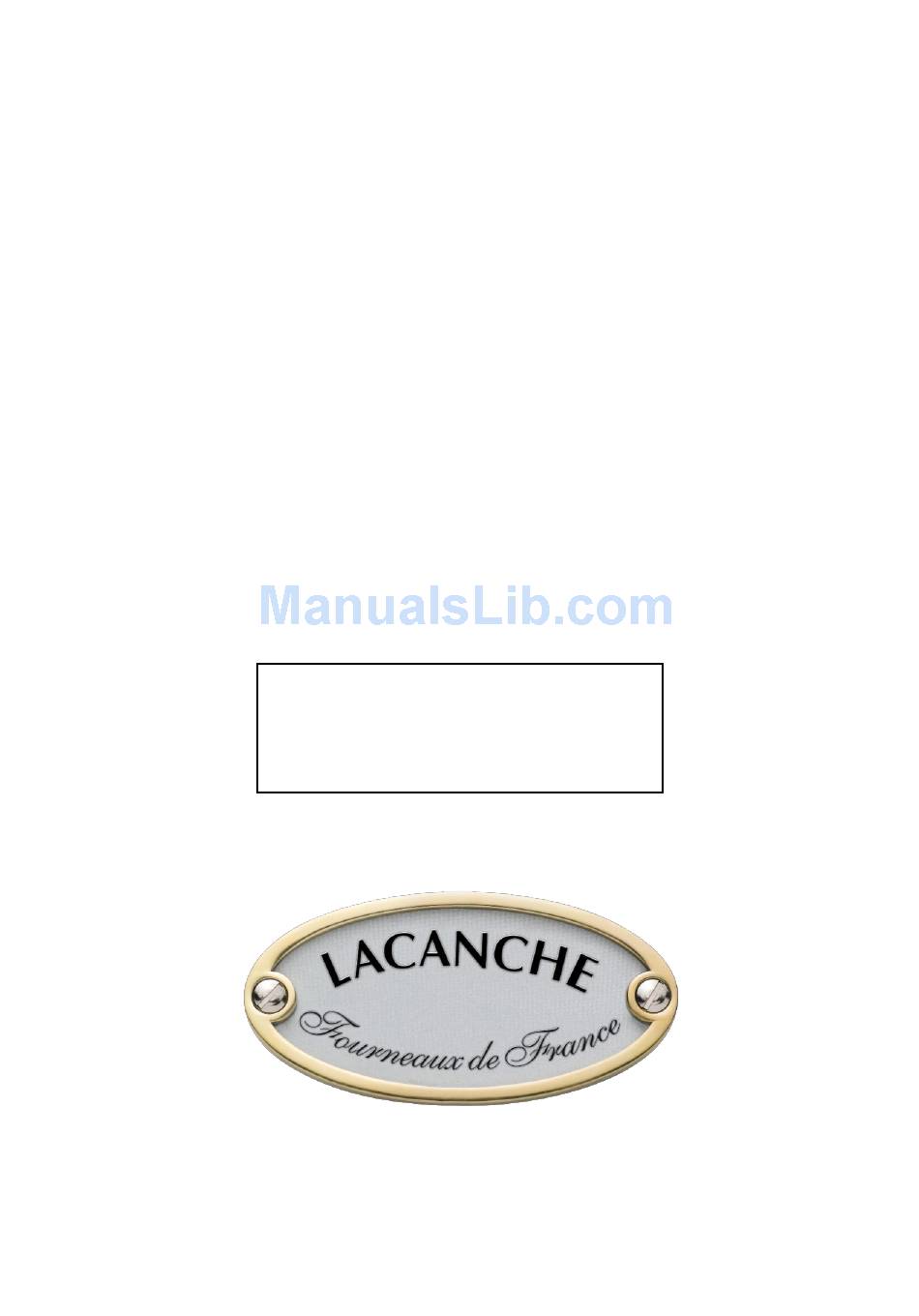

F
ourneau
Rully
«
»
INSTALLATION MANUAL
Appliances must be installed in a workmanlike manner in
accordance with the instructions in this manual and locally
applicable regulations.
This manual will be handed over to the user after
installation.
Page 1 of 17 – US –

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rully and is the answer not in the manual?

Questions and answers

Related Manuals for Lacanche Rully

Summary of Contents for Lacanche Rully

  • Page 1 Rully « » INSTALLATION MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation. Page 1 of 17 – US –...
  • Page 2 Page 2 of 17 – US –...
  • Page 3  Cabinet preparation Place gas cut-off valve at the back of this cabinet or alternate accessible location. Route pipe through cabinet wall into shaded area Place electrical outlet in this shaded area behind range Fig. 1 A flexible metal gas line, and a flexible power cord should be used to attach the range to the gas and electrical utility connections behind the range.
  • Page 4  Recommended to be installed under an exhaust hood.  In the commonwealth of Massachusetts, the appliance must be installed by a licensed plumber or gas fitter.  Do not install this unit near combustible walls, partitions, IMPORTANT pieces of furniture or decorative material unless these are covered by adequate material of the non-combustible type.
  • Page 5 Remove the pan supports and burners. Unscrew the screw(s) C on burner UF or T (Figures 4 & 5). Pull and raise the top after having loosened the 2 screws D (Fig. 6), then prop the cooking surface. A pressure regulator (fig. 7) is located in the right rear corner under the hob, to gain access to the pressure regulator, remove the top.
  • Page 6 In case of use with a gas other than that for which the 12mm HEX appliance was initially set up, it is crucial to replace the orifices and modify the adjustments as defined below. TOP BURNERS:  Orifice: Lift the air ring E. Replace the injectors F in accordance with Table 3 and Figure 10 (Ø...
  • Page 7  Adjustment of reduced flowrate of surface burners (Figure 23): After connection or change of gas, it is crucial to modify this adjustment. - Remove the control knob. Light the burner, adjust to minimum setting, then use a small screwdriver to set the adjusting screw J.
  • Page 8 Oven Orifice: Fig. 19 To replace oven orifice: Remove oven baseplate. CAUTION: when refitting place the base underneath the groove on the fascia (Figures 16 and 17). Remove screws L (Figure 18). Remove the screen below the oven (Figure 19). Loosen screw M then slide open the burner air collar towards the front of the oven (Figure 20).
  • Page 9 Connect to terminal block in accordance with figure 24. Secure the cable by means of cable clamp (not provided), item Q (Figure 25). Refit access door Fig. 23 Fig. 24 Power Specifications for Rully Ranges RULLY Voltage (V) Amperage (A) Wattage (W) ULG732E 120 / 240 24.2...
  • Page 10 BACK SPACER VENT FITTING: It is mandatory to mount the back spacer vent R to the range supplied with the appliance. Screw the wall spacer to the range according to figure, 26, with the thumbscrews and hardware provided. Then move the range backwards into position.
  • Page 11 STABILITY DEVICE INSTALLATION INSTRUCTIONS: Anti-tip bracket is designed to fit into the seam formed at the bottom of the range chassis and base plinth as shown in Figure 1.The bracket can be mounted anywhere along the seam that the bracket can be freely inserted (Figure 2). Mounting screws are not provided.
  • Page 12 SERVICE INSTRUCTIONS: - Lubricating gas valves. If the gas taps tends to stick slightly, you may follow this procedure:  1 - Shut off the gas supply valve and / or the main electrical supply of the unit.  2 - Take out the knob corresponding to the gas valve to be greased. ...
  • Page 13 GAS CIRCUIT DIAGRAMME Designation Part number Burner cap 1,5 kW 65.330004 Burner cap 3,0 W 65.330005 Burner cap 4,0 kW 65.330006 Burner cap 5,0 kW 65.330007 Burner bowl 1,5 kW 65.640008 Burner bowl 3,0 kW 65.640004 Burner bowl 4,0 kW 65.640005 Burner bowl 5,0 kW 65.640006...
  • Page 14 65.226006 65.39895 1,5 kW = 65.064007 3,0 kW = 65.064007 4,0 kW = 65.064007 5,0 kW = 65.064007 65.080005 65.033018 65.103033 65.103029 + 4 screws 65.129101 + 4 disc 65.30932 Page 14 of 17 – US –...
  • Page 15 Détail A: Détail B: 65.103032 (LP) 65.103031 (NG) 65.103033 65.103033 65.103029 Page 15 of 17 – US –...
  • Page 16 Top burners (code A,E,5,N,D,T,I,C,01,02,03,0O,0T) / gas grill (code 0Y) 120 V 60 Hz Item n° Designation Top burner electrode 65.226006 Switch 65.103030 Page 16 of 17 – US –...
  • Page 17 Convection & Static Electric oven (code D) 240 V 60 Hz arco3960 arco3960 Item n° Designation Three pole limiting thermostat 65.39942 Oven regulating thermostat 65.224010 Contactor 65.223001 Thermostat switch 65.52194 Inverter 65.222012 Roof heating element 65.211030 Base heating element 65.211026 Circular heating element 2650 W 65.211028 Convection Fan Motor...
