- Page 1 S933 Pec Deck Owner’s Manual Sports Art Industrial Co., Ltd. TUV-CERT ISO 9001/9002/14000 Certified Quality Products 2013.08.12...
-
Page 2: Table Of Contents
S933 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Install the Foot Rest ..............STEP 2 Install the Weight Stack Covers ..........STEP 3 Install the Storage Tray Holder .......... -
Page 3: Introduction

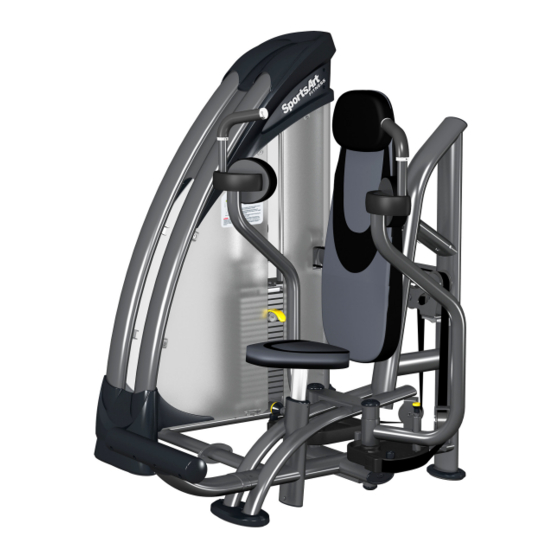

1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the S933 Independent Pec Deck machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual. -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS This product was designed and built for optimum safety. However certain precautions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual. •... -
Page 5: List Of Parts
3. LIST OF PARTS Assembly Parts No. Name Qty. No. Name Qty. A1 Main Frame A7 118 Oval Foot Cover A A2 Foot Rest A8 118 Oval Foot Cover B A3 Weight Stack Front Cover 1 A9 Storage Tray A4 Weight Stack Rear Cover 1 A5 Dual 80 Oval Foot Cover A 1 A6 Dual 80 Oval Foot Cover B 1... - Page 6 Components in the Hardware Kit Name Qty. Specification Notes Push revits L-shaped Allen wrench L-shaped Allen wrench Double open-end wrench 8*17 Components on the Product Name Specification Notes Umbrella head inner hex screw M8*L20 Spring washer Washer D17*d8.3*t2 Plastic round head hex socket M6*P1.0*L20 screws...
-
Page 7: Assemble The Product
4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product. -
Page 8: Step 2 Install The Weight Stack Covers
STEP 2 Install the Weight Stack Covers (a). Attach both front and back weight stack covers (A3)(A4) onto the weight stack frame (A1). (Note: before the attaching the front weight stack cover (A3), make sure the inside hanger is hooked to the frame before securing it to the weight stack frame.) (b). -
Page 9: Step 3 Install The Storage Tray Holder
STEP 3 Install the Storage Tray Holder Please follow the instructions (a) through (b) to install the storage tray (a). Locate the position where the storage tray (A9) attaches to the main frame (A1), then remove the screws (21) from the main frame. (b). -
Page 10: Step 4 Handle Position Adjustment Instrctions
STEP 4 Handle Position Adjustment Instructions Pull the handle position adjusting knob and rotate the handles to the the ap- propriate position, release the adjusting knob to secure the position. -
Page 11: Step 5 Seat Position Adjustment Instrctions
STEP 5 Seat Position Adjustment Instructions *Adjust the seat back: Pull the seat back lever to adjusted to the desired position and then release the seat back lever to secure the position. *Adjust the seat height: Pull the seat height lever to adjusted to the desired height and then release the seat lever to secure the position. -
Page 12: Step 6 Belt Tension Adjustment Instructions
STEP 6 Belt Tension Adjustment Instructions 1. After the installation and the final positioning of the machine, make the appropriate adjustments to ensure that the machine is working. 2. If the belt is too tight or too loose, first loosen nut A as shown then adjust nut B. -
Page 13: Step 7 Minor Weight Stack Instructions
STEP 7 Minor Weight Stack Instructions To adjust the minor weight stack, insert the upper pin to add 3.5Lbs/1.5kgs or the lower pin to add 6.5Lbs/3kgs. When the minor weights are not in use, pull the pin to release the weight. -
Page 14: Maintenance
5. MAINTENANCE This section covers maintenance topics and includes a maintenance schedule, task list, and log. MAINTENANCE Machine Maintenance 1. Please clean and lubricate the guide rod once a week. (a). Use a clean, lint-free towel to apply the lubricant onto the guide rods. (b). - Page 15 MAINTENANCE Machine Maintenance IMPORTANT NOTE 1. Once the machine belt reaches the warranty period, it is recommended to replace the belt. 2. Belt safety check, after a year in use, check belt weekly. Depend on the use conditions, increase the frequency of inspections. (As shown: (A) a belt, (B) the belt extension) During inspection, if found cracks in the belt or the belt is exposed to other unusual circumstances, please immediately stop using the machine and...
-
Page 16: Maintenance Schedule
MAINTENANCE Schedule Area Week Month Quarter Year Notes Exterior Clean. Screws Inspect for looseness and secure if necessary. Testing To confirm that the machine is working properly Cushions Wipe with a damp cloth. Belt Check for damage or wear. If so, need for replacement. -
Page 17: Maintenance Task List
MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1. -
Page 18: Maintenance One-Year Maintenance Log
MAINTENANCE One-Year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28... -
Page 19: Consignes De Sécurité Importantes
6. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
