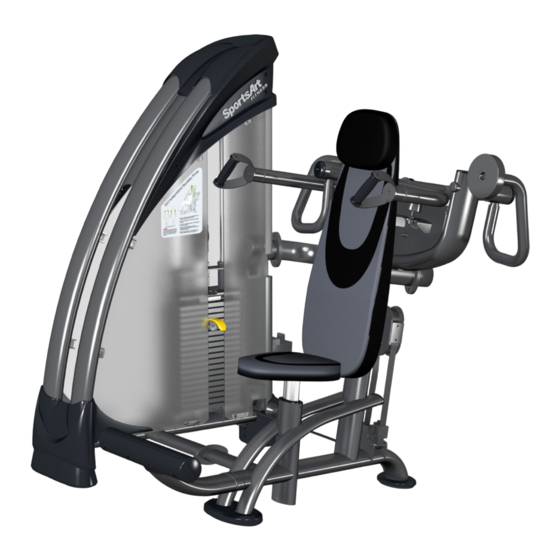

Independent shoulder press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S917 Independent Shoulder Press
Owner's Manual
Sports Art Industrial Co., Ltd.
TUV-CERT ISO 9001/9002/14000 Certified Quality Products
2013.08.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S917 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness S917

Summary of Contents for SportsArt Fitness S917

  • Page 1 S917 Independent Shoulder Press Owner’s Manual Sports Art Industrial Co., Ltd. TUV-CERT ISO 9001/9002/14000 Certified Quality Products 2013.08.12...

  • Page 2: Table Of Contents

    S917 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Install the Main Frame .............. STEP 2 Install the Counterweight Levers ..........STEP 3 Install the Belt ................

  • Page 3: Introduction

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the S917 Independent Shoulder Press machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.

  • Page 4: Safety Precautions

    2. SAFETY PRECAUTIONS This product was designed and built for optimum safety. However certain precautions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual. •...

  • Page 5: List Of Parts

    3. LIST OF PARTS Assembly Parts No. Name Qty. No. Name Qty. A1 Weight Stack Frame A7 Dual 80 Oval Foot Cover B 1 A2 Seat Frame A8 118 Oval Foot Cover A A3 Foot Rest A9 118 Oval Foot Cover B A4 Weight Stack Front Cover 1 A10 Connecting Tube A5 Weight Stack Rear Cover 1...
  • Page 6 Components in the Hardware Kit Name Qty. Specification Notes Push revits L-shaped Allen wrench L-shaped Allen wrench L-shaped Allen wrench Double open-end wrench 8*17 Double open-end wrench 17*23 Components on the Product Name Specification Notes Hex screw M10*P1.5*L30 Spring washer Washer D16*d10.2*t1.0 Nylon hex nut...

  • Page 7: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.

  • Page 8: Step 2 Install The Counterweight Levers

    STEP 2 Install the Counterweight Levers (a). Before installing the counterweight levers (A11), please cut the securing strap that holds both handles, then safely lower the handles. (b). Remove the screws (21) from the connecting end of the handles, then attach the counterweight levers to the connecting end of the handles using screws (21).

  • Page 9: Step 3 Install The Belt

    STEP 3 Install the Belt (a). In area A, please remove the pulley from its housing. Attach the belt onto the pulley then secure the assembly with screws. In area B, remove the bottom pulley from its housing. Attach the belt onto the pulley then secure the assembly with screws.

  • Page 10: Step 4 Install The Foot Rest

    STEP 4 Install the Foot Rest (a). First, remove the screws (23) from the foot rest (A3). (b). Attach the foot rest (A3) onto the seat frame (A2), then secure the assembly with screws (23).

  • Page 11: Step 5 Install The Weight Stack Covers

    STEP 5 Install the Weight Stack Covers (a). Attach both front and back weight stack covers (A4)(A5) onto the weight stack frame (A1). (Note: before the attaching the front weight stack cover (A4), make sure the inside hanger is hooked to the frame before securing it to the weight stack frame.) (b).

  • Page 12: Step 6 Install The Storage Tray Holder

    STEP 6 Install the Storage Tray Holder Please follow the instructions (a) through (b) to install the storage tray (a). Locate the position where the storage tray (A12) attaches to the weight stack frame (A1), then remove the screws (24) from the weight stack frame. (b).

  • Page 13: Step 7 Seat Adjustment Instructions

    STEP 7 Seat Adjustment Instructions * When adjusting the seat height, pull the seat lever to adjusted to the desired height and then release the seat lever. * If the machine has not been used for a long time or the seat is adjusting slowly.

  • Page 14: Step 8 Belt Tension Adjustment Instructions

    STEP 8 Belt Tension Adjustment Instructions 1. After the installation and the final positioning of the machine, make the appropriate adjustments to ensure that the machine is working. 2. If the belt is too tight or too loose, first loosen nut A as shown then adjust nut B.

  • Page 15: Step 9 Minor Weight Stack Instructions

    STEP 9 Minor Weight Stack Instructions To adjust the minor weight stack, insert the upper pin to add 3.5Lbs/1.5kgs or the lower pin to add 6.5Lbs/3kgs. When the minor weights are not in use, pull the pin to release the weight.

  • Page 16: Maintenance

    5. MAINTENANCE This section covers maintenance topics and includes a maintenance schedule, task list, and log. MAINTENANCE Machine Maintenance 1. Please clean and lubricate the guide rod once a week. (a). Use a clean, lint-free towel to apply the lubricant onto the guide rods. (b).
  • Page 17 MAINTENANCE Machine Maintenance IMPORTANT NOTE 1. Once the machine belt reaches the warranty period, it is recommended to replace the belt. 2. Belt safety check, after a year in use, check belt weekly. Depend on the use conditions, increase the frequency of inspections. (As shown: (A) a belt, (B) the belt extension) During inspection, if found cracks in the belt or the belt is exposed to other unusual circumstances, please immediately stop using the machine and...

  • Page 18: Maintenance Schedule

    MAINTENANCE Schedule Area Week Month Quarter Year Notes Exterior Clean. Screws Inspect for looseness and secure if necessary. Testing To confirm that the machine is working properly Cushions Wipe with a damp cloth. Belt Check for damage or wear. If so, need for replacement.

  • Page 19: Maintenance Task List

    MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.

  • Page 20: Maintenance One-Year Maintenance Log

    MAINTENANCE One-Year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...

  • Page 21: Consignes De Sécurité Importantes

    6. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
