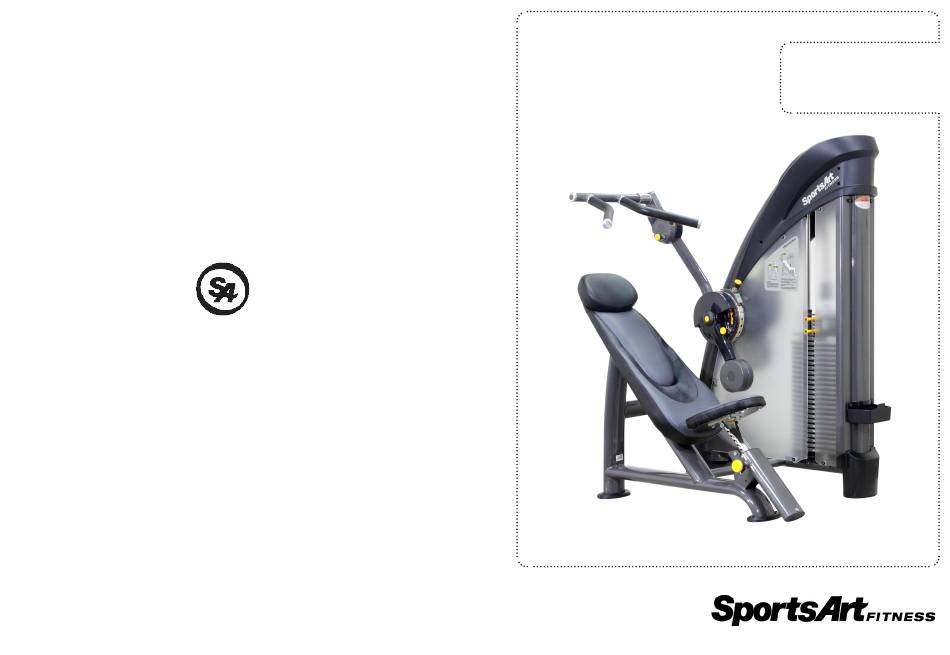

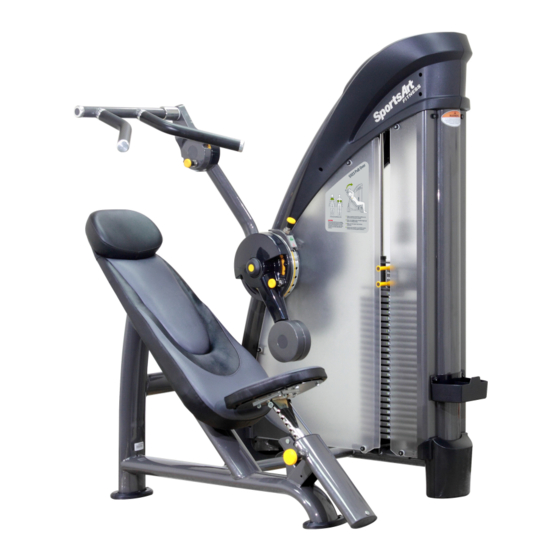

- Page 1 S923 Pull Over Owner’s Manual Sports Art Industrial Co., Ltd. TUV-CERT ISO 9001/9002/14000 Certified Quality Products 2013.08.14...
-
Page 2: Table Of Contents
S923 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Install the Weight Stack Covers ..........STEP 2 Install the Storage Tray Holder ..........STEP 3 Seat Adjustment Instructions ............ -
Page 3: Introduction
1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the S923 Pull Over machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual. -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS This product was designed and built for optimum safety. However certain precautions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual. •... -
Page 5: List Of Parts
3. LIST OF PARTS Assembly Parts No. Name Qty. No. Name Qty. A1 Main frame A4 118 Oval Foot Cover A A2 Weight Stack Front Cover 1 A5 118 Oval Foot Cover B A3 Weight Stack Back Cover 1 A6 Storage Tray... - Page 6 Components in the Hardware Kit Name Qty. Specification Notes Push revits L-shaped Allen wrench Double open-end wrench 8*17 Components on the Product Name Specification Notes Plastic round head hex socket M6*P1.0*L20 screws...
-
Page 7: Assemble The Product
4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product. -
Page 8: Step 2 Install The Storage Tray Holder
STEP 2 Install the Storage Tray Holder Please follow the instructions (a) through (b) to install the storage tray (a). Locate the position where the storage tray (A6) attaches to the main frame (A1), then remove the screws (20) from the main frame. (b). -
Page 9: Step 3 Seat Adjustment Instructions
STEP 3 Seat Adjustment Instructions * When adjusting the seat height, pull the seat lever to adjusted to the desired height and then release the seat lever. * If the machine has not been used for a long time or the seat is adjusting slowly. -
Page 10: Step 4 Belt Tension Adjustment Instructions
STEP 4 Belt Tension Adjustment Instructions 1. After the installation and the final positioning of the machine, make the appropriate adjustments to ensure that the machine is working. 2. If the belt is too tight or too loose, first loosen nut A as shown then adjust nut B. -
Page 11: Step 5 Minor Weight Stack Instructions
STEP 5 Minor Weight Stack Instructions To adjust the minor weight stack, insert the upper pin to add 3.5Lbs/1.5kgs or the lower pin to add 6.5Lbs/3kgs. When the minor weights are not in use, pull the pin to release the weight. -
Page 12: Operate The Product
5. OPERATE THE PRODUCT OPERATION Operate the Product (a). The rotator adjusting pin is used for adjusting the rotator to the proper initial position for the user. Shown in area (A). (b). The plate adjusting pin is used for user to adjust the plate to the proper position. -
Page 13: Operation Operate The Product
OPERATION Operate the Product (c). To adjust the user’s movement range, please adjust the rotation positioning pin in area (C) -
Page 14: Maintenance
6. MAINTENANCE This section covers maintenance topics and includes a maintenance schedule, task list, and log. MAINTENANCE Machine Maintenance 1. Please clean and lubricate the guide rod once a week. (a). Use a clean, lint-free towel to apply the lubricant onto the guide rods. (b). - Page 15 MAINTENANCE Machine Maintenance IMPORTANT NOTE 1. Once the machine belt reaches the warranty period, it is recommended to replace the belt. 2. Belt safety check, after a year in use, check belt weekly. Depend on the use conditions, increase the frequency of inspections. (As shown: (A) a belt, (B) the belt extension) During inspection, if found cracks in the belt or the belt is exposed to other unusual circumstances, please immediately stop using the machine and...
-
Page 16: Maintenance Schedule
MAINTENANCE Schedule Area Week Month Quarter Year Notes Exterior Clean. Screws Inspect for looseness and secure if necessary. Testing To confirm that the machine is working properly Cushions Wipe with a damp cloth. Belt Check for damage or wear. If so, need for replacement. -
Page 17: Maintenance Task List
MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1. -
Page 18: Maintenance One-Year Maintenance Log
MAINTENANCE One-Year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28... -
Page 19: Consignes De Sécurité Importantes
7. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
