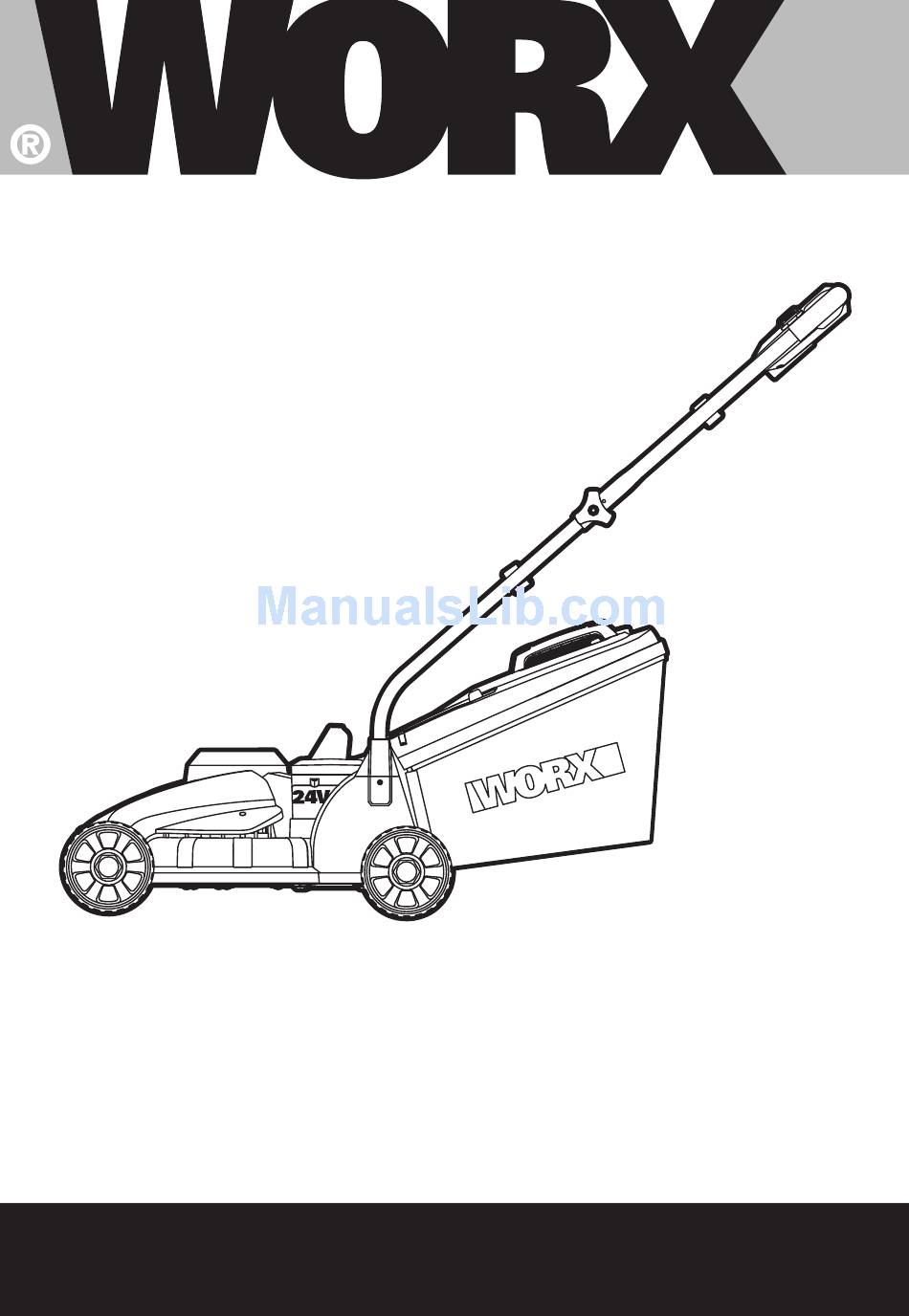

- Page 1 SAFETY AND OPERATING MANUAL Cordless Lawn Mower WG773E...
-
Page 2: General Power Tool Safety Warnings
Whenever leaving the machine machine; unattended, Before using, always visually inspect to – Before clearing a blockage, see that the blades, blade bolts and cutter – Before checking, cleaning or working on assembly are not worn or damaged. Cordless Lawn Mower WG773E... -
Page 3: Maintenance And Storage
40.5°C. This is important as it can prevent serious damage to the battery pack. ADDITIONAL SAFETY 18. Charge only battery pack of the same model provided by WORX and of models INSTRUCTIONS FOR YOUR recommended by WORX. BATTERY ChARGER Before charging, read the instructions. -
Page 4: Safety Warnings For Battery Pack
When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use Cordless Lawn Mower WG773E... - Page 5 It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Do not burn Cordless Lawn Mower WG773E...
- Page 6 Cordless Lawn Mower WG773E...
- Page 7 SAfeTy flAP 10. bATTeRy PACk* 11. MoToR CoveR 12. ChARGeR* (See fig. A) 13. blAde bolT (See fig. M1) 14. blAde (See fig. M1) * Not all the accessories illustrated or described are included in standard delivery. Cordless Lawn Mower WG773E...
-
Page 8: Technical Data
TEChNICAL DATA Type WG773e (7-designation of machinery, representative of battery powered lawn Mower) Voltage Cutting diameter 33cm Cutting height 20-60mm Cutting height positions 3 positions Grass collection capacity Battery type Lead acid Battery model WA3216 Charging time 5-7hrs Charger model... -
Page 9: Intended Use
Do not operate a damaged charger. Replace damaged cords or charger immediately at an authorized WORX service depot. Always charge the mower in a dry area protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. -
Page 10: Battery Care
NoTe: Ensure the bolts are fully inserted through the handles before fitting the handle knobs. Attach the cable clips (3) provided, to the upper and lower handle. Insert the cable into the clips ensuring there is enough cable slack .(See Fig. B3) Cordless Lawn Mower WG773E... - Page 11 Step 3. Push down the back of the handle. (See Fig. C2) Step 4. Clip the plastic clips over the metal frame. (See Fig. C3) WARNING: don’t fit the handle in reversed direction. fit the handle as shown in fig. Cordless Lawn Mower WG773E...
- Page 12 Hold the grass bag, lift the safety flap (9) and hold up. Remove grass bag (5). WARNING: Always check the safety flap can close the discharge outlet tightly before using. Never lift the safety flap (9) when the lawn mower is being used without fitted grass bag. Cordless Lawn Mower WG773E...
-
Page 13: Fitting Battery
Insert safety key into the housing of the switch box. Slide the key to the right and hold in position. Pull the lever bar towards the handle and the mower will start. Release the safety key. SToPPING Release the switch lever. Cordless Lawn Mower WG773E... - Page 14 Wait until all machine components have completely stopped before touching them. Before your first cut, adjust the mower cutting depth to the desired position. The lawnmower can be set to 3 Cordless Lawn Mower WG773E...
-
Page 15: Maintenance
Do not operate mower until a service material from both ends. check has been made. AlWAyS ReleASe SWITCh leveR To TURN MoWeR “off” ANd ReMove SAfeTy key WheN leAvING IT UNATTeNded eveN foR A ShoRT PeRIod of TIMe. Cordless Lawn Mower WG773E... - Page 16 Hold the blade (14) and unscrew the blade bolt (13) counter-clockwise using a spanner wrench, and then remove blade. To re-assemble, position the blade (14) with the cutting edges towards the ground. Then securely tighten the blade bolt (13). Cordless Lawn Mower WG773E...
- Page 17 Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, release the Handle knobs, and rotate or fold the upper handle. Cordless Lawn Mower WG773E...
- Page 20 Copyright © 2014, Positec. All Rights Reserved. 2CLM03GPK11001A0...
