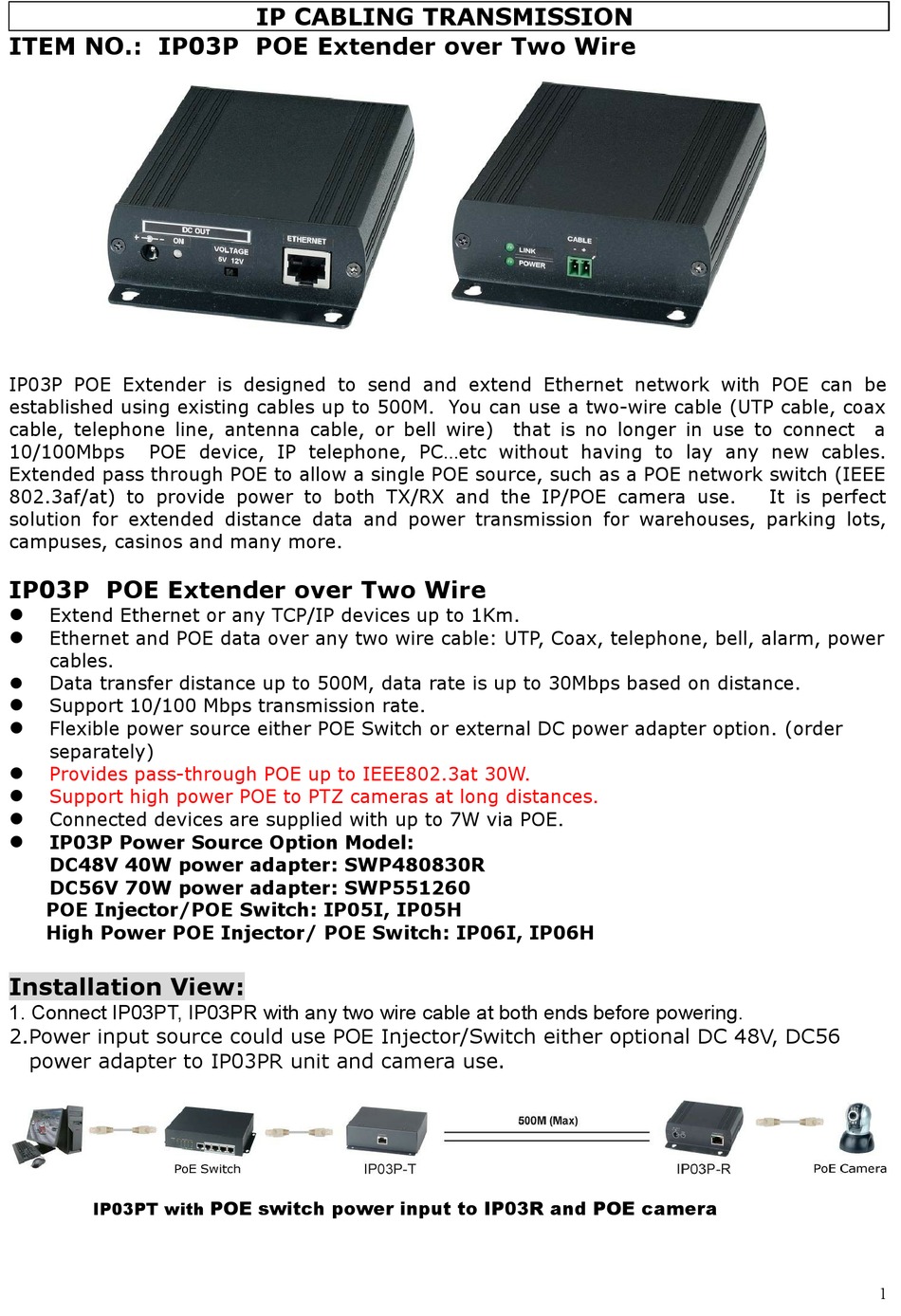

ITEM NO.: IP03P POE Extender over Two Wire
IP03P POE Extender is designed to send and extend Ethernet network with POE can be
established using existing cables up to 500M. You can use a two-wire cable (UTP cable, coax
cable, telephone line, antenna cable, or bell wire)
10/100Mbps POE device, IP telephone, PC...etc without having to lay any new cables.
Extended pass through POE to allow a single POE source, such as a POE network switch (IEEE
802.3af/at) to provide power to both TX/RX and the IP/POE camera use.
solution for extended distance data and power transmission for warehouses, parking lots,
campuses, casinos and many more.
IP03P POE Extender over Two Wire
 Extend Ethernet or any TCP/IP devices up to 1Km.
Ethernet and POE data over any two wire cable: UTP, Coax, telephone, bell, alarm, power

cables.
Data transfer distance up to 500M, data rate is up to 30Mbps based on distance.

 Support 10/100 Mbps transmission rate.
 Flexible power source either POE Switch or external DC power adapter option. (order
separately)
 Provides pass-through POE up to IEEE802.3at 30W.
 Support high power POE to PTZ cameras at long distances.
 Connected devices are supplied with up to 7W via POE.
 IP03P Power Source Option Model:
DC48V 40W power adapter: SWP480830R
DC56V 70W power adapter: SWP551260
POE Injector/POE Switch: IP05I, IP05H
High Power POE Injector/ POE Switch: IP06I, IP06H
Installation View:
1. Connect IP03PT, IP03PR with any two wire cable at both ends before powering.
2.Power input source could use POE Injector/Switch either optional DC 48V, DC56
power adapter to IP03PR unit and camera use.
IP03PT with
IP CABLING TRANSMISSION
POE switch power input to IP03R and POE camera
that is no longer in use to connect a
It is perfect
