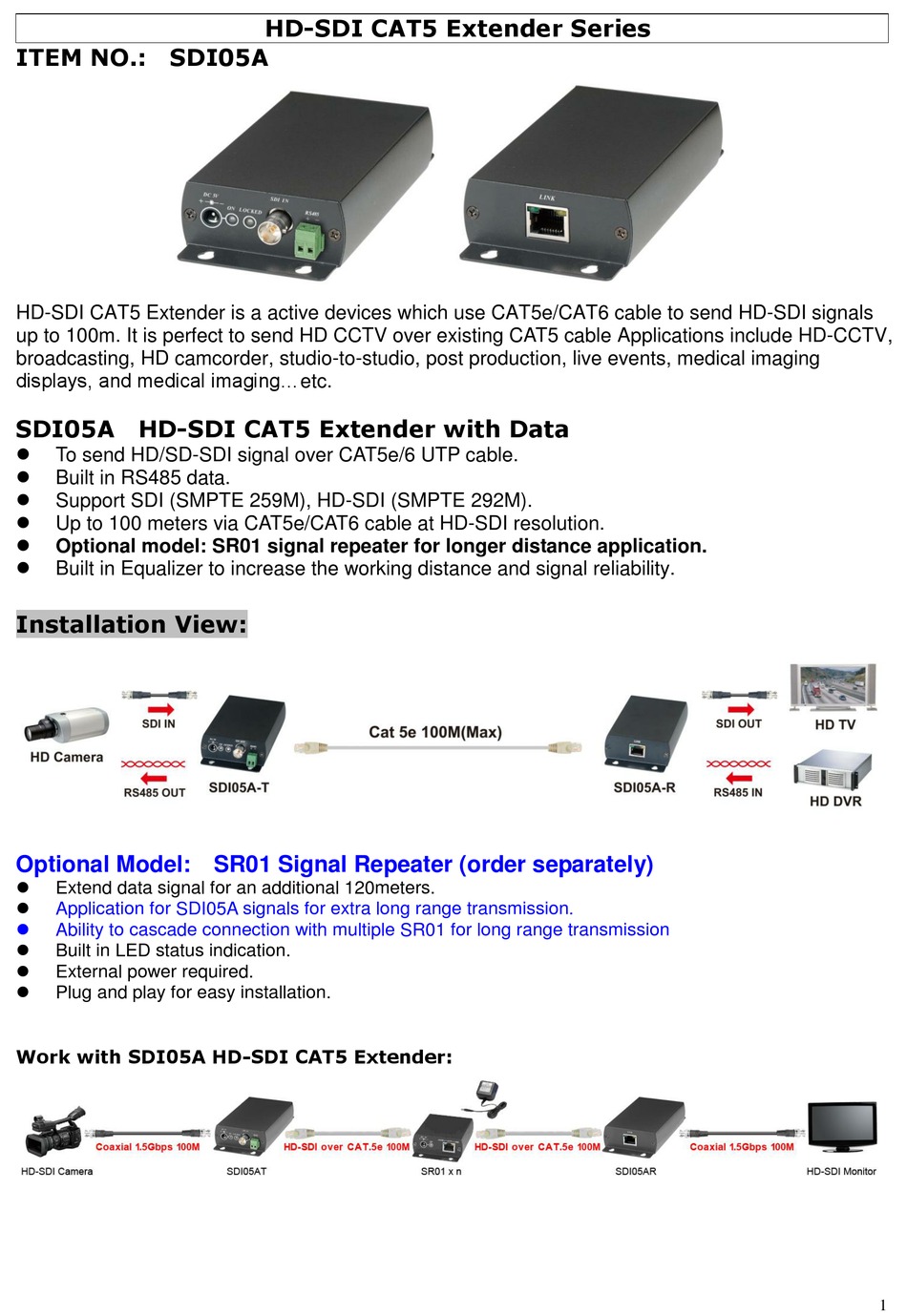

Globalmediapro HD-SDI CAT5 Series Manual

ITEM NO.: SDI05A
HD-SDI CAT5 Extender is a active devices which use CAT5e/CAT6 cable to send HD-SDI signals
up to 100m. It is perfect to send HD CCTV over existing CAT5 cable Applications include HD-CCTV,
broadcasting, HD camcorder, studio-to-studio, post production, live events, medical imaging
displays, and medical imaging...etc.
SDI05A HD-SDI CAT5 Extender with Data

To send HD/SD-SDI signal over CAT5e/6 UTP cable.

Built in RS485 data.

Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M).

Up to 100 meters via CAT5e/CAT6 cable at HD-SDI resolution.

Optional model: SR01 signal repeater for longer distance application.

Built in Equalizer to increase the working distance and signal reliability.
Installation View:

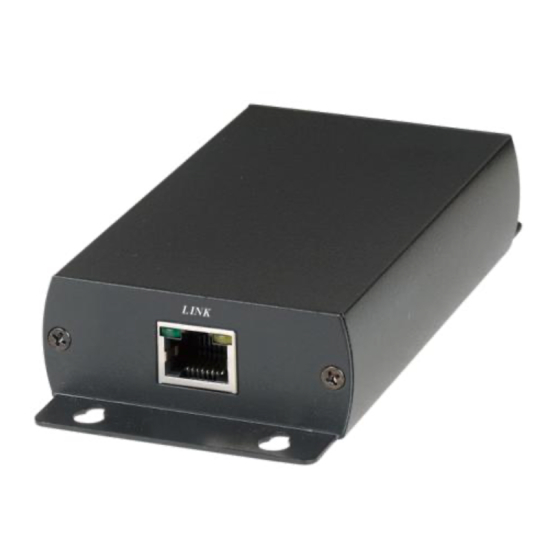

Optional Model: SR01 Signal Repeater (order separately)

Extend data signal for an additional 120meters.

Application for SDI05A signals for extra long range transmission.

Ability to cascade connection with multiple SR01 for long range transmission

Built in LED status indication.

External power required.

Plug and play for easy installation.
Work with SDI05A HD-SDI CAT5 Extender:
HD-SDI CAT5 Extender Series
1
