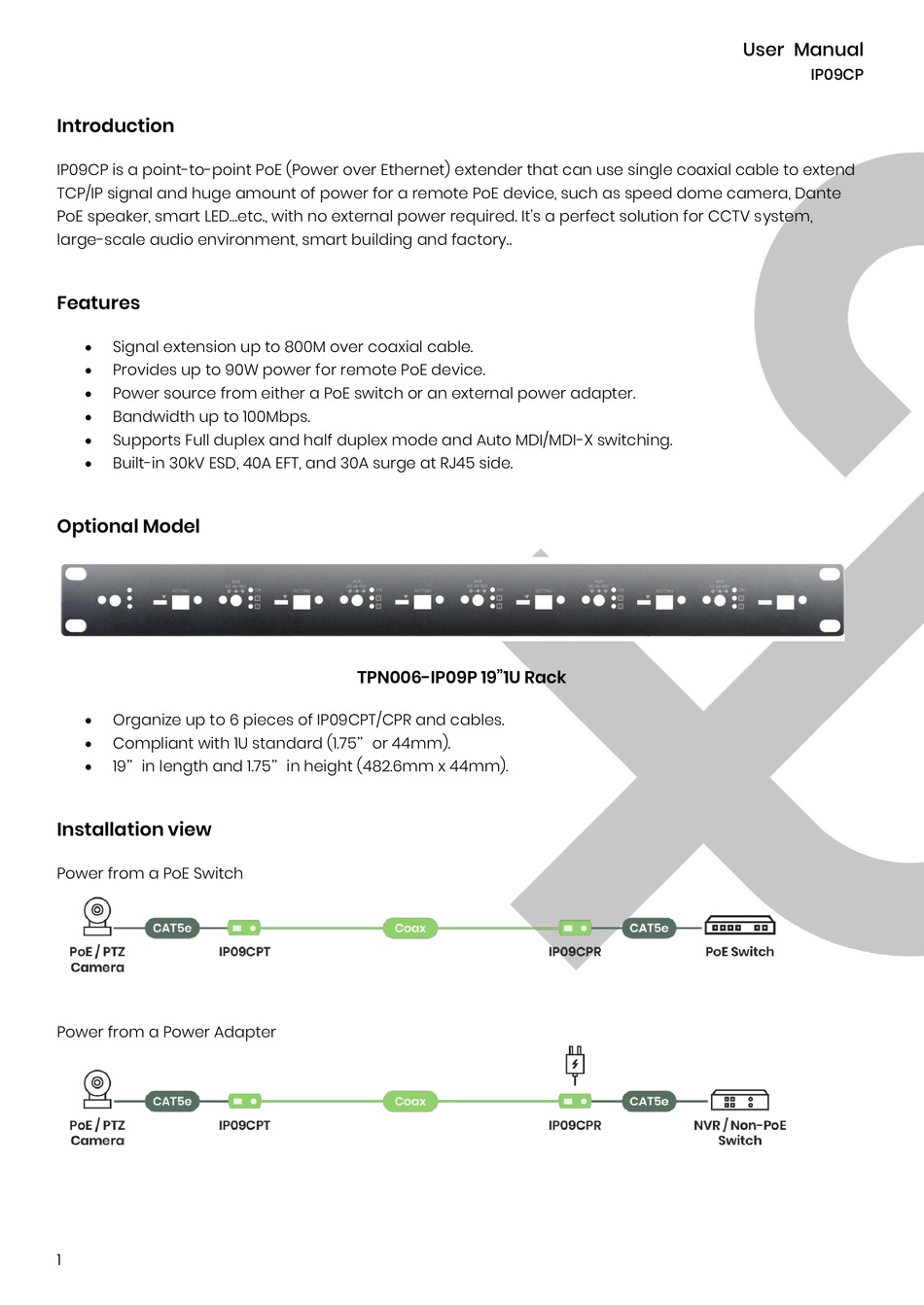

Introduction
IP09CP is a point-to-point PoE (Power over Ethernet) extender that can use single coaxial cable to extend
TCP/IP signal and huge amount of power for a remote PoE device, such as speed dome camera, Dante
PoE speaker, smart LED...etc., with no external power required. It's a perfect solution for CCTV system,
large-scale audio environment, smart building and factory..
Features
Signal extension up to 800M over coaxial cable.
Provides up to 90W power for remote PoE device.
Power source from either a PoE switch or an external power adapter.
Bandwidth up to 100Mbps.
Supports Full duplex and half duplex mode and Auto MDI/MDI-X switching.
Built-in 30kV ESD, 40A EFT, and 30A surge at RJ45 side.
Optional Model
Organize up to 6 pieces of IP09CPT/CPR and cables.
Compliant with 1U standard (1.75"or 44mm).
19"in length and 1.75"in height (482.6mm x 44mm).
Installation view
Power from a PoE Switch
Power from a Power Adapter
1
TPN006-IP09P 19"1U Rack
User Manual
IP09CP

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP09CP and is the answer not in the manual?

Questions and answers

Related Manuals for Globalmediapro IP09CP

Summary of Contents for Globalmediapro IP09CP

  • Page 1 IP09CP Introduction IP09CP is a point-to-point PoE (Power over Ethernet) extender that can use single coaxial cable to extend TCP/IP signal and huge amount of power for a remote PoE device, such as speed dome camera, Dante PoE speaker, smart LED…etc., with no external power required. It’s a perfect solution for CCTV system, large-scale audio environment, smart building and factory..

  • Page 2: Panel Review

    User Manual IP09CP Panel Review Interface Function Power Jack To connect with a DC48 ~ 56V adapter Power LED Indication To indicate the power status (Refer to Description 1) □ 1 Status : Port 1 mode indication (Refer to Description 3) Status Indication □...
  • Page 3 User Manual IP09CP Status Indication: □ 1 Mode Status: Port Blue ON Blue OFF LED Blinking Long Distance Unlinked or Ethernet 100Base-T1 □ Port Mode Status: Blue ON Blue OFF LED Blinking Long Distance Unlinked or Ethernet 100Base-T1 RJ45 Pinout Data 1.
  • Page 4 User Manual IP09CP Advanced Mode: Please refer to the chart below to manually set up the Link Speed, and Modes Function ↑ OFF ↓ ON Link Speed 10Mbps 100Mbps Ethernet Disable Enable 100BASE-T1 Disable Enable Long Distance Disable Enable Auto-Negotiation Priority：...
  • Page 5 User Manual IP09CP 3. Applying RG6U coaxial cable and power from 56V Power Adapter Input Power Distance Output Power 110W (56V/1.96A) 100M 100W (56V/1.79A) 200M 86W (56V/1.54A) 300M 88W (56V/1.59A) 400M 61W (56V/1.09A) 500M 47W (56V/0.84A) 600M 39W (56V/0.69A) 700M 37W (56V/0.67A)

  • Page 6: Package Includes

    User Manual IP09CP 6. Applying RG59 coaxial cable and power from 48V Power Adapter Input Power Distance Output Power 96W (48V/2.00A) 100M 65W (48V/x1.37A) 200M 39W (48V/0.81A) 300M 28W (48V/0.58A) 400M 21W (48V/0.44A) 500M 16W (48V/0.33A) 600M 14W (48V/0.29A) 700M 12W (48V/0.26A)

  • Page 7: Specification

    User Manual IP09CP Specification: ITEM IP09CPR IP09CPT Support IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3bw 100BASE-T1 Ethernet IEEE 802.3 N-Way Auto-Negotiation Compliance IEEE 802.3x Full Duplex Operation and Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus...
