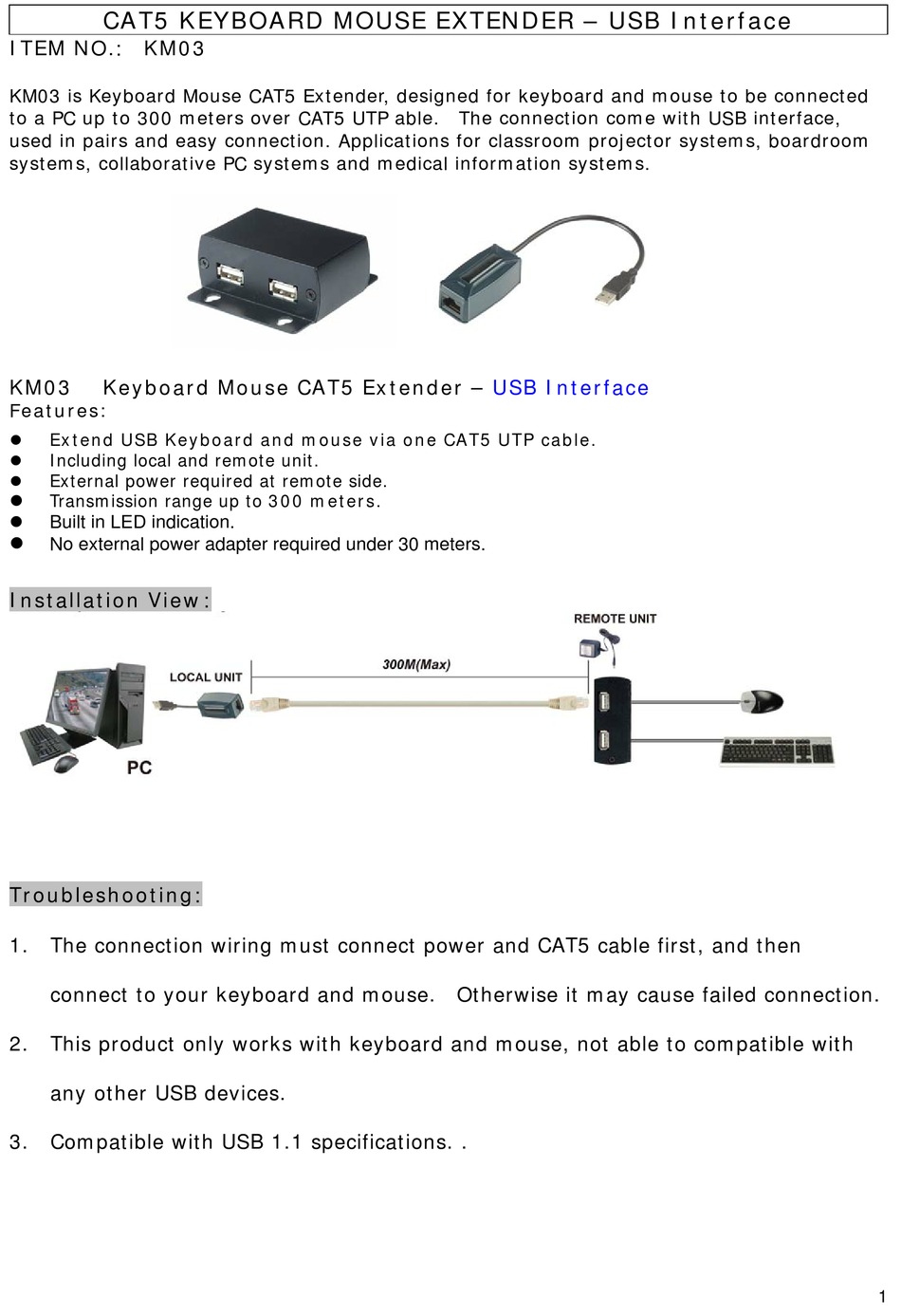

Globalmediapro KM03 Quick Start Manual

CAT5 KEYBOARD MOUSE EXTENDER – USB Interface
ITEM NO.: KM03
KM03 is Keyboard Mouse CAT5 Extender, designed for keyboard and mouse to be connected
to a PC up to 300 meters over CAT5 UTP able. The connection come with USB interface,
used in pairs and easy connection. Applications for classroom projector systems, boardroom
systems, collaborative PC systems and medical information systems.
KM03 Keyboard Mouse CAT5 Extender –
Features:
Extend USB Keyboard and mouse via one CAT5 UTP cable.

Including local and remote unit.

External power required at remote side.

Transmission range up to 300 meters.


Built in LED indication.

No external power adapter required under 30 meters.
Installation View:
Troubleshooting:
1. The connection wiring must connect power and CAT5 cable first, and then
connect to your keyboard and mouse. Otherwise it may cause failed connection.
2. This product only works with keyboard and mouse, not able to compatible with
any other USB devices.
3. Compatible with USB 1.1 specifications. .
USB Interface
1
