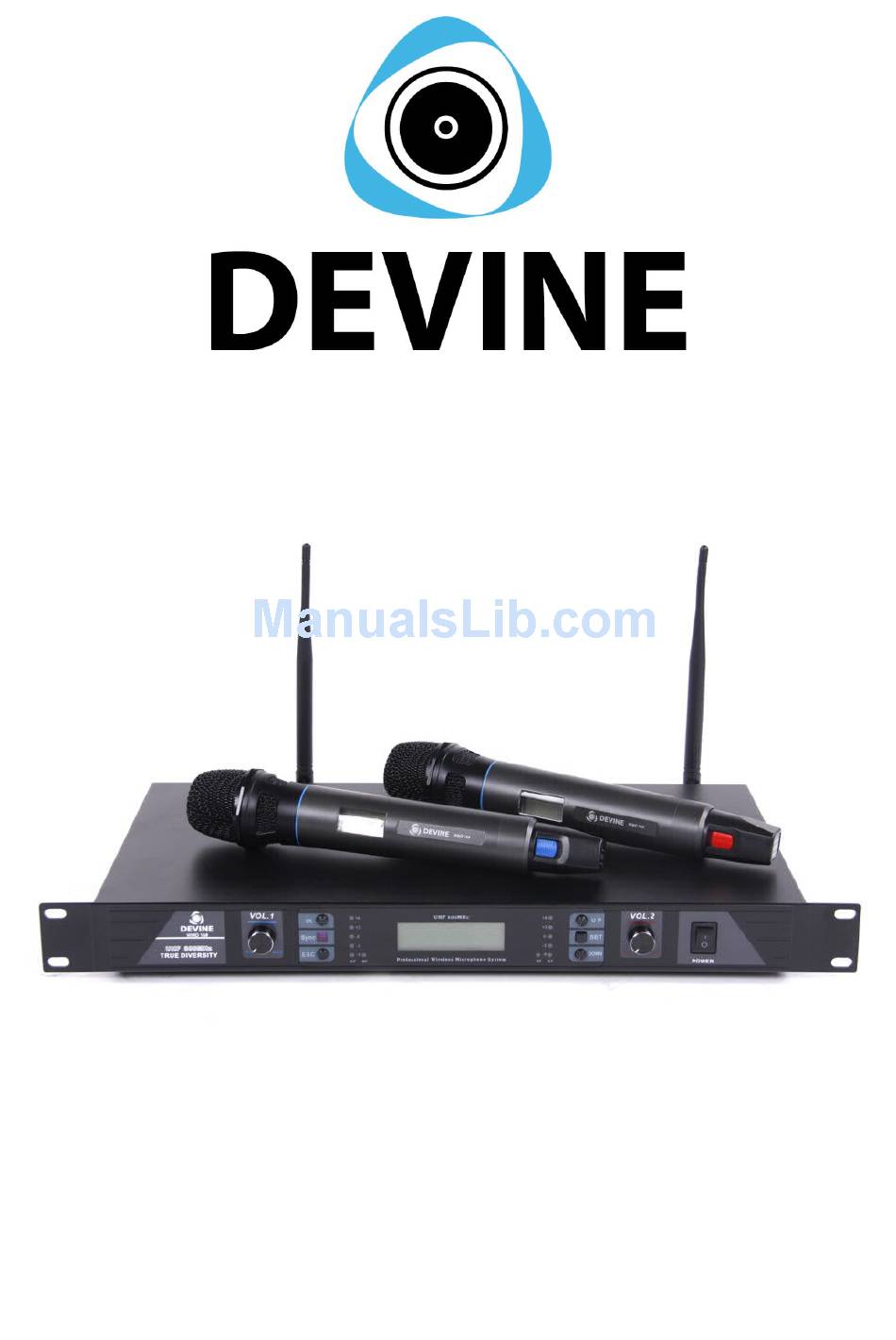

WMD 168 (614 – 638 MHz)
Dual wireless microphone system
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMD 168 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Devine WMD 168

Summary of Contents for Devine WMD 168

  • Page 1 WMD 168 (614 – 638 MHz) Dual wireless microphone system User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine does not take responsibility for any damage or injury caused by improper use.
  • Page 4 - Always mount the fuse cover back to the fuse compartiment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV...

  • Page 5: Box Contents

    Box contents Box contents: 2x wireless microphone 1x 19 inch rack mountable receiver 2x screw-on type antenna for receiver 1x power supply 1x user manual 1x mono 6.35mm jack audiocable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 6: Preparing The System

    Preparing the system Inserting batteries This system uses AA 1.5V batteries for the handheld microphones. Each handheld microphone uses 2 AA batteries. Always use good quality batteries, as the battery life may vary. This may result in an operation lifespan, varying from 8 to 20 hours. To access the battery compartiment, twist the bottom half of the microphone (the part below the blue ring).
  • Page 7 The receiver determines which microphone is used on which frequency band and on which specific frequency. To sync a wireless microphone with the receiver, perform the following actions: - Press SET on the receiver, “M” will start blinking in the display, next to frequency 1. - Set the preferred frequency for microphone 1 (Blue) with the up and down buttons, on the right of the display - Press SET again, “M”...
  • Page 8 Plug the power supply cable into the provided connector-chassis at the rear of the unit. Check the power supply you wish to plug the unit into, to make sure the outlet has a proper voltage. Do not turn the power on or connect any cable if you suspect that the voltage is incorrect, or if the cable shows defects.

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Microphones do not turn on Battery low or not inserted Replace the batteries with new (correctly) ones. Check the polarity so the battery can be inserted in the correct way. Microphone not turned on Turn the microphone on No sound from microphone Microphones do not send any Check microphone/receiver...
  • Page 10 Signal loss Move closer to the receiver and avoid interruptance of the signal by walking behind walls, large structures or large groups of persons (for example, a filled dance floor). Display unable to change by using Locked display (shows 'LOCK' on Hold “ESC”...

  • Page 11: Technical Specifications

    Technical specifications Technical specifications microphone: - Frequency: 614 ~ 638 MHz - channels: 276 (2 channels, choose from 138 frequencies per microphone) - oscillation-mode: PLL - frequency stability: +/- 10 ppm - modulation mode: FM - radio frequency power: 10 ~ 30 mW (variable) - audio frequency response: 40 ~ 18.000 Hz - distortion: <...
