Devine WMD 168 User Manual

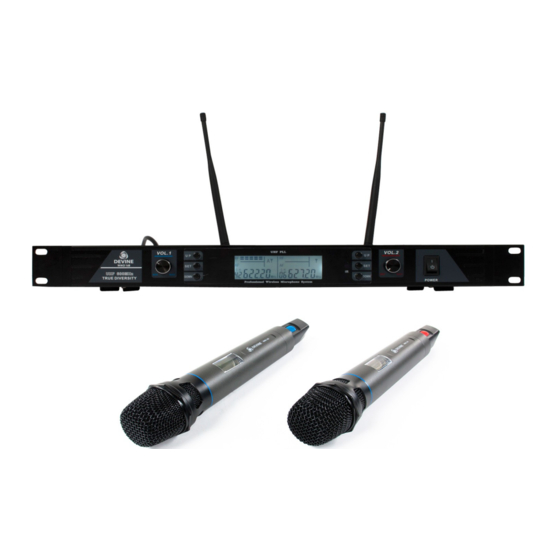

Dual wireless microphone system (614 – 638 mhz)
Hide thumbs Also See for WMD 168:

Advertisement

Quick Links

Download this manual
WMD 168 (614 – 638 MHz)
Dual wireless microphone system
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 3.0
Creation date + author initials: 27-03-2014 RV Revision date + author initials: 08-09-2015 RV

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMD 168 and is the answer not in the manual?

Questions and answers

Related Manuals for Devine WMD 168

Summary of Contents for Devine WMD 168

  • Page 1 WMD 168 (614 – 638 MHz) Dual wireless microphone system User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 08-09-2015 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Only use this device indoors, avoid contact with water, moisture and other liquids. Do not place items filled with liquids on top of the unit. - Avoid nearby flames or heat sources, do not place this device near flammable liquids, gas or flammable items.
  • Page 4 Fuses: - The main fuse of this device can be found on the rear of the device, next to the power inlet. - Only replace the fuse for a new one of the same type and rating! Do not use a fuse with a higher or lower rating.
  • Page 5 Contact: Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation) Any information and illustrations shown in this user manual are subject to change without further notice.

  • Page 6: Box Contents

    Box contents Box contents: 2x wireless microphone 1x 19 inch rack mountable receiver 2x BNC type antenna for receiver 1x power cable to Schuko 1x power cable to UK plug 1x user manual 1x mono 6.35mm TS jack audio cable (mixed out) 2x set of 2 AA batteries (two batteries for each microphone) Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply.

  • Page 7: Preparing The System

    Always use quality batteries, as the lifespan may vary. This may result in an operation lifespan, varying from 8 to 20 hours. The included batteries are solely supplied for testing purposes. Devine recommends to replace these with batteries from brands as Duracell when using the microphones for performance.
  • Page 8 19 inch rack, ensure that the mains connection of the entire rack can be shut down instantly if necessary. If you wish to shut down just the WMD 168 system, install a proper power management device with bipolar contacts which can shut down the power supply to your WMD 168 system.
  • Page 9 On the receiver, you are able to set a specific channel and matching frequency for each channel. Use the UP and DOWN buttons to select the frequency and channel of your choice. When the desired channel and matching frequency are selected, you are able to send these settings to the wireless microphone through an IR signal.
  • Page 10 On the microphone itself, you will find the set channel and frequency, as well as a battery indicator. So before every show, you are able to check if all microphones have sufficient battery power to last the entire event. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 08-09-2015 RV...

  • Page 11: Technical Specifications

    Technical specifications Technical specifications microphone: - Frequency: 614 ~ 638 MHz - channels: 120 (2 channels, choose from 60 frequencies per microphone) - oscillation-mode: PLL - frequency stability: +/- 10 ppm - modulation mode: FM - radio frequency power: 10 ~ 30 mW (variable) - audio frequency response: 40 ~ 18.000 Hz - distortion: <...
