WMD-50 Solo / Duo
Wireless Microphone System
User Manual
The information included in this user manual is subject to change at any time and without notification:
Version:
Date and author initials: 04-08-2020 RV
Revision and author initials: -
1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMD-50 Solo and is the answer not in the manual?

Questions and answers

Summary of Contents for Devine WMD-50 Solo

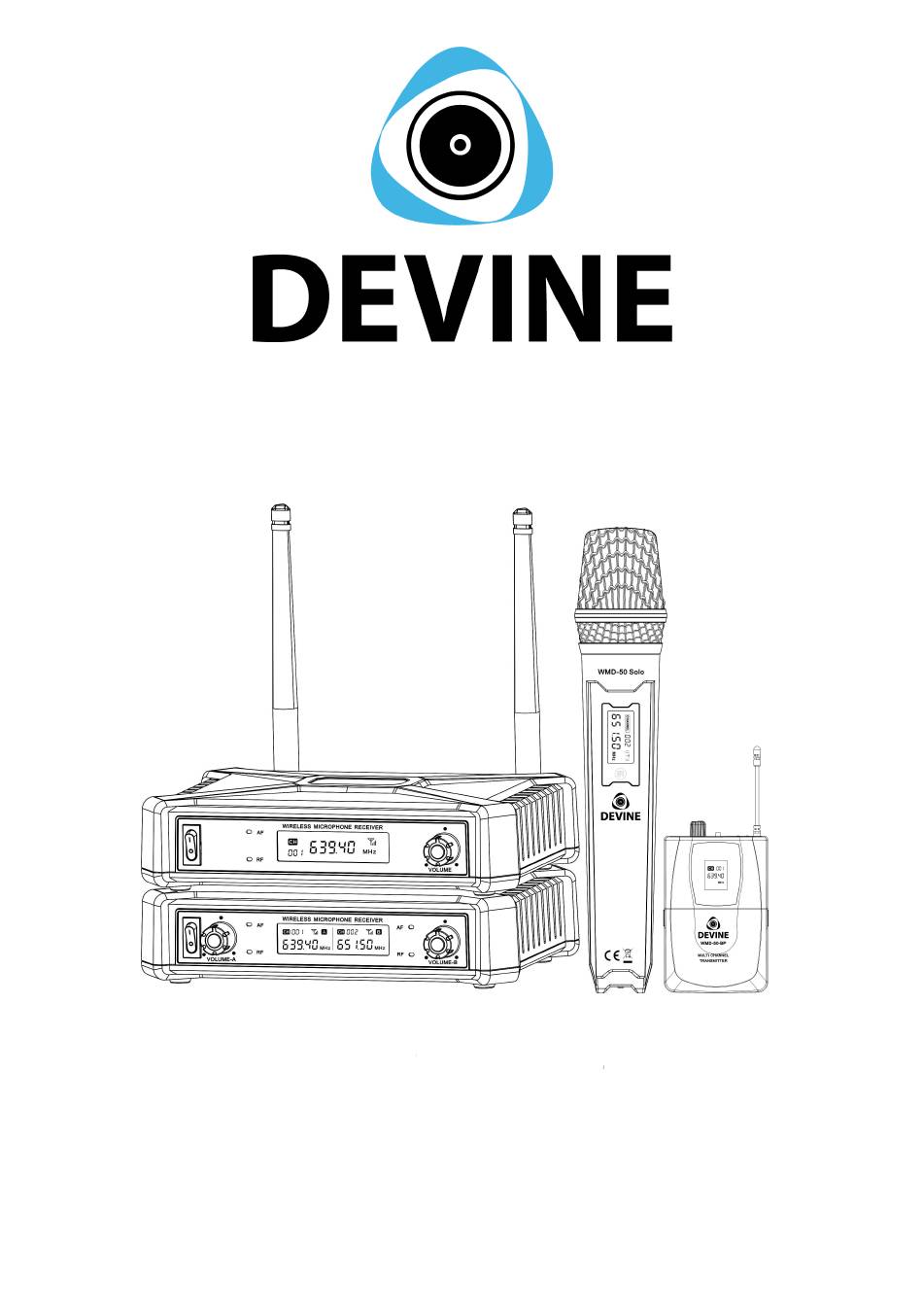

  • Page 1 WMD-50 Solo / Duo Wireless Microphone System User Manual The information included in this user manual is subject to change at any time and without notification: Version: Date and author initials: 04-08-2020 RV Revision and author initials: -...
  • Page 2 Introduction Thank you for purchasing the Devine WMD-50 Solo/Duo system. Before unpacking the box and included components, we recommend reading this user manual thoroughly to ensure that you are completely familiar with all of the functions this product has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.
  • Page 3: Safety Instructions

    WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! Safety Instructions Every person involved with the installation, operation and maintenance of this device must: - Be qualified. - Be skilled. - Have read the instructions included in this user manual. - Be sure that neither the device nor the included accessories are damaged.
  • Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 The Devine WMD-50 Solo/Duo system operates using the SRD frequency band (863 – 865 MHz) and can therefore be used freely in the EU.

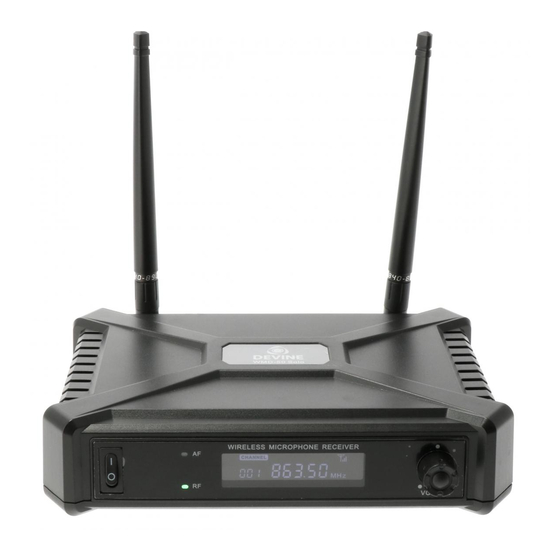

  • Page 6 Overview & Use Receiver: ON/OFF switch Microphone A volume control AF signal indicator A (audio level strength) RF signal indicator A (transmission signal strength) LCD display with channel selection indicator, frequency etc. AF signal indicator B (audio level strength) RF signal indicator B (transmission signal strength) Microphone B volume control Antenna microphone A Antenna microphone B...
  • Page 7 WMD-24 Solo / Duo to the audio installation. The WMD-50 Solo and Duo both come fitted with two independent 3-pin XLR outputs that can be used to send the separate signals of both microphones. This offers a huge advantage, since the sound of both microphones can be individually fine-tuned and different effects (like echo) can be added to each microphone signal using your mixer.
  • Page 8 – Holding the microphone near a speaker. The sound coming from the speaker is re-amplified by the microphone, resulting in a feedback loop (often a loud, piercing noise) Devine cannot be held responsible for any damage caused to any audio system due to the use of incorrect microphone technique.
  • Page 9 Wireless Microphone Trouble Shooting If you happen to encounter any problems while using your wireless microphone system, it’s recommended that this trouble shooting section is checked to see if a solution can be found. If none of the suggestions included below solve your particular problem, please contact your local retailer for further advice. This trouble shooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution.
  • Page 10 Problem Common Cause Solution Interference on the same It is always possible that someone else in frequency the vicinity is working on the same microphone frequency with a similar system. This can work to your disadvantage in the form of signal loss or interference. Try switching to a different microphone signal or try to improve the ‘line of sight’...
  • Page 11: Specifications

    Specifications – UHF compact wireless microphone system – 1x / 2x wireless handheld microphones with 1x compact receiver – operates using the frequency band that can be used freely in the EU (863 – 865 MHz) – fixed microphone frequencies, no synchronisation required –...
  • Page 12 EC Declaration of Conformity Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands We declare under our sole responsibility that the following products Article: Product name: Devine WMD-50 Duo Wireless microphone system (863 + 864 MHz) with 2 x handheld microphones.
