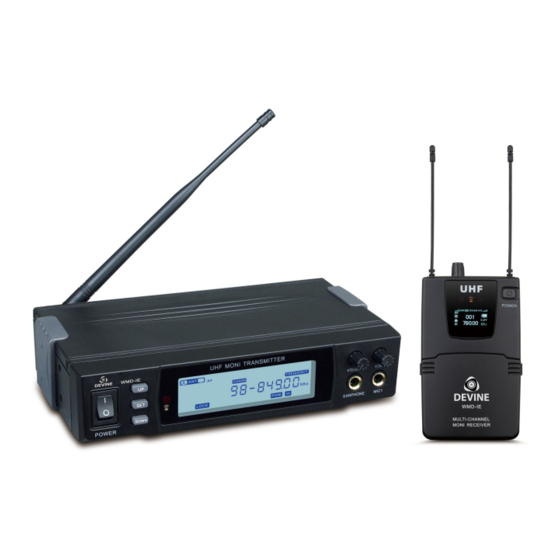

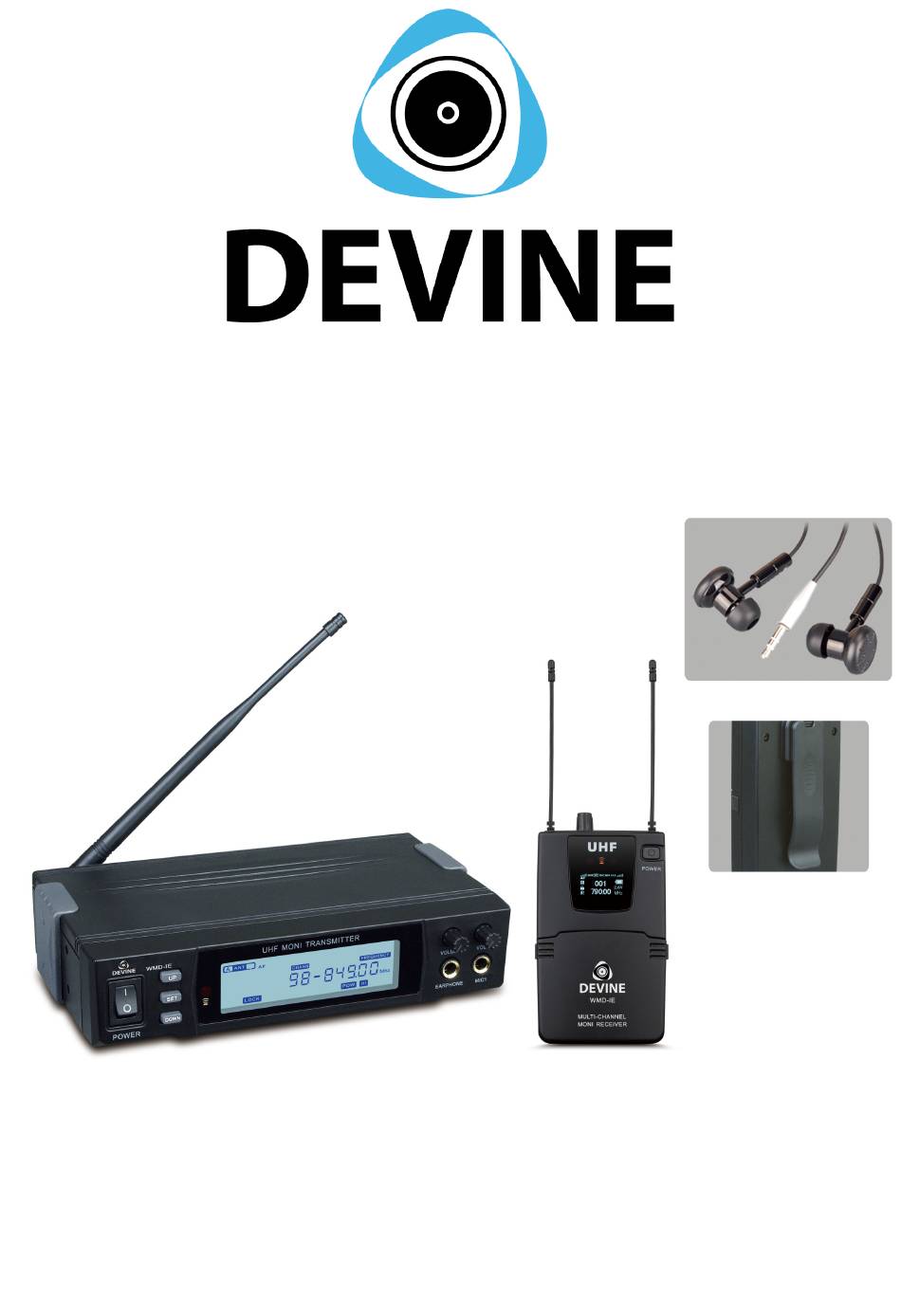

- Page 1 WMD-IE Wireless In-Ear Monitoring System User Manual The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date and author initials: 04-08-2020 RV Revision date and author initials : -...
- Page 2 Introduction Thank you for purchasing the Devine WMD-IE in-ear monitoring system. Before unpacking the included components, we recommend reading this user manual thoroughly to ensure that you are completely familiar with all of the functions this product has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.
-
Page 3: Safety Instructions
WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! Safety Instructions Every person involved with the installation, operation and maintenance of this device must: - Be qualified. - Be skilled. - Have read the instructions included in this user manual. - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Battery safety: WARNING! - If the battery is replaced incorrectly, this may cause the battery to explode. - Only replace a battery with the same battery type. - Never expose batteries to intense heat, including sunlight, open flames, etc. - Never store batteries in a hot, high temperature environment. This may cause the battery to explode and/or result in the leakage of flammable liquids or gasses.
- Page 6 The Devine WMD-IE system operates using the ‘duplex gap’ frequency range: 823 to 832 MHz. This frequency band can be used freely in many EU countries. At the time of writing, a license is required to...
- Page 7 Please note that the legal use of a frequency band does not guarantee interference free performance. It is always the case that any nearby equipment that uses the same or similar frequency can cause signal interference. The information included in the overview above is correct at the time of writing. Due to the continuous regulatory changes made by different countries as a result of constant wireless frequency range reforms, it may be the case that the information included above is incorrect at the time of reading.
- Page 8 Overview & Use Transmitter 1. ON/OFF switch 2. DOWN button 3. Function button 4. UP button 5. IR synchronisation point 6. Display 7. Earphone volume control 8. Earphone monitoring output, 6.35 mm TRS jack 9. Input 1: 6.35 mm TS jack 10.
-
Page 9: Using The System
In the worst case, this can cause serious problems with the performance of the WMD-IE in-ear monitoring system. - Page 10 Display Symbol Explanation The displays of both the transmitter and receiver use the following terms and/or symbols: Transmitter Meaning Receiver Meaning Audio signal strength (more or Signal level per antenna less bars are filled depending on signal strength) Used antenna (the system SET mode: continuously switches GR: Available frequency...
- Page 11 When the transmitter indicates , then it is prepared for synchronisation. Press the SET button of the transmitter to start the synchronisation process and hold the receiver near the IR synchronisation point. Ideally, the IR sync point of both the transmitter and receiver are able to achieve an uninterrupted connection and establish a data link so that frequency and channel information is transferred.
- Page 12 Wireless System Trouble Shooting If you happen to encounter any problems while using your wireless system, it’s recommended that this trouble shooting section is checked to see if a solution can be found. If none of the suggested solutions included below solve your particular problem, please contact your local retailer for further advice. This trouble shooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution.
- Page 13 Problem Common cause Solution Interference from equipment It is always possible that nearby equipment using same frequency using the same or similar frequency range will cause interference or signal drop-out. Try using a different channel. Ensure that there no obstructions between the transmitter and receiver.
-
Page 14: Specifications
Specifications Features: – compact and versatile wireless in-ear monitoring system – includes a transmitter and receiver – can be expanded by synchronising more bodypacks to a single transmitter – RF, AF strength, channel and frequency display – IR synchronisation function for frequency selection Transmitter base station –... - Page 15 EC Declaration of Conformity Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands We declare under our sole responsibility that the following products Article: Product name: Devine WMD-IE In ear monitor system UHF (823 – 832 MHz).
