Devine WMD 168 MKII User Manual

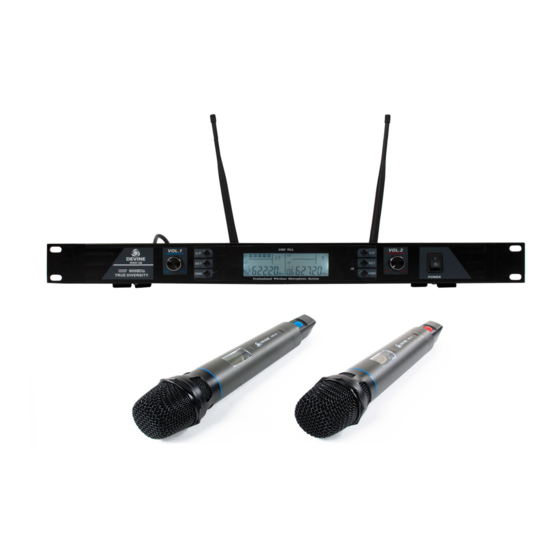

Dual wireless microphone system (612.20-631.95 mhz and 652.20-671.95 mhz)
Hide thumbs

Advertisement

Quick Links

Download this manual
WMD 168 MKII
Dual Wireless Microphone System
(612.20-631.95 MHz and 652.20-671.95 MHz)
User Manual
The information included in this user manual is subject to change at any time and without notification:
Version:
Date and author initials: 19-09-2020 RV
Revision date and author initials:
1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMD 168 MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Devine WMD 168 MKII

Summary of Contents for Devine WMD 168 MKII

  • Page 1 WMD 168 MKII Dual Wireless Microphone System (612.20-631.95 MHz and 652.20-671.95 MHz) User Manual The information included in this user manual is subject to change at any time and without notification: Version: Date and author initials: 19-09-2020 RV Revision date and author initials:...
  • Page 2 Introduction Thank you for purchasing the Devine WMD 168 MKII dual wireless microphone system. Before unpacking the box and included components, we recommend reading this user manual thoroughly to ensure that you are completely familiar with all of the functions this product has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.

  • Page 3: Safety Instructions

    WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! Safety Instructions Every person involved with the installation, operation and maintenance of this device must: - Be qualified. - Be skilled. - Have read the instructions included in this user manual. - Be sure that neither the device nor the included accessories are damaged.
  • Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 Symbol Explanation: Ensure that this device is disposed of properly. This product falls under the WEEE (Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply to all manufacturers and producers of electronic devices in the EU. Do not throw this product away with regular rubbish.
  • Page 6 It might also be the case that a licence will need to be attained to authorise the use of certain frequencies. The Devine WMD-168 MKII system operates using the 612 – 672 MHz frequency band, and therefore, may not be used freely all over the world! As such, it is essential that you are always aware of any local regulations and rules regarding the use of wireless transmitting and receiving systems.
  • Page 7 In countries that have not been included above, further specific regulations may apply: DE: Germany NL: The Netherlands In these countries, the use of frequencies 614.20 MHz to 671.95 MHz is permitted, licence free. However, the use of frequencies 612.20 MHz to 613.95 MHz is not permitted. MT: Malta In this country, no licence is required to use frequencies 614.20 MHz to 631.95 MHz, 654.20 MHz to 662.95 MHz, and 670.20 MHz to 671.95 MHz.
  • Page 8 8 to 20 hours depending on battery quality. The batteries included with this system are intended for testing the microphones only. After testing, Devine recommends replacing the included batteries with batteries made by brands such as Duracell before using the microphones for any performances.
  • Page 9 The volume for each microphone can be conveniently adjusted via the front panel of the receiver. Devine recommend that, wherever possible, the XLR outputs of the receiver are used, since this ensures superior signal transfer and a minimum chance of error or signal distortion. An unbalanced 6.35 mm jack cable has been included.
  • Page 10 Synchronising the Microphones and Selecting the Correct Frequency The microphones are usually set to a specific frequency, as is the receiver and to ensure that they function correctly with one another, they must be set to the same frequency. On the receiver, a specific channel and corresponding frequency can be set. Use the UP and DOWN buttons to select the frequency and channel.
  • Page 11 Volume Control On the front of the receiver, two volume control knobs have been fitted. These are used to adjust the microphone levels. If the sound is distorting while the volume controls have been set to an optimum level, request that the microphone technique of the performer is altered for a cleaner result. Microphone Display Information As shown in the image above, the information for both microphones is included on one display.

  • Page 12: Technical Specifications

    Technical Specifications Microphone: - frequency: mic 1: 612.20 – 631.95 MHz mic 2: 652.20 – 671.95 MHz - channels: 160 (2 channels, choose from 80 frequencies per microphone) - oscillation mode: PLL - frequency stability: +/- 10 ppm - modulation mode: FM - max.
  • Page 13 EC Declaration of Conformity Devine Pro Audio and Studio Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This declaration of conformity is issued under the sole responsibility of the manufacturer. Model number: Model name: Devine WMD-168 MKII Dual Wireless Microphone System...
